15

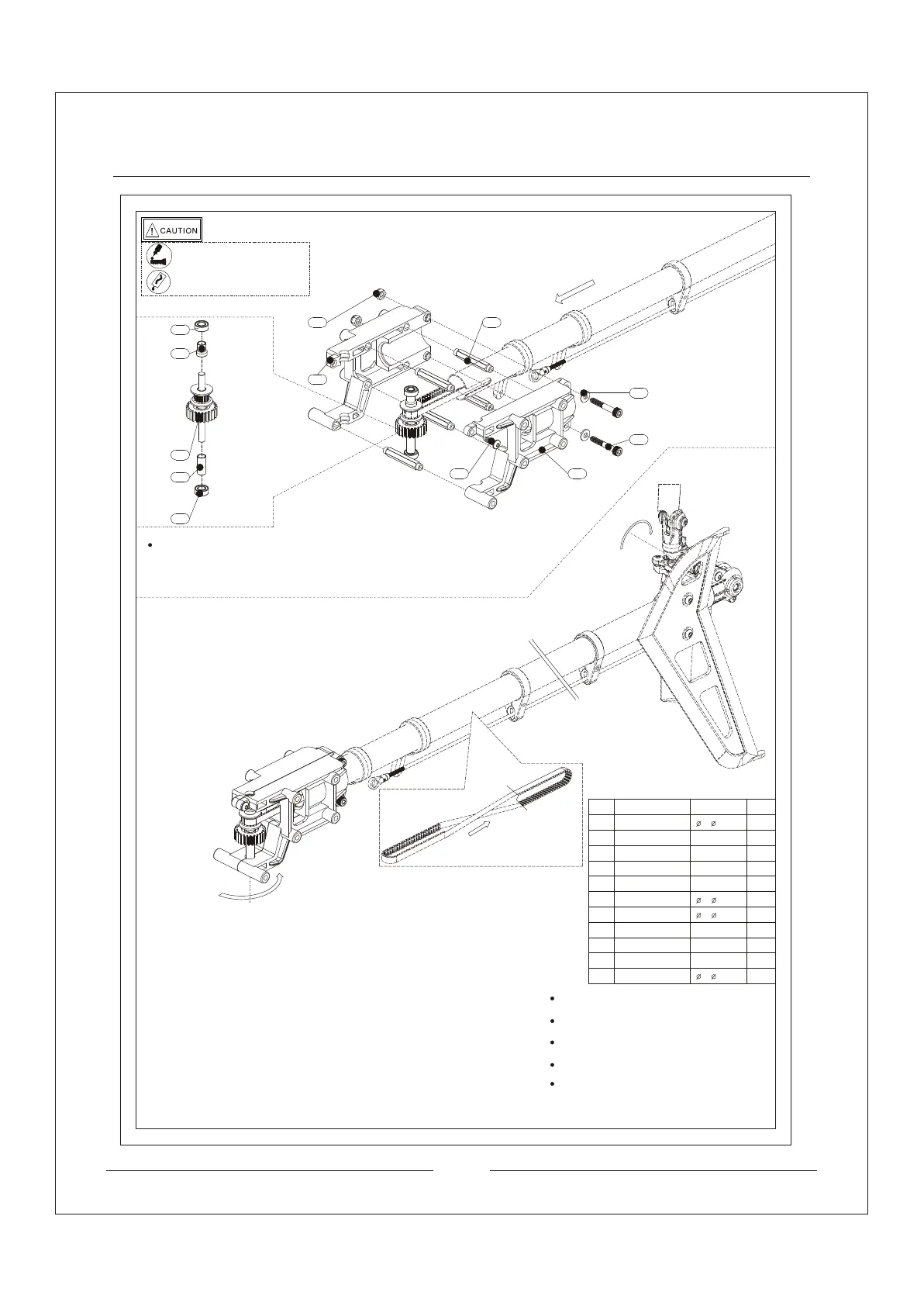

Install the spacers to the gear shaft and main shaft
upper & lower parts.
Parts 073 is consist of tail drive pulley shaft, tail
drive gear, tail drive pulley, tail drive pulley cap,
which was installed and locked by the factory.
Twist the tail drive belt with an agnle 90 and locked
by secondary tail drive gear.
Use mounting rods to lock the secondary tail drive
gear and tail boom via left and right tail boom mount.
Before screwing, please adjust the tightness of the
tail drive belt.
Make sure all gears rotates in the direction shown
in the left diagram after the completed installation.
071
077
073
072
071
Rotation direction
inside the Tail Boom
Secondary Tail Drive
Gear rotation direction
Tail blade
roatation direction
003
070
069037
074051
075
1pcs
072
ST3*10
Hexagon Socket
Head Screw
051
037
1pcs
2pcs
003
2pcs
071
2pcs
069
1pcs
070
2pcs
074
073
075
077
Spacer
3* 7*0.8
Nylon Lock Nut
M3
Tail Boom Mount, Left
Hexagon Socket
Head Bolt
M3*18
Trust Bearing
4* 8*3
Bushing
4* 5*11.4
Secondary Tail
Drive Gear
Mounting Rod
Tail Boom Mount,
Right
Spacer
4* 5*7.5
1pcs
1pcs
1pcs
1pcs
Apply amount of T43
thread-locking fiuld
Apply little amount lubricants
No
Description
Qty
need
Specification
To Next Page
