DTS XR 5 WASH User Manual

16
12- HIDDEN MENU
For technical personnel only.
To operate this menu:
-Connect the projector to the DMX controller (DMX SIGNAL MUST BE CORRECTLY RECEIVED)
- Reset the Xr5 (reset from the MENU, not from the DMX controller!).
- While reset is running, press the MENU and ENTER keys at the same time.
Electronic calibration of the motors.
Reset EEPROM (Reset all settings. ATTENTION: by pressing this key you must
repeat all previous calibrations)
Exit from hidden menu.
15
Up-DownENTERUp-Down
ES.
ENTER
Up-DownENTER
Up-Down
ES.
ENTER
Up-DownENTERUp-Down
ES.
ENTER
Up-DownENTERUp-Down
ES.
ENTER
Up-DownENTERUp-Down
ES.
ENTER
Up-DownENTERUp-Down
ES.
ENTER
Up-DownENTER
ES.
ENTER
Up-DownENTER
ES.
ENTER
Up-Down
Up-Down
ENTER
Up-DownENTERUp-Down
ES.
ENTER

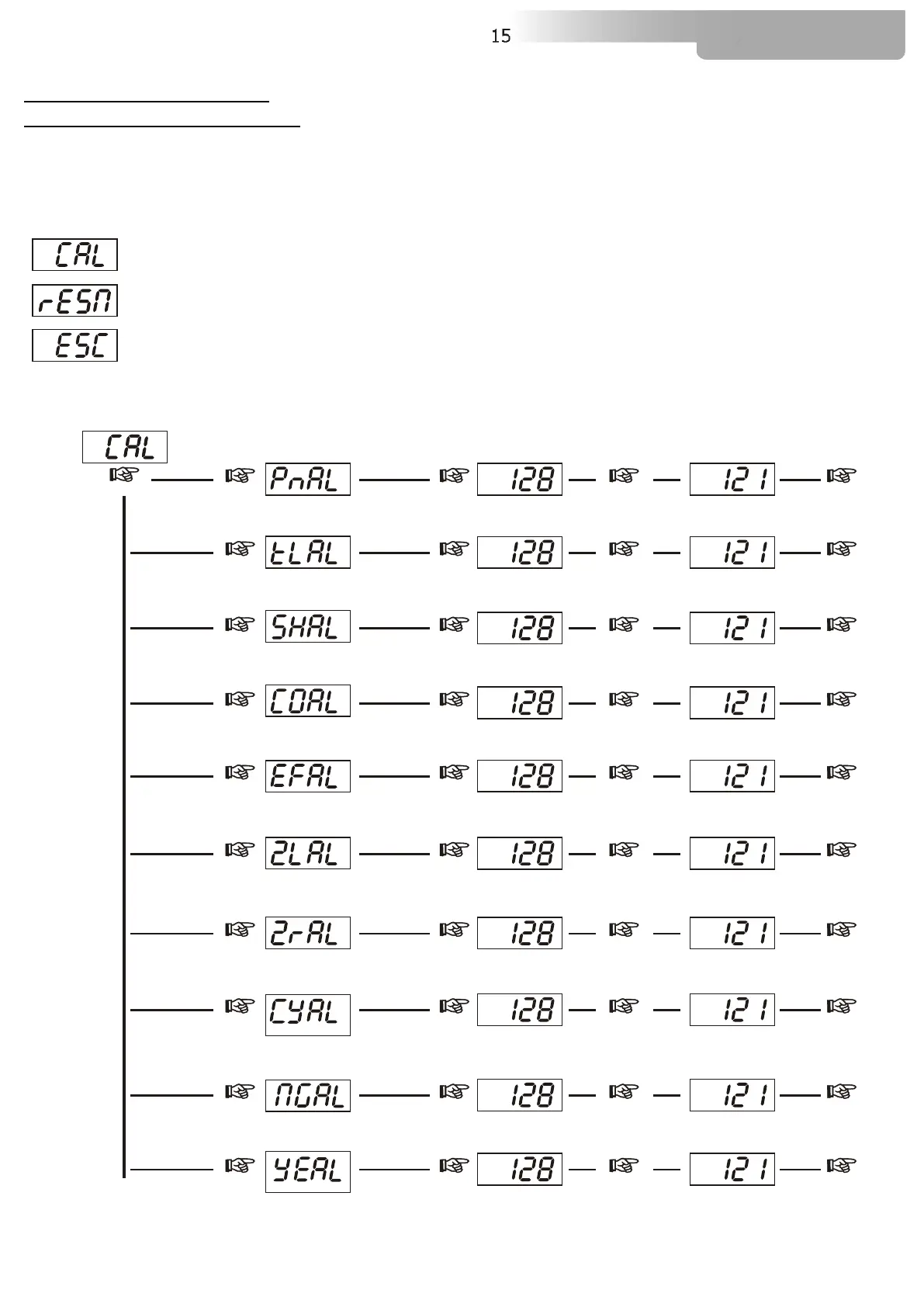

PAN ALIGNMENT
To align pan movement
TILT ALIGNMENT
To align tilt movement
SHUTTER ALIGNMENT
To align shutter
EFFECT ALIGNMENT
Effect alignement
ZOOM 1 ALIGNMENT
To align zoom1
colour WHEEL ALIGNMENT
To align colour wheel
CYAN ALIGNMENT
To align cyan colour
MAGENTA ALIGNMENT
To align magenta colour
YELLOW ALIGNMENT
To align yellow colour
Up-DownENTERUp-Down
ES.
ENTER
ZOOM 2 ALIGNMENT
To align zoom 2
ARC 1200
XR 5 WASH
