DTS XR 5 WASH User Manual

4
1- TECHNICAL FEATURES
The XR 5 Wash is fitted with a Philips MSD 250/2 discharge lamp
(GY9,5 lampholder base), with a colour temperature of 8500 °K and a luminous flux of
18,000 Lumens.
Average lifespam is 2000 hours, with replacement recommended before 2200 hours
Other recommended lamps: Osram HSD 250/2, GE CSD 250/2.
The unit incorporates:
Power supply
Electromagnetic ballast: 230 V (50/60 Hz) standard. On request 110 V 50/60 Hz.
Power consumption 350 W
Remote Lamp on/off via DMX
Operating ambient temperature -10° / 40°
Weight
20 Kg
Motorized zoom (13°-23°), rotating and indexable beam shaper (0°-170°), frost filter, 2
colour conversion filters (3.200°K and 5.600°K), CMY colour generation + a colour wheel (6
dichroic filters + open, with linear selection, and electronic or electromagnetic ballast.
Optical group
Fresnel lens Ø 150 mm (Borosilicate dichroic parabolic reflector)
Zoom
Motorized zoom (13°-23°)
Dimmer / shutter / strobo
Linear dimmer - Shutter - Strobe from 0,85 flash/sec to 10 flash/sec
Colours
CMY color generation system with 3 palettes for gradual and linear insertion +
colour wheel (6 colours + open). Color change with blackout sync
Effects
Rotating and indexable beam shaper (0°-170°)
Colour conversion filters
3.200°K and 5.600°K
Pan / Tilt
Pan 540° (3,9 sec.) Tilt 270° (2,6 sec.) 16-bit resolution
16 DMX channels
Connections
4 XLR connectors (In and Out) with 3 and 5 pins.

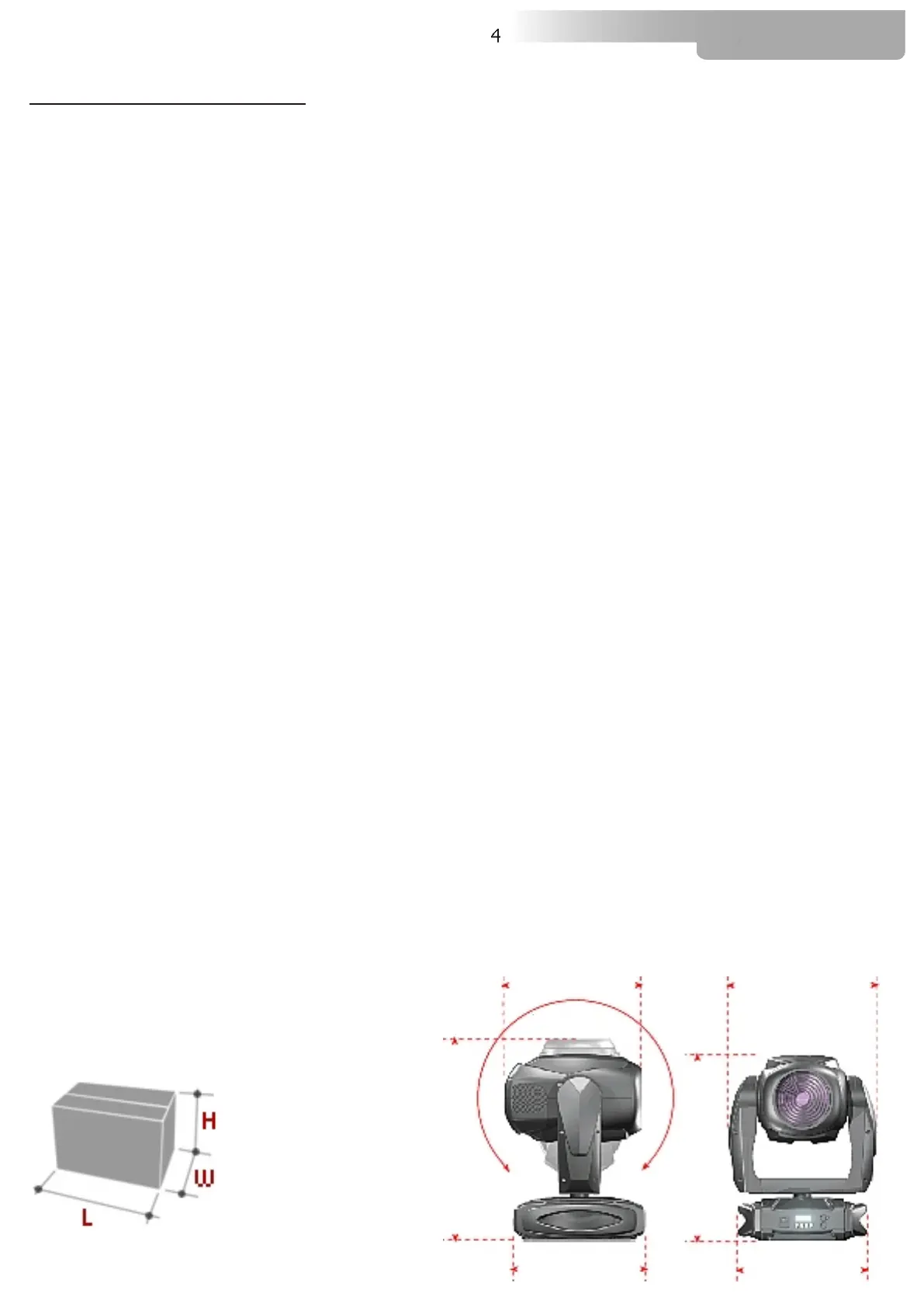

Packing Dimensions
(HxWxL)
550 x 440 x 880 mm
Weight
27 Kg
5
4
0
mm
027 °
4
5
mm
1
408 mm
3
3
m6 m
5 0
m
m
5
4
23 mm
ARC 1200
XR 5 WASH
