6

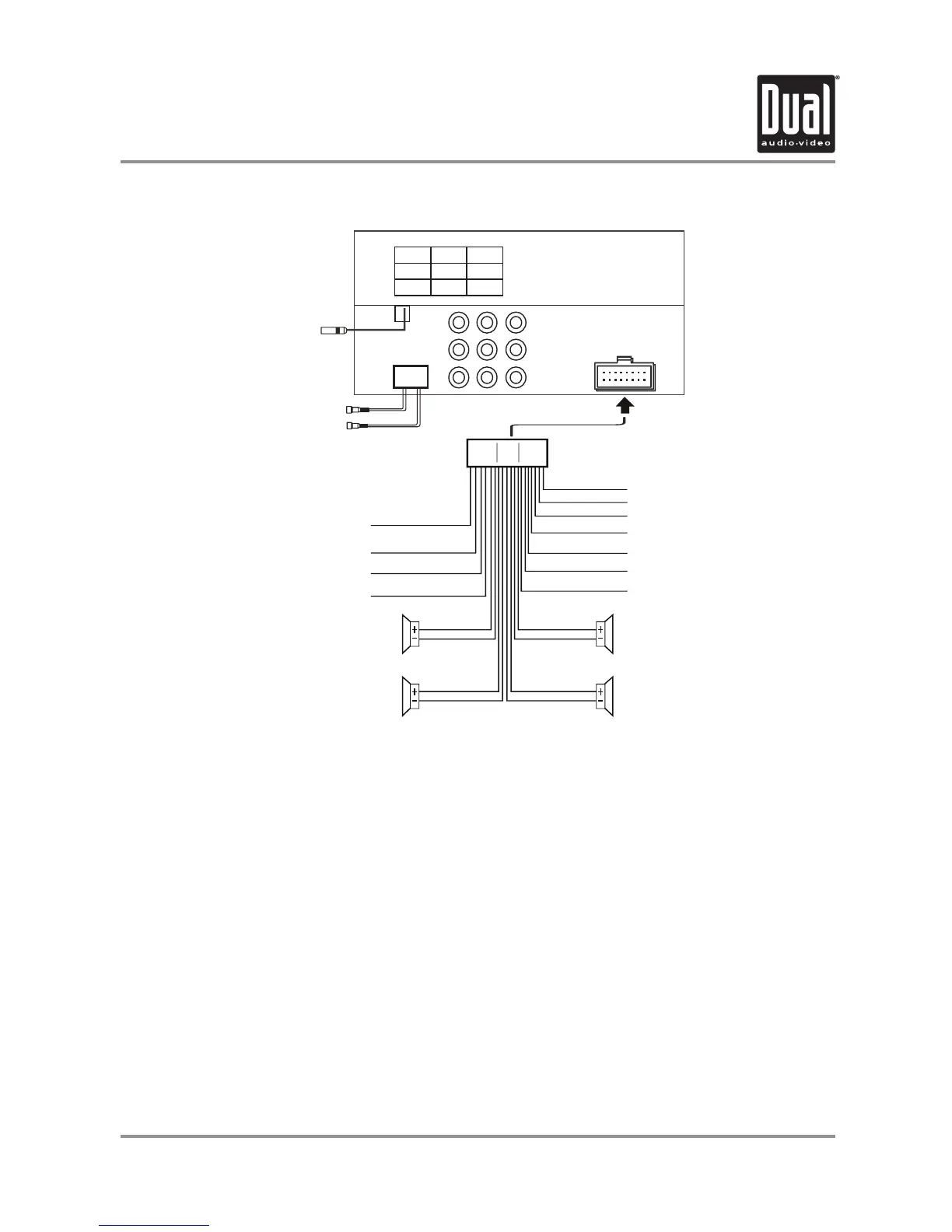

Wiring Diagram - Inputs/Outputs
DV605 INSTALLATION
Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause
damage. The unit uses (1) 15 amp ATM mini style fuse located inside the in-line filter box.
Wiring Notes:
Subwoofer output
The Subwoofer preamp audio output (black jacket with green RCA) is active in all audio modes.
Rear camera input
A rear view camera (not included) can be used with the Camera input.
RADIO ANTENNAJACK
V-IN
L-IN RL
RR FR
FL
R-IN
V-OUT2 V-OUT1
SUBWOOFER GREY
REAR CAMERA INPUTYELLOW
SWC - GND (BLACK)
REVERSE
(B-) PARKING BRAKE
ILLUMINATION
REMOTE TURN - ON
SWC1 (BROWN)-
SWC2 (BROWN/BLACK)-
ORANGE
RED
ACC
B+
GROUND
POWERANTENNA
YELLOW
BLACK
BLUE
WHITE
GREEN
WHITE / BLACK
GREEN / BLACK
GREY
VILOET
GREY / BLACK
VIOLET / BLACK
ORANGE / BLACK
BLUE / BLACK
PINK
REAR RIGHT
CHANNEL SPEAKER
FRONTRIGHT
CHANNEL SPEAKER
FRONTLEFT
CHANNEL SPEAKER
CHANNEL SPEAKER
REAR LEFT
