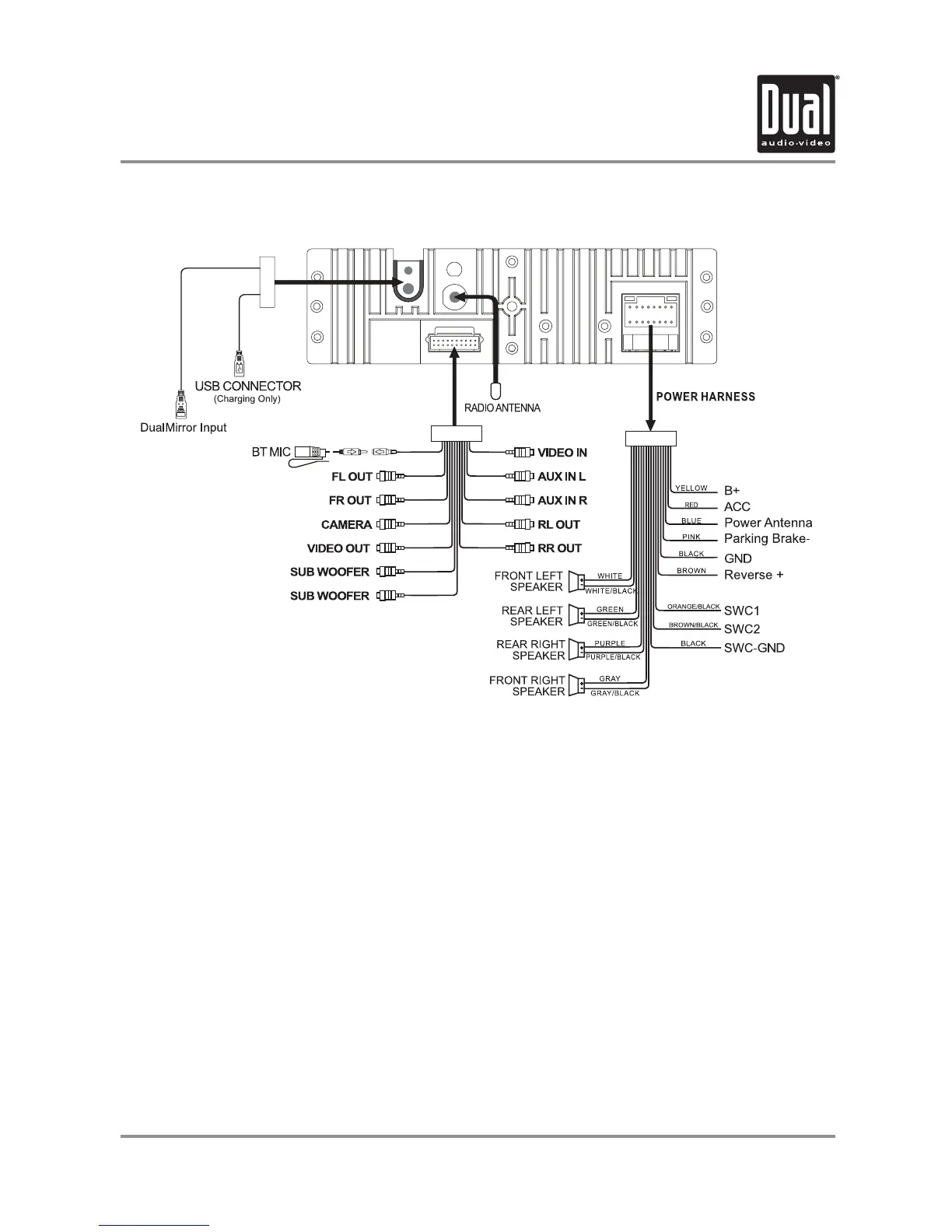

Dual DV714BH - Wiring Diagram

6
Wiring Diagram - Inputs/Outputs
DV714BH INSTALLATION
Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause
damage.
Wiring Notes:
Subwoofer output
The Subwoofer preamp audio output (blue jacket with black RCA) is active in all audio modes.
Rear camera input
A rear view camera (not included) can be used with the Camera input.
Steering wheel interface input
The steering wheel interface feature is built-in and is programmable. Please reference the included Steering
Wheel Interface Operation printed insert for programming assistance.
Connecting a device
DualMirror technology allows you to mirror the screen of select Android smartphones as well as iPhone, iPod
and iPad devices.
