Dual IPLUG XD642W - Wiring Diagram

3
XD642W INSTALLATION

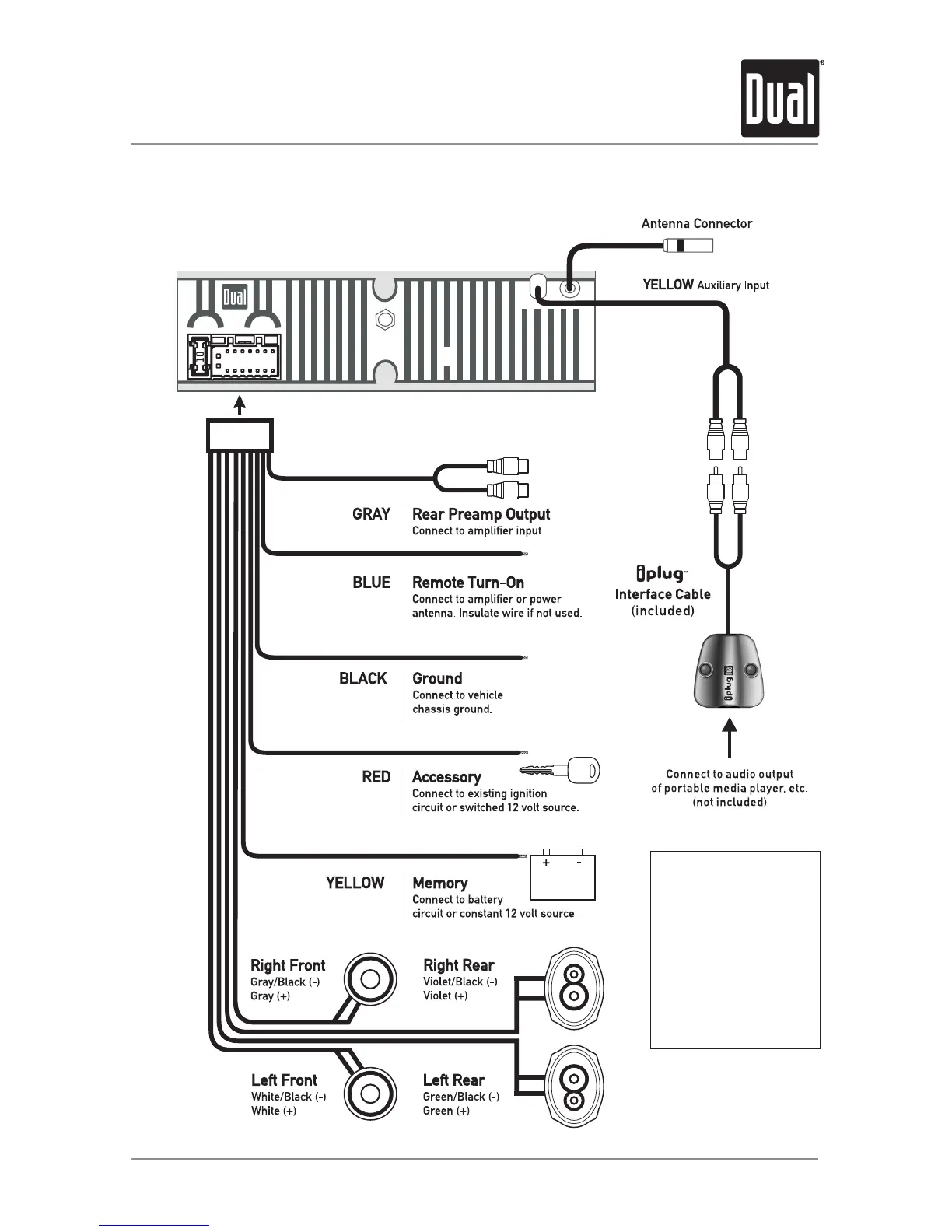

Wiring Diagram
FUSE
When replacing the fuse,
make sure new fuse is the
correct type and amperage.
Using an incorrect fuse
could damage the radio.
The XD642W uses one
10 amp ATM fuse located
beside the wiring connector.
