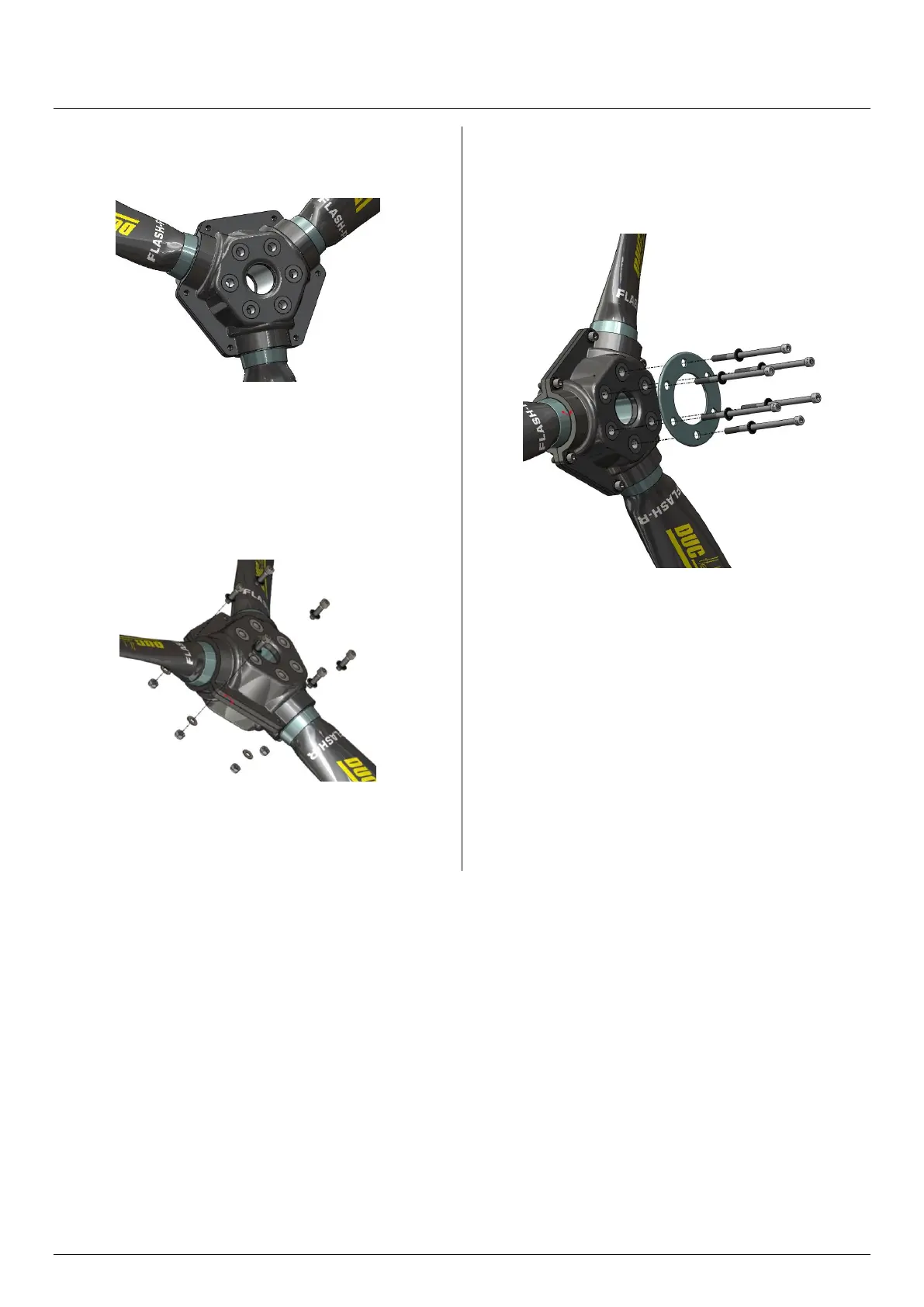

STEP
Place the front half-hub (metal insert with small hole)
on the set to fit with the blade foots and internal spacer.
STEP
From the front hub, set up the 6 screws and washers
for hub assembly. At the rear, place washers and lock
nuts.
Perform initial moderate tightening.
STEP
Place the hub clamping washer on the front of the
propeller hub (logo side).
Be sure the direction of the clamping washer
(rounded edge outwards).
Place the 6 fixing screws and their washer.
In the case of pin contact washers, the pins are
oriented towards the screw head.
