Fuses

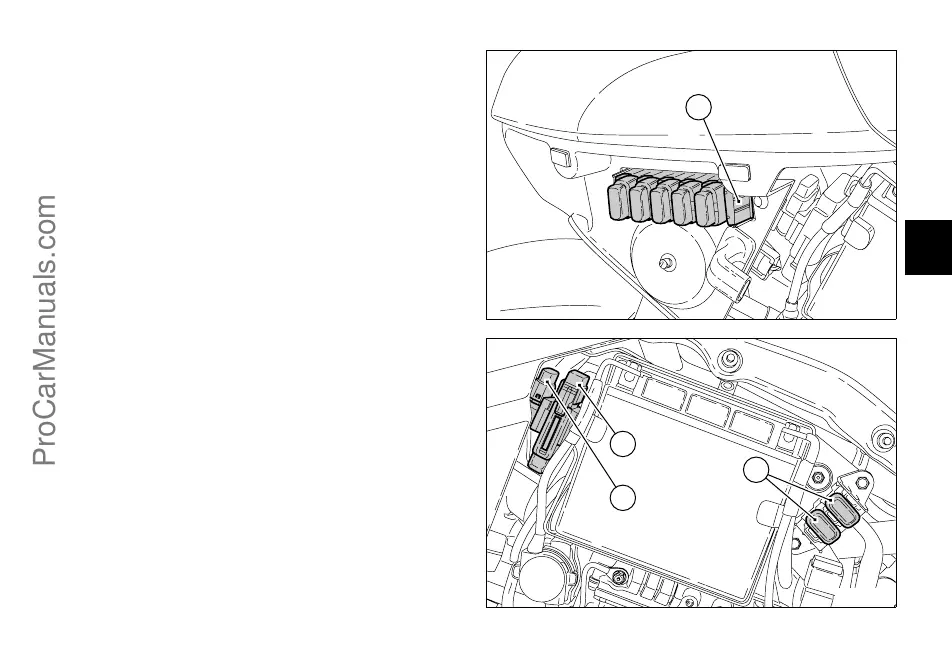

The main fuse carrier (1, fig. 76) is under left side fairing
(see page 56). The fuses can be accessed by removing the
safety gaiter.
Other than the main fuse carrier, there are other fuses that
are positioned at the sides of the battery.
Two fuses (2, fig. 77) on the right-hand side of the battery
protect the injection system and the ECU relay.
Fuse (3) protects the electronic regulator while fuse (4)
protects the system of the side stand sensor.
1
fig. 76
2
4
3
fig. 77
