D CH Users Manual
U
III Installation and connection

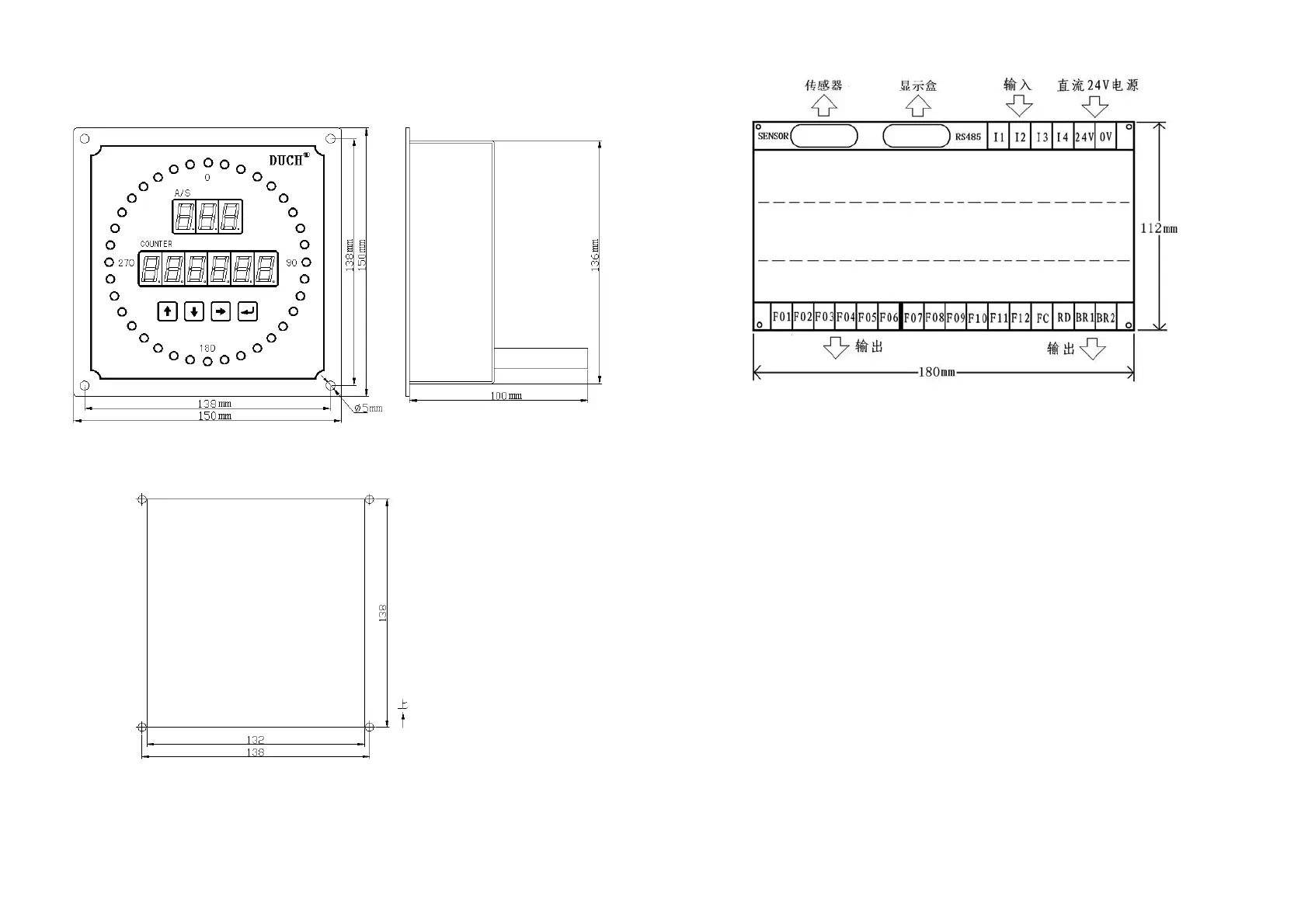

3.1 Installation dimensions
Outline dimension ：
Hole dimension：
5
3.2 Parts connection diagram
Caution：
1. Make sure the voltage and the poles.
2. Make sure the plug inserted into the socket totally and in correct way. Leave the wire
a suitable length for disassembly.
3. To avoid the controller being interfered, please eliminate the noise at heavy load and
the inductance loading terminal.
6
