Oven Controls — Solid State Digital Controls

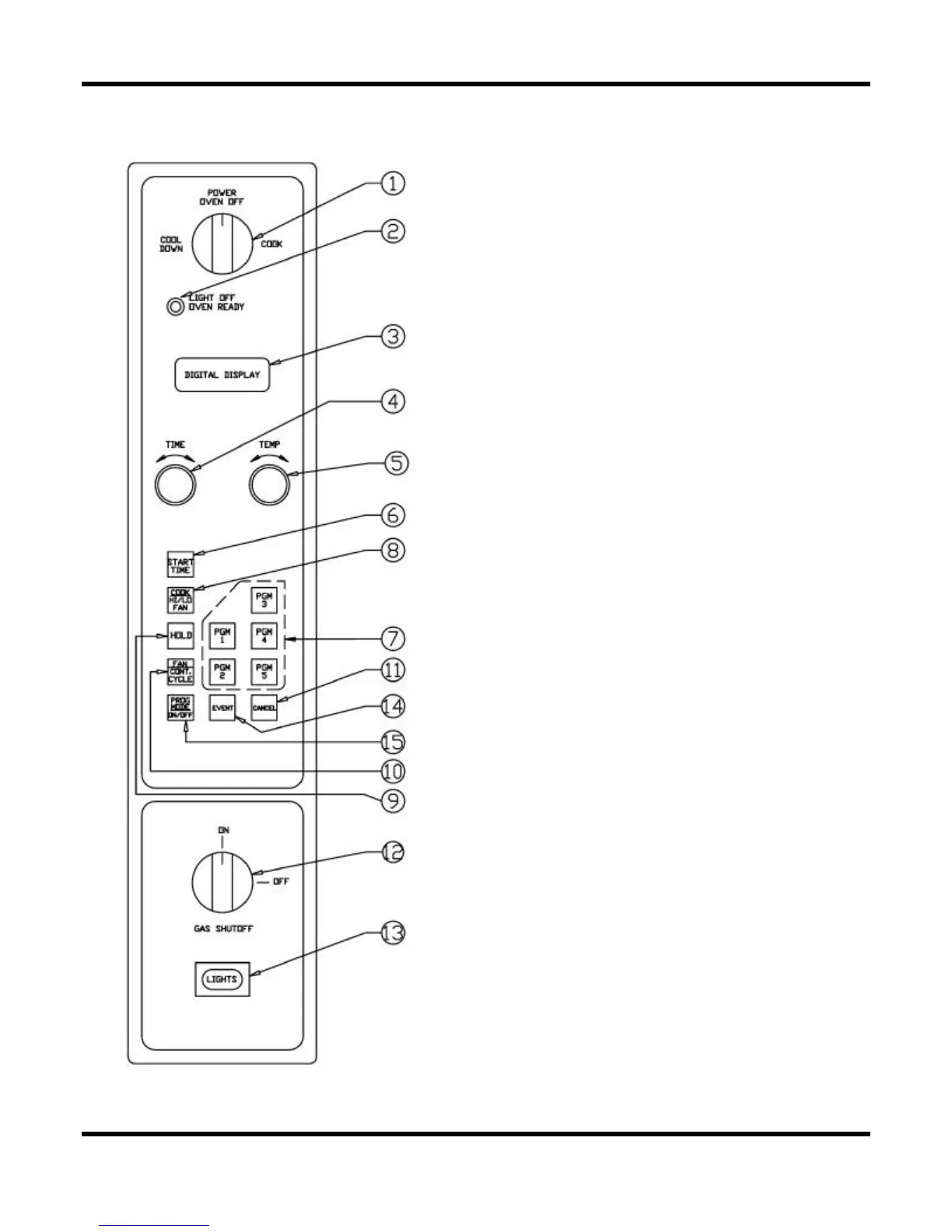

• 1. The Power Switch - Controls power to ON or
Cool Down function.
• 2. The Indicator Light - When lit indicates burners
are operating. When the light goes out, the oven
has reached its cooking temperature.
• 3. The Digital Display - Indicates time and/or
temperature.
• 4. The Time Dial - Sets countdown timer for cook
cycle.
• 5. The Temperature Dial - Sets cooking temperature.
• 6. The Start Time Button - Initiates timing cycle.
• 7. The Program Button - 5 individual time and
temperature programs. Operator programmed.
• 8. The Cook/HI-LO Button - Sets fan speed to high
or low.
• 9. The Hold Button - Allows setting of hold time and
temperature.
• 10. The Fan Continuous/Cycle Button - Allows
setting of fan to run continuously or turn on and
off with the burners during the cooking cycle.
• 11. The Cancel Button - Cancels preset time and/or
temperature.
• 12. The Manual Gas Shut Off Valve - Turns gas
supply to oven controls on or off when service is
required.
• 13. The Light Switch (optional) - Controls interior
lights.
• 14. The Event Button - Used for programming oven
functions which will be chained into one cooking
routine.
• 15. The Program Mode - ON/OFF Button - Switches
from Operating to Programming Mode and back.
