“ZX” Controller
Oven Controls — Solid State Digital Control
with Rack Timer Capability

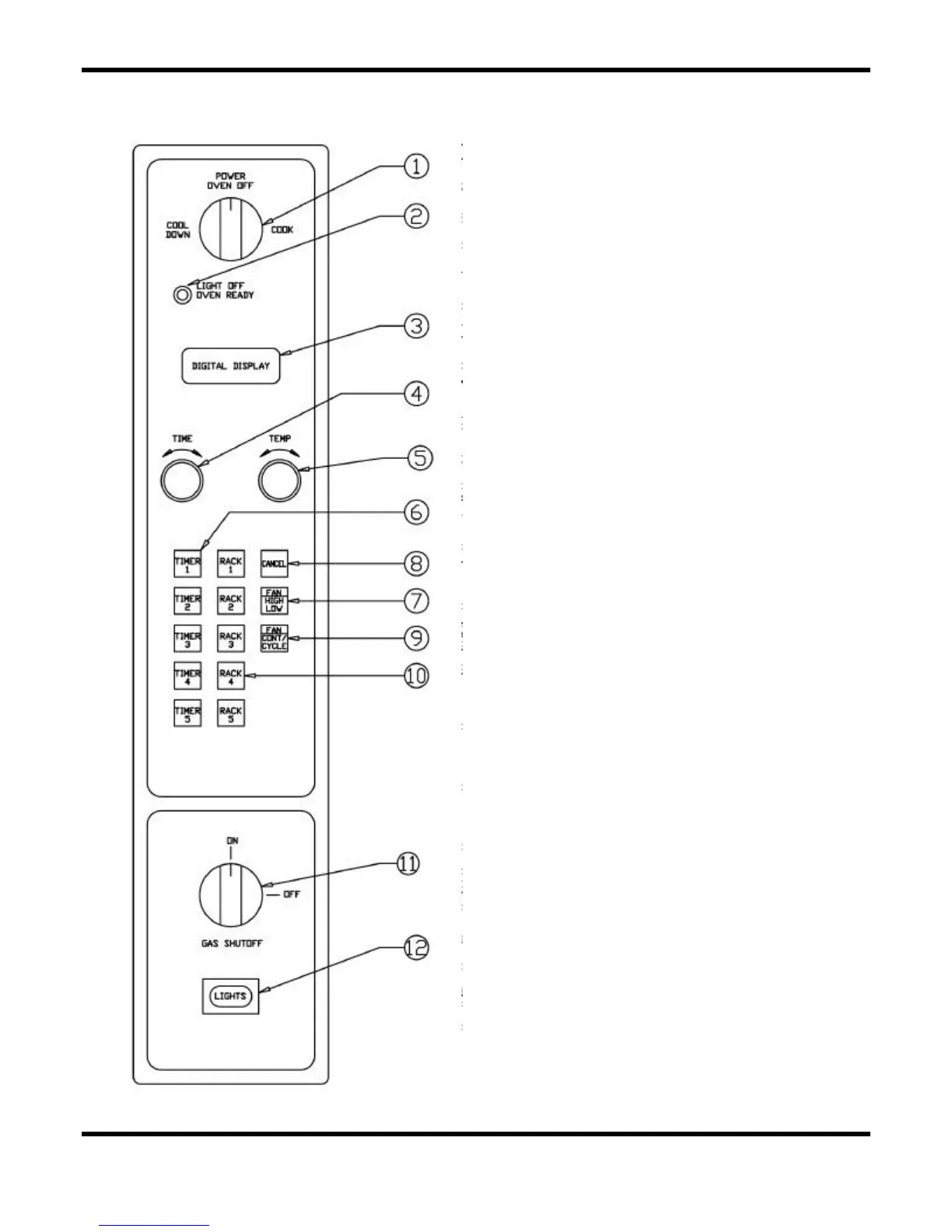

• 1. The Power Switch - Controls power to ON or
Cool Down function.
• 2. The Indicator Light - When lit indicates
burners are operating. When the light goes
out, the oven has reached its cooking
temperature.
• 3. The Digital Display - Indicates time and/or
temperature.
• 4. The Time Dial - Sets countdown timer for
cook cycle.
• 5. The Temperature Dial - Sets cooking
temperature.
• 6. The Timer Selector Buttons - Used to select
which timer will be used for the product to be
cooked.
• 7. The Fan HI-LO Button - Sets fan speed to high
or low.
• 8. The Cancel Button - Cancels preset time and/
or temperature.
• 9. The Fan Continuous/Cycle Button - Allows
setting of fan to run continuously or turn on
and off with the burners during the cooking
cycle.
• 10. The Rack Selector Buttons - Allows setting
of fan to run continuously or pulse on and off
during the cooking cycle.
• 11. The Manual Gas Shut Off Valve - Turns gas
supply to oven controls on or off when service
is required.
• 12. The Light Switch (optional) - Controls
interior lights.
