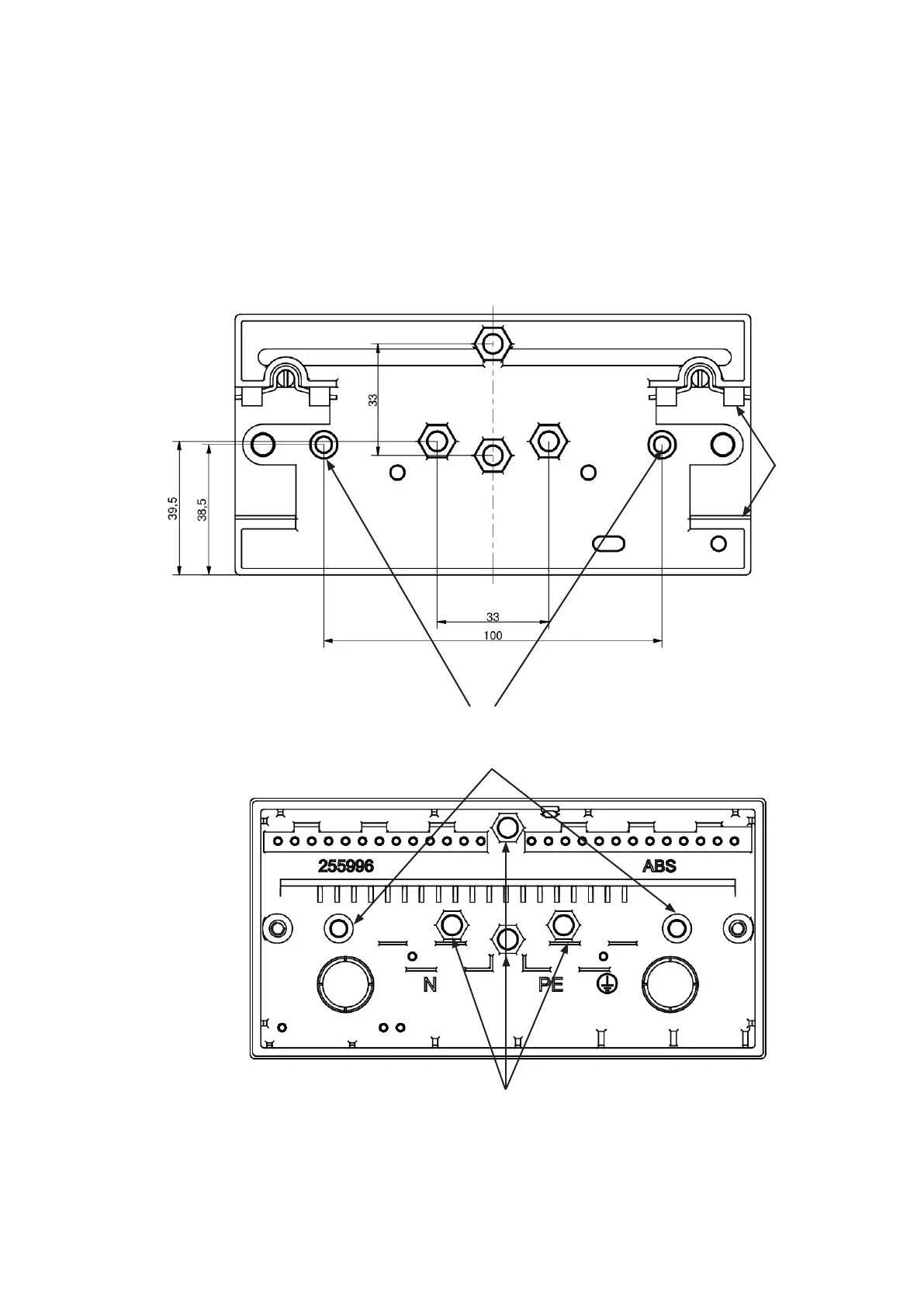

MPA 41xx PF installation

MPA 4112 PF installation options:

- Direct screw connection of the

base to the installation surface

Break o installation holes using, for

example, a suitable screwdriver or

bore them using a drill 4.2 mm (M4)

or 5.5 mm (M5).

- Hat rail mounting (locking the

base into place on a hat rail)

Mounting bores

Hat rail

mounting

Screw M4

Screw M5

Attention: Use plastic screws only!
