Info display
▶
The information display is activated out of the operation display (not during automatic parameter
setting).
▶
The information display allows you to see the ame quality, the resettable runtime meter, the resettable
start counter and the switching cycles counter.
▶ This mode is quit after 60 seconds due to a timeout if you do not press any key within this time period.

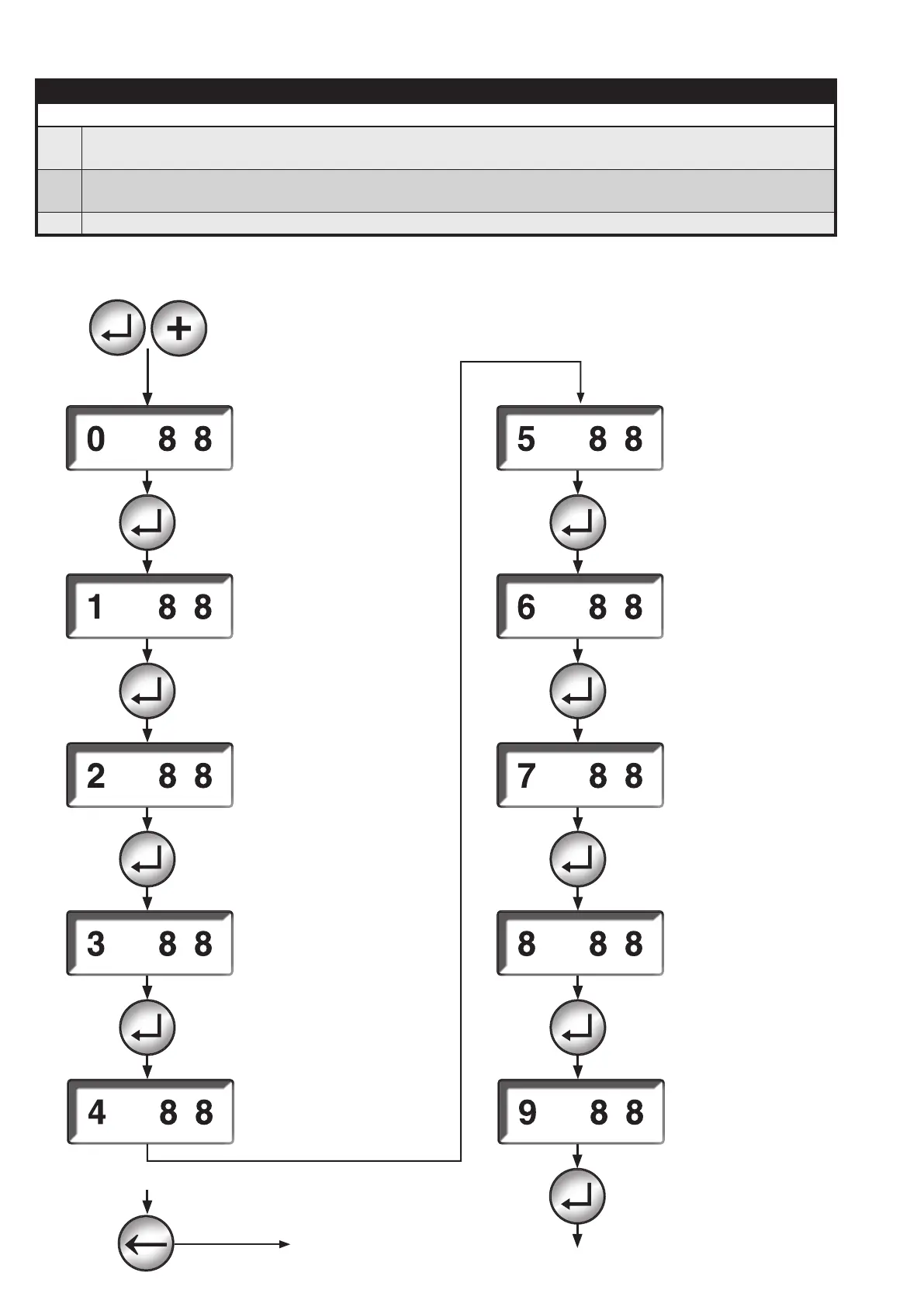

Info display
Display of
ame quality
Max 58
< 50 ashing
see also:
Annex - Flame detector
Display of the resettable runtime
meter ame and HT
10,000th position
Display of the resettable runt-
ime meter ame and HT
100th position
Display of the resettable runtime
meter
Flame and HT
1st position
Display of resettable ame start
counter
10,000th position
Display of resettable ame start
counter
100th position
Display of resettable ame
start counter
1st position
Display of the switching cycles
counter watchdog relay
10,000th resolution
Values greater than 999 999
are displayed as "--"
Display of switching cycle
counter V1
10,000th resolution
Values greater than 999 999
are
displayed as "--"
Display of switching cycle
counter air valve
10,000th resolution
Values greater than 999 999
are
displayed as "--"
Back to operation display
from each info display state
Back to operation display
To Next Page
