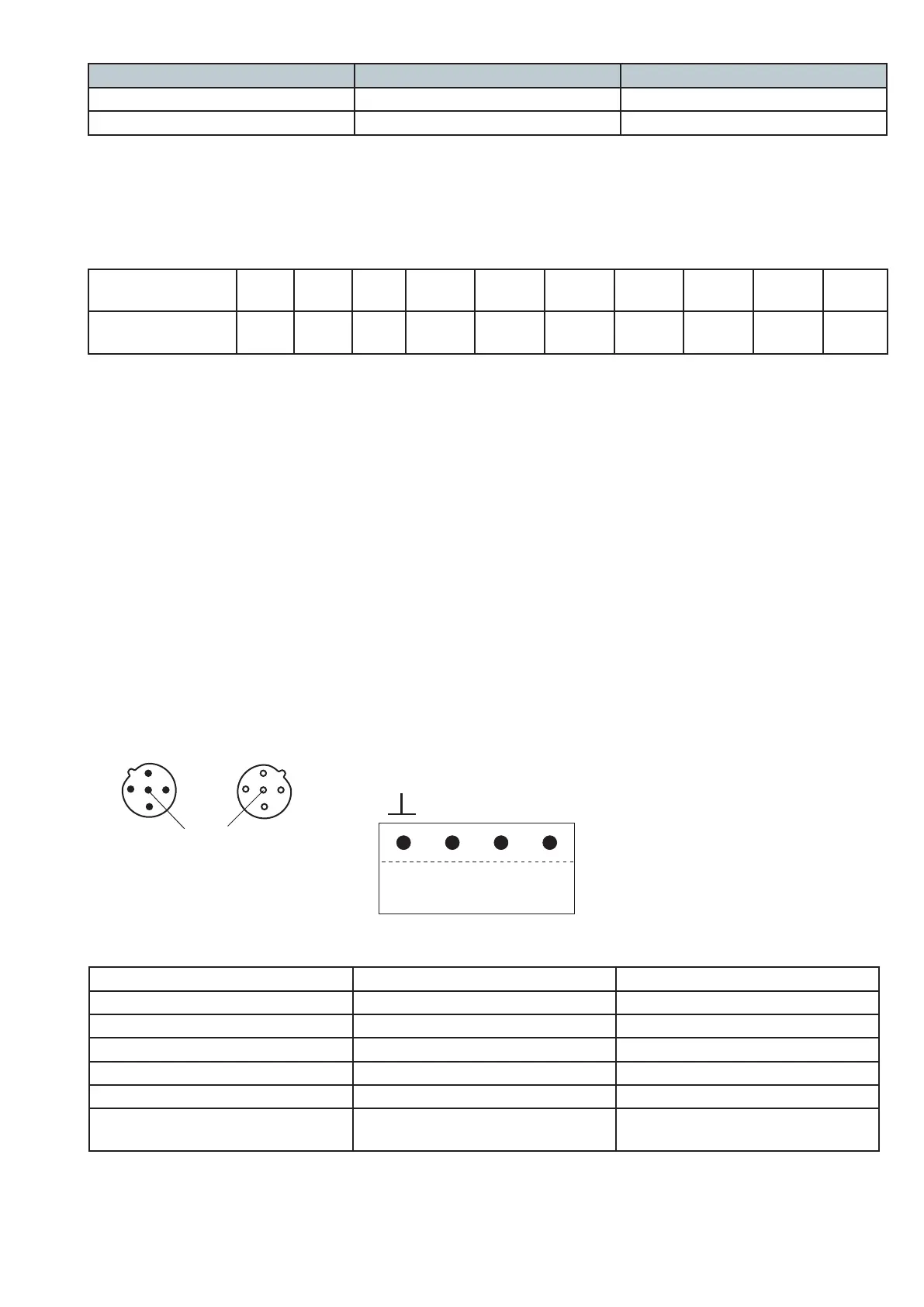

Line lengths
Designation Line length Electrical data
Probus DP Max. 1200 m Galvanically isolated 4kV
Modbus Max. 1000 m Galvanically isolated 4kV
Supported baud rates
Probus
The following table is only valid for line type A to EN 50170
Transfer speed
kBit/s
9.6 19.2 45.45 93.75 187.5 500 1500 3000 6000 12000
max. line length
in m
1200 1200 1200 1200 1000 400 200 100 100 100
Modbus
9600 bauds, 19200 bauds, 19200
bauds and 57600 bauds
The baud rate can be changed during
operation by means of the function
code 0x41 and is permanently saved in
the slave.
The relative parity bit can also be
dened. None, Even and Odd are sup-
ported.
Default values (upon delivery) are
19200 bauds and Even Parity.
Pin assignment MPA 4112 PF
(M12–5 B-coded)
Pin Socket
1
2
3
4
3
1
2
4
5
5
Bus termination
A termination resistor is required on
the rst and the last device of the bus
structure.
Alternatively to internal termination
(see above), an external bus termina-
tion resistor can be connected instead
of another bus cable.
The bus cable shielding is to be con-
nected to PE to avoid electromagnetic
radiation.
Pin no . MPA 4112 PF Pin no . MPA 4112 PF Signal
1 VCC +5 V supply for bus termination
2 A Data line minus (A conductor)
3 Earth
4 B Data line plus (B conductor)
5 - not used
Thread - Shielding (earth connection) recom-
mended
VCC
B A
BusIN/OUT
Pin assignment MPA 4122 PF
