Printed in Germany • Edition 04.18 • Nr. 271 958

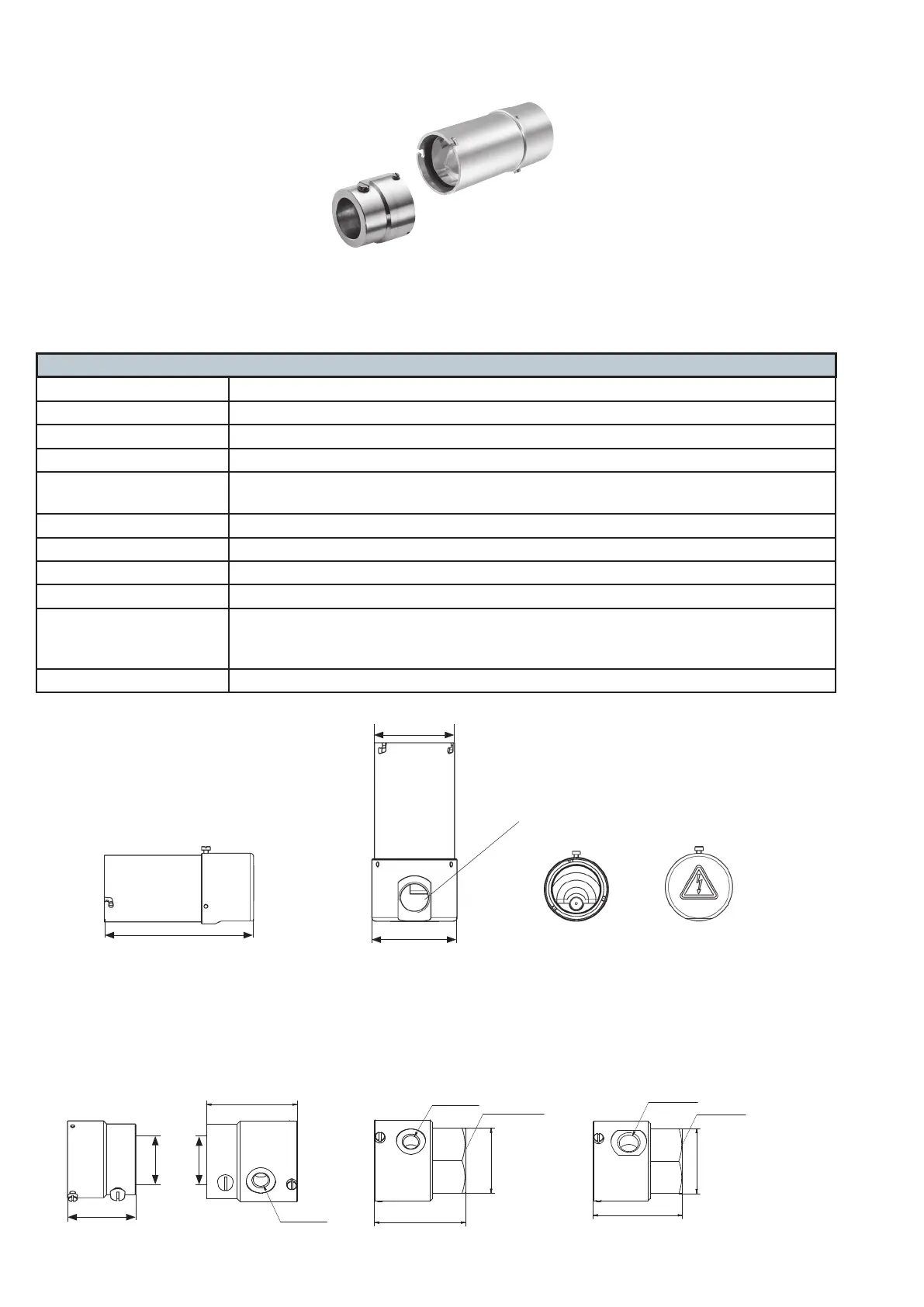

UV 41 (HE)
The UV 41 (HE) is a ame detector
with UV tube in metal design for high
mechanical stress.
The ame detector is connected to the
ionisation input of the MPA 41xx PF
and is suitable for intermittent opera-
tion.
The adapter UV4x-EM1/x must be
used for mounting the UV 41 (HE).
Technical data
Dimensions
UV 41 (HE)
UV 4x EM 1/x Adapter
UV 41 General
Rated voltage 230 VAC -15 %...+10 %
Frequency 50…60 Hz
Power consumption < 1 W
Protection type IP54
Ambient temperature -40 °C ... +60 °C
-40 °C ... +80 °C with reduced lifetime of the UV tube
Storage and transport -40 °C ... +80 °C
Humidity DIN 60730-1, no dewing admissible
Lifetime 10,000 operating hours (design (HE) reduced lifetime)
Mounting position as desired
Dimensions in mm Diameter: 44.5 mm
Length: 94 mm
Length with UV4x-EM1: approx. 128-143 mm
Max. line length 10 m
M16x1.5
94
ø 44.5
ø 42
39.5
28.5
50
50
36
50
36
28.5
G 1/8"
EM 1/3 EM 1/4
EM 1/6
EM 1/5
EM 1/7
EM 1/8
EM 1/9
1/4"
NPT
1/2"
NPT
G 1/8"
G 3/4"
