µP Automatic burner
control system
MPA 41xx PF
Automatic burner control system for
high-speed burners with fast On/O
switching (pulse ring)
Description
Microprocessor-controlled automatic
burner control system for the intermittent
operation of high-speed burners with fast
On/O switching (pulse ring).
The program sequence and times can
be customised by setting software pa-
rameters.

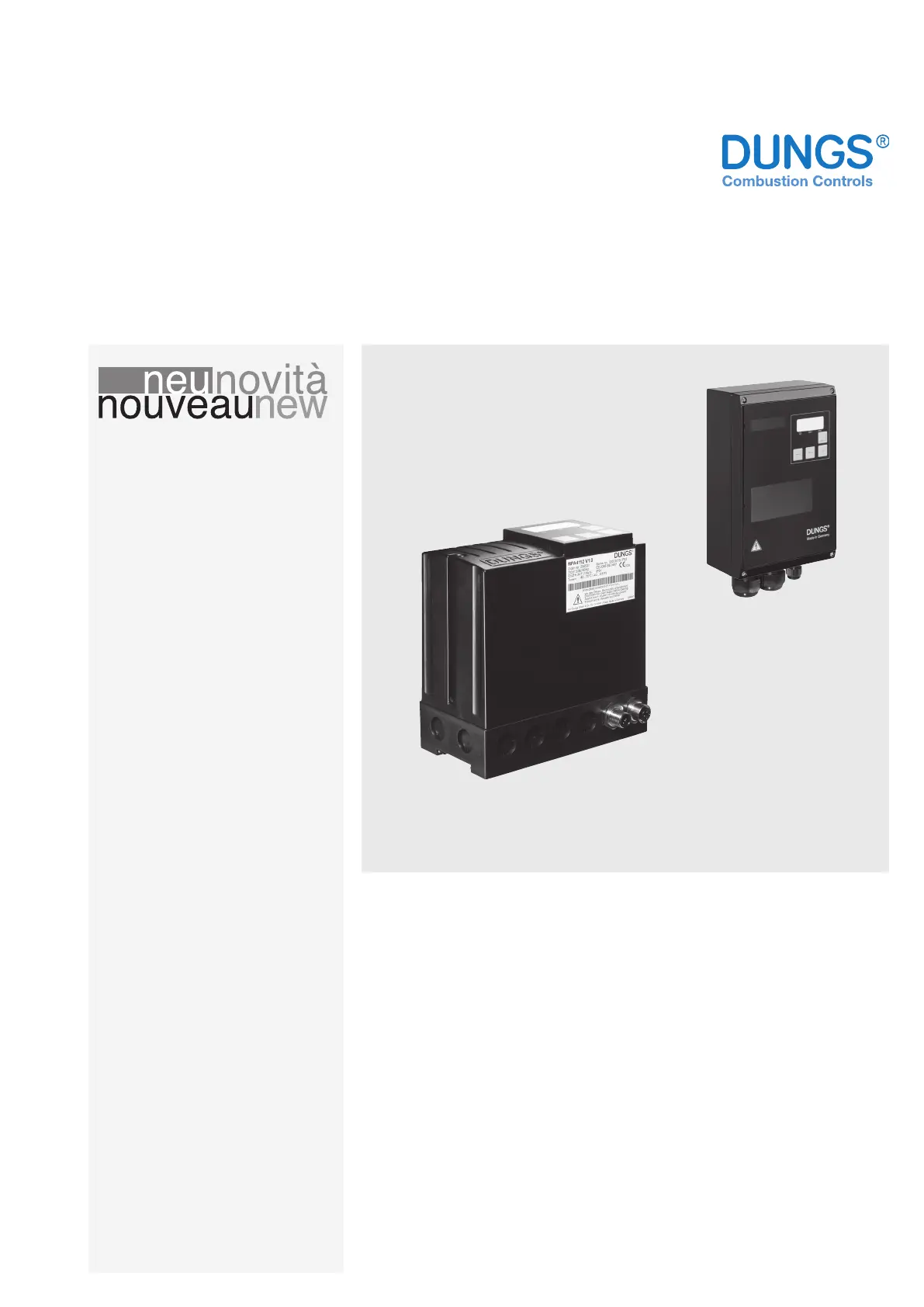

Versions
• MPA 4112 PF with integrated display
• MPA 4122 PF
with metal housing
and integrated display
Application
For high-speed burners with fast On/O
switching (pulse ring). In particular for
industrial thermoprocessing equipment
to EN 746-2.
Approvals
EC type-examination certicate accord-
ing to the EC gas appliances directive:
MPA 41xx CE-0085BU 0487
EC type-examination certicate accord-
ing to the EC Pressure Equipment Direc-
tive:
MPA 41xx CE0036
Suitable for applications up to SIL 3.
Meets the requirement according to IEC
61508 (2nd Ed. 2011)
Certied by TÜV Süd
CSA certied product according to CSA
22.2 (MPA 4112 PF)
UL Recognized Component per UL 372,
UL 1998 (MPA 4112 PF).
Printed in Germany • Edition 04.18 • Nr. 271 958
• Automatic burner control system
for pulse ring applications
• Fast On/O switching
• High number of switching cycles
possible
• High temperature operation pos-
sible
• Congurable
