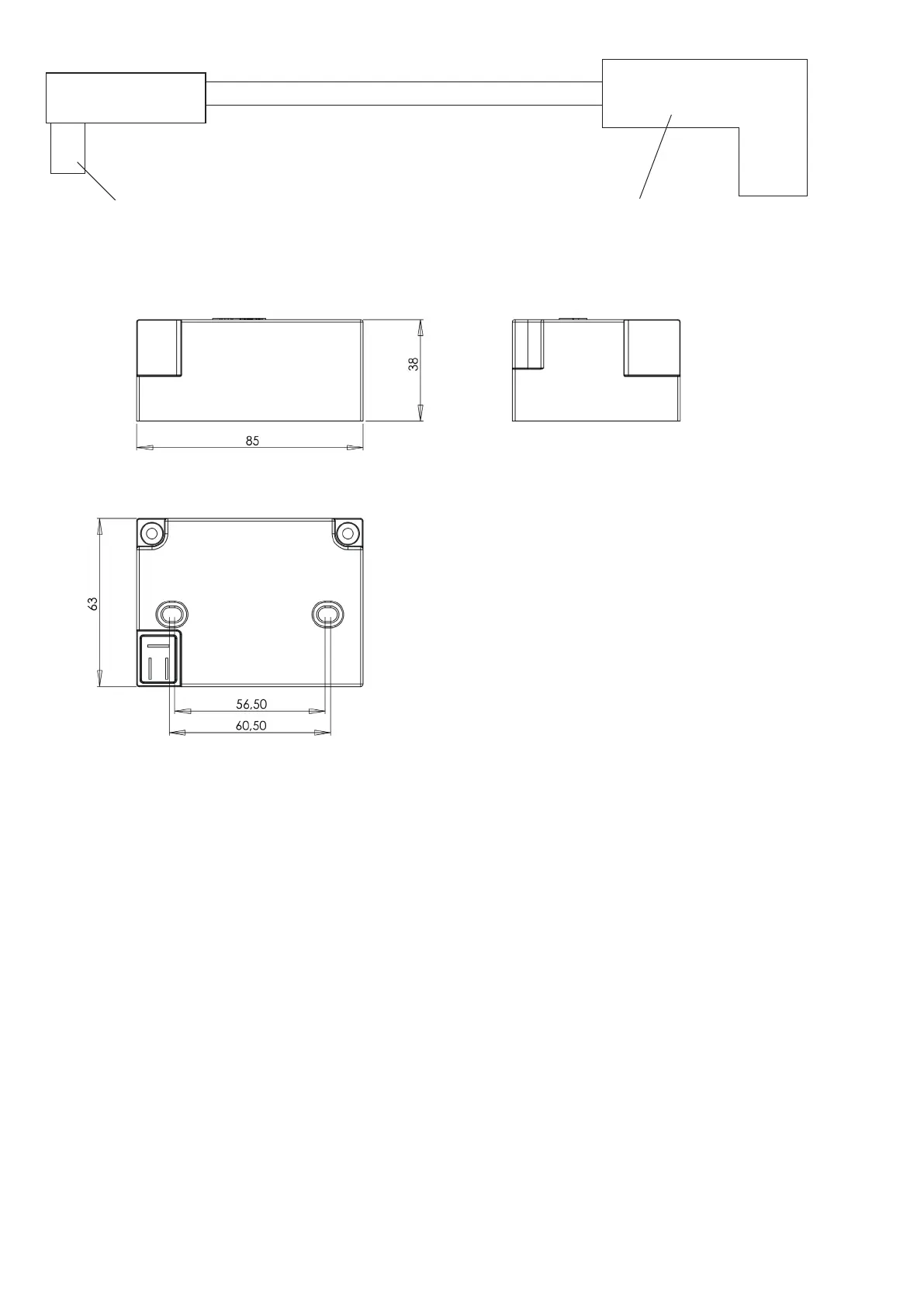

Dimensions
Attention
The operation of the DEZ ignition
transformers produces very high volt-
ages. The ignition transformers may
only be put into operation if the ignition
electrodes were built into the burner
/ burner chamber touch-proof and all
live connections by means of the lines
provided for this purpose were made
touch-proof.
The length of the ignition line(s) must
not exceed 1 m.
Connecting the protective earth is
mandatory.
In the "SEO" version for single-elec-
trode operation, the protective earth
is connected to terminal 5 of the MPA
41xx.
DEZ connection
Electrode connection
ø 6.3 mm
