- 19 -

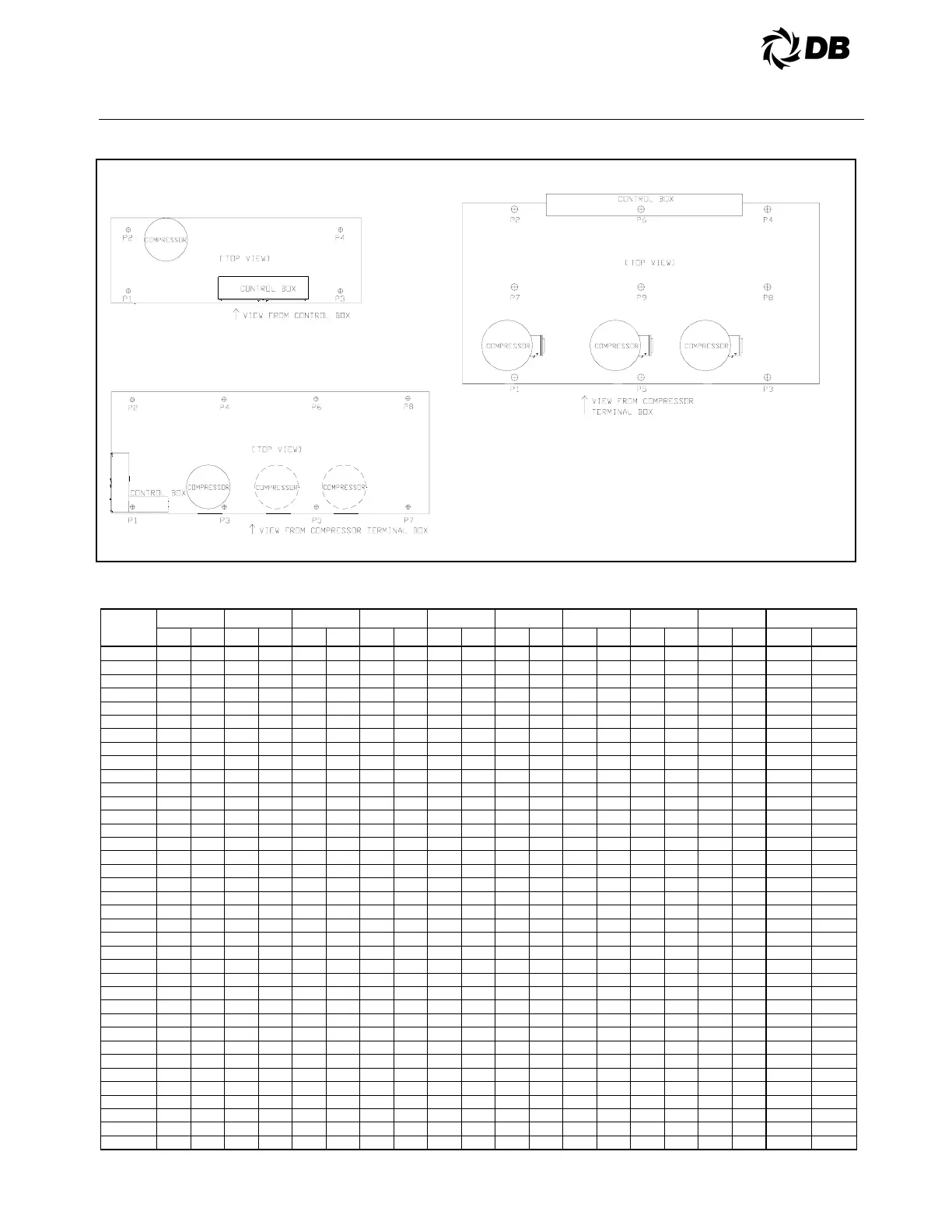

FLOOR LOADING DIAGRAM
WCFX-E 10S, 12S, 15S, 19S WCFX-E 108, 113, 118, 123
20T, 22T, 24T, 27T, 30T
WCFX-E 20S, 23S, 24S, 27S, 30S, 36S, 41S,
38T, 40T, 46T, 50T, 54T, 57T, 60T, 73T, 75T, 81T,
69, 73, 77, 81, 84, 87, 90
POINT LOAD DATA
Model
WCFX-E
P1 P2 P3 P4 P5 P6 P7 P8 P9 Operating Weight
lbs kg lbs kg lbs kg lbs kg lbs kg lbs kg lbs kg lbs kg lbs kg lbs kg
10S
1186 538 1845 837 930 422 1441 654 - - - - - - - - - - 5402 2450
12S
1382 627 2150 975 1083 491 1679 762 - - - - - - - - - - 6294 2855
15S
1452 659 2259 1025 1138 516 1764 800 - - - - - - - - - - 6613 3000
19S
1131 513 1545 701 1034 469 1420 644 935 424 1296 588 838 380 1171 531 - - 9370 4250
20S
1292 586 1934 877 1173 532 1764 800 1054 478 1595 724 935 424 1426 647 - - 11173 5068
20T
1786 810 2892 1312 1742 790 2509 1138 - - - - - - - - - - 8929 4050
22T
1940 880 3144 1426 1889 857 2727 1237 - - - - - - - - - - 9700 4400
23S
1329 603 2023 918 1210 549 1846 837 1090 494 1670 757 970 440 1493 677 - - 11631 5276
24S
1411 640 2106 955 1273 578 1918 870 1136 515 1731 785 999 453 1544 700 - - 12118 5497
24T
2094 950 3391 1538 2039 925 2941 1334 - - - - - - - - - - 10465 4747
27S
1468 666 2247 1019 1329 603 2049 929 1190 540 1850 839 1050 476 1651 749 - - 12833 5821
27T
2238 1015 3622 1643 2178 988 3142 1425 - - - - - - - - - - 11180 5071
30S
1621 735 2456 1114 1463 664 2238 1015 1305 592 2020 916 1147 520 1802 817 - - 14052 6374
30T
2482 1126 4019 1823 2414 1095 3483 1580 - - - - - - - - - - 12398 5624
36S
1709 775 2838 1287 1608 729 2653 1203 1507 684 2468 1120 1406 638 2283 1036 - - 16473 7472
38T
1936 878 2357 1069 1793 813 2202 999 1651 749 2048 929 1510 685 1896 860 - - 15393 6982
40T
2348 1065 2859 1297 2176 987 2672 1212 2004 909 2485 1127 1832 831 2297 1042 - - 18673 8470
41S
1813 822 3055 1386 1705 773 2856 1296 1597 724 2658 1205 1489 676 2459 1115 - - 17633 7998
46T
2337 1060 3057 1387 2233 1013 2875 1304 2129 966 2694 1222 2025 919 2512 1140 - - 19863 9010
50T
2521 1144 3385 1536 2403 1090 3181 1443 2285 1036 2976 1350 2166 983 2771 1257 - - 21688 9837
54T
2696 1223 3713 1684 2579 1170 3489 1583 2461 1116 3265 1481 2343 1063 3041 1380 - - 23588 10699
57T
2811 1275 3809 1728 2698 1224 3590 1628 2585 1173 3371 1529 2472 1121 3151 1429 - - 24486 11107
60T
2888 1310 3897 1768 2786 1264 3677 1668 2684 1218 3456 1568 2582 1171 3236 1468 - - 25208 11434
69
3589 1628 4396 1994 3330 1511 4133 1875 3072 1393 3869 1755 2813 1276 3605 1635 - - 28807 13067
73
3910 1773 4973 2256 3616 1640 4670 2118 3322 1507 4366 1981 3029 1374 4063 1843 - - 31949 14492
73T
3733 1693 4850 2200 3255 1476 4464 2025 2777 1259 4077 1849 2298 1042 3690 1674 - - 29144 13220
75T
3840 1742 5012 2274 3354 1521 4615 2094 2868 1301 4219 1914 2382 1080 3822 1734 - - 30111 13658
77
3983 1807 5033 2283 3688 1673 4727 2144 3393 1539 4421 2005 3098 1405 4115 1867 - - 32458 14723
81
4205 1907 5454 2474 3910 1773 5125 2325 3614 1639 4796 2175 3318 1505 4467 2026 - - 34889 15825
81T
4082 1852 5504 2497 3582 1625 5076 2302 3082 1398 4647 2108 2582 1171 4218 1913 - - 32773 14866
84
4441 2014 5750 2608 4132 1874 5411 2454 3823 1734 5072 2300 3514 1594 4732 2147 - - 36873 16725
87
4538 2059 5845 2651 4228 1918 5502 2495 3917 1777 5158 2340 3606 1635 4815 2184 - - 37608 17059
90
4659 2113 6050 2744 4358 1977 5698 2585 4058 1841 5346 2425 3758 1704 4994 2265 - - 38920 17654
108
4596 2085 4993 2265 4795 2175 5348 2426 4696 2130 5171 2345 4776 2166 5053 2292 4914 2229 44342 20113
113
4713 2138 5141 2332 4946 2243 5523 2505 4830 2191 5332 2419 4908 2226 5215 2366 5062 2296 45669 20715
118
5150 2336 5729 2598 5430 2463 6176 2801 5290 2400 5953 2700 5419 2458 5785 2624 5602 2541 50533 22921
123
5322 2414 5919 2685 5581 2532 6363 2886 5452 2473 6141 2786 5599 2540 5955 2701 5777 2620 52109 23636
Notes: 1.) Refer to dimensional drawings for location of mounting points.
2.) Unit must be lowered onto mounting springs in a level fashion or spring damage may occur.
