4 - LOCATING BOILER
Minimum Clearance
17 ¾ in. [450mm ]
From Front of Boiler
13.58 in /
345.00 mm
1   in
[45mm]
17  in
[450mm]
8 ⅝in [220 mm]
9 in [250 mm]
30 in
[763 mm]
125 & 150
13   in
[345 mm]

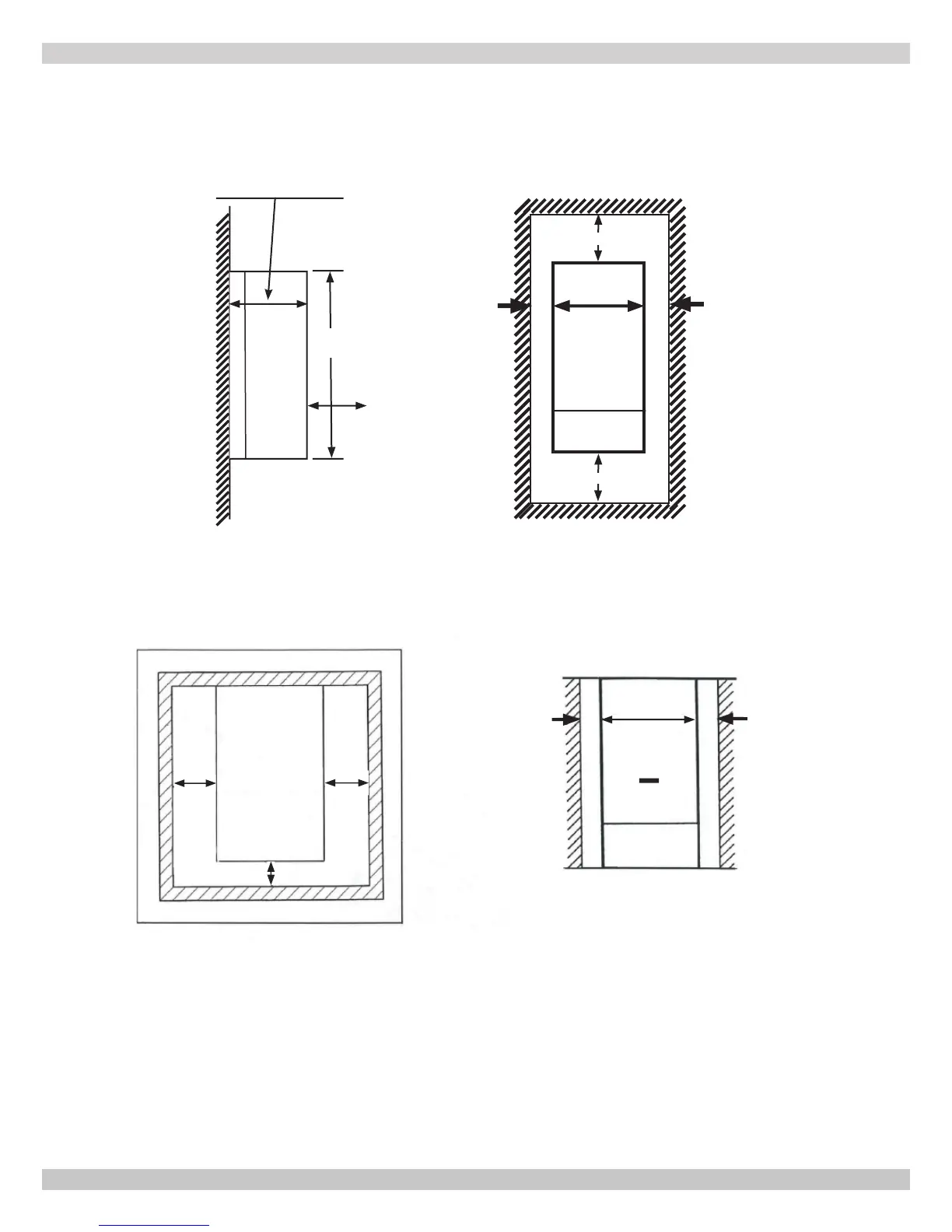

4.2 Service and Combustible Clearances
165 & 205
21½in
[571.5 mm]
1   in
[45mm]
CLEARANCES REQUIRED FOR
CLOSET INSTALLATION
CLEARANCES FOR
COMBUSTIBLES
1  in
[45mm]
17in
Top View
Back
1 in
[40mm]
Closet Installation
0 in /0 mm between Back of Unit and wall
1  in
[45mm]
1in
[45 mm]
1in
[45 mm]
[450 mm]
Left Side View
of Boiler
Front View of
Boiler
Front View of
Boiler
