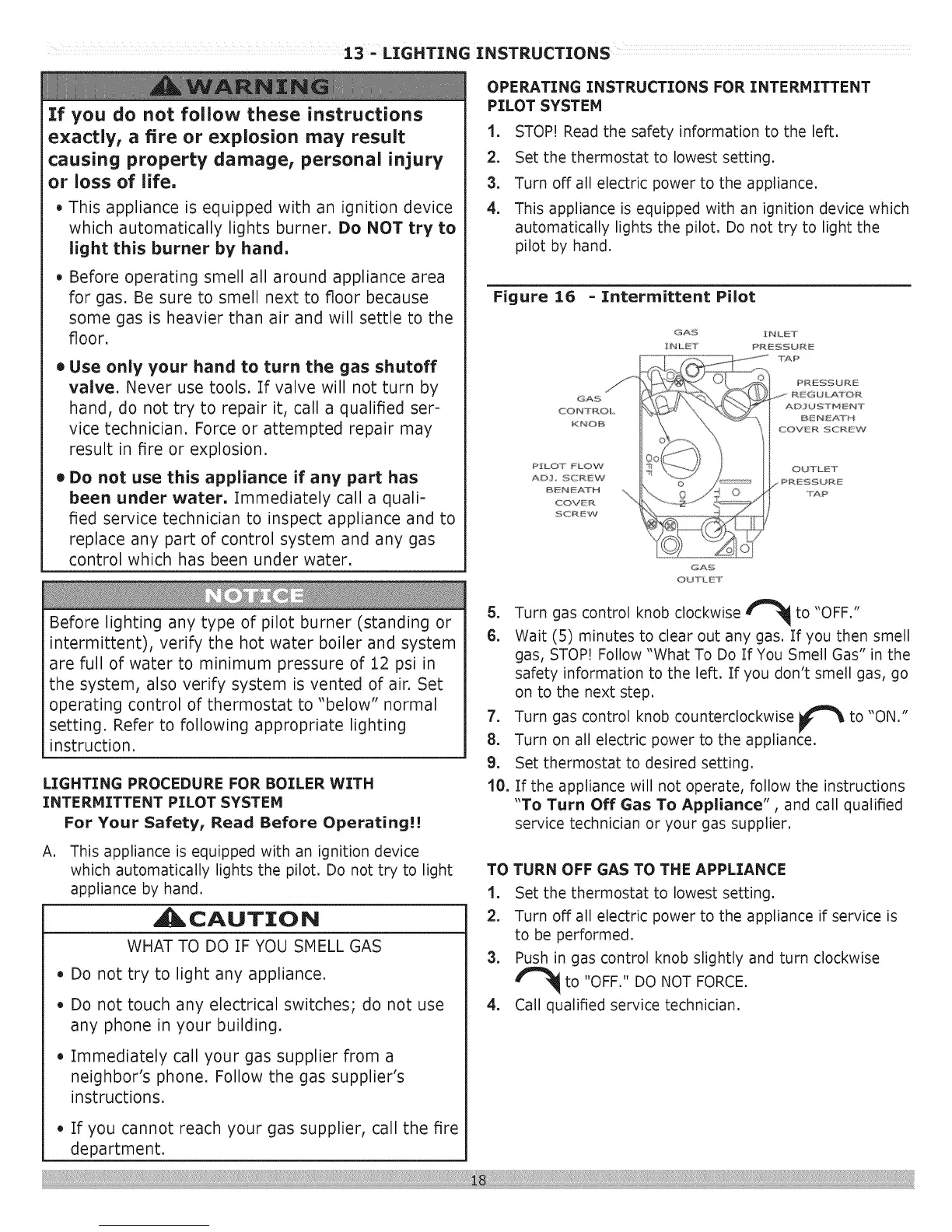

%3' LIGHTING INSTRUCTIONS
If you do not follow these instructions
exactly, a fireor explosion may result
causing property damage, personal injury
or loss of life.
• This appliance is equipped with an ignition device
which automatically lights burner. Do NOT try to
lightthis burner by hand.
• Before operating smell all around appliance area
for gas. Be sure to smell next to floor because
some gas is heavier than air and will settle to the
floor.
• Use only your hand to turn the gas shutoff
valve. Never use tools.Ifvalve willnot turn by
hand, do not try to repair it, call a qualified ser-
vice technician. Force or attempted repair may
result in fire or explosion.
• Do not use this appliance if any part has
been under water, Immediately call a quali-
fied service technician to inspect appliance and to
replace any part of control system and any gas
control which has been under water.
Before lighting any type of pilot burner (standing or
intermittent), verify the hot water boiler and system
are full of water to minimum pressure of 12 psi in
the system, also verify system is vented of air. Set
operating control of thermostat to "below" normal
setting. Refer to following appropriate lighting
instruction.
LIGHTING PROCEDURE FOR BOILER WITH
INTERHITTENT PILOT SYSTEM
For Your Safety, Read Before Operating!!
A. This appliance is equipped with an ignition device
which automatically lights the pilot. Do not try to light
appliance by hand.
ACAUTION
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switches; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• Ifyou cannot reach your gas supplier, call the fire
department.
OPERATING INSTRUCTIONS FOR INTERHITTENT
PILOT SYSTEM
I. STOP! Read the safetyinformationtothe left.
2. Set thethermostattolowestsetting.
3. Turn off all electric power to the appliance.
4. This appliance is equipped with an ignition device which
automatically lights the pilot. Do not try to light the
pilot by hand.
Figure 16 - Intermittent Pilot
GAS
CO_,_'TROL
KI',JOB
PI LO _'" _ LO VV
A©], SCREW
BENEATH
COV R
SCREVV
GA_,
_NLET
ooi i!
_ L ...................
.. ? /4 o
GAN
OUTLET
INLET
PR;ESSURE
TAP
PRESSU_'.E
_ RE:GU L A_©R
BBNEATH
C©VER SC R E'Vv'
OU [ LET
, PRESSURE
TAP
A
5. Turn gas control knob clockwise 4r _ to "OFF."
6. Wait (5) minutes to clear out any gas. If you then smell
gas, STOP! Follow "What To Do If You Smell Gas" in the
safety information to the left. If you don't smell gas, go
on to the next step.
7. Turn gas control knob counterclockwise _'_ to "ON."
F"
I
8. Turn on all electric power to the app _ance.
9. Set thermostat to desired setting.
10. If the appliance will not operate, follow the instructions
"To Turn Off Gas To Appliance", and call qualified
service technician or your gas supplier.
TO TURN OFF GAS TO THE APPLIANCE
1. Set the thermostat to lowest setting.
2. Turn off all electric power to the appliance if service is
to be performed.
3. Push in gas control knob slightly and turn clockwise
_to "OFF." DO NOT FORCE.
4. Call qualified service technician.
