10. LOADING PAPER ACCORDING TO COLLATION MODE
Determine how to load paper according to the operation to be carried out after collation.
See the figures below for the order of loading paper on the bins and collation pages.
Note If using the downstream unit, whether to face the printed side up or down differs according to the process-
ing method. Refer to the instruction manual of the downstream unit.

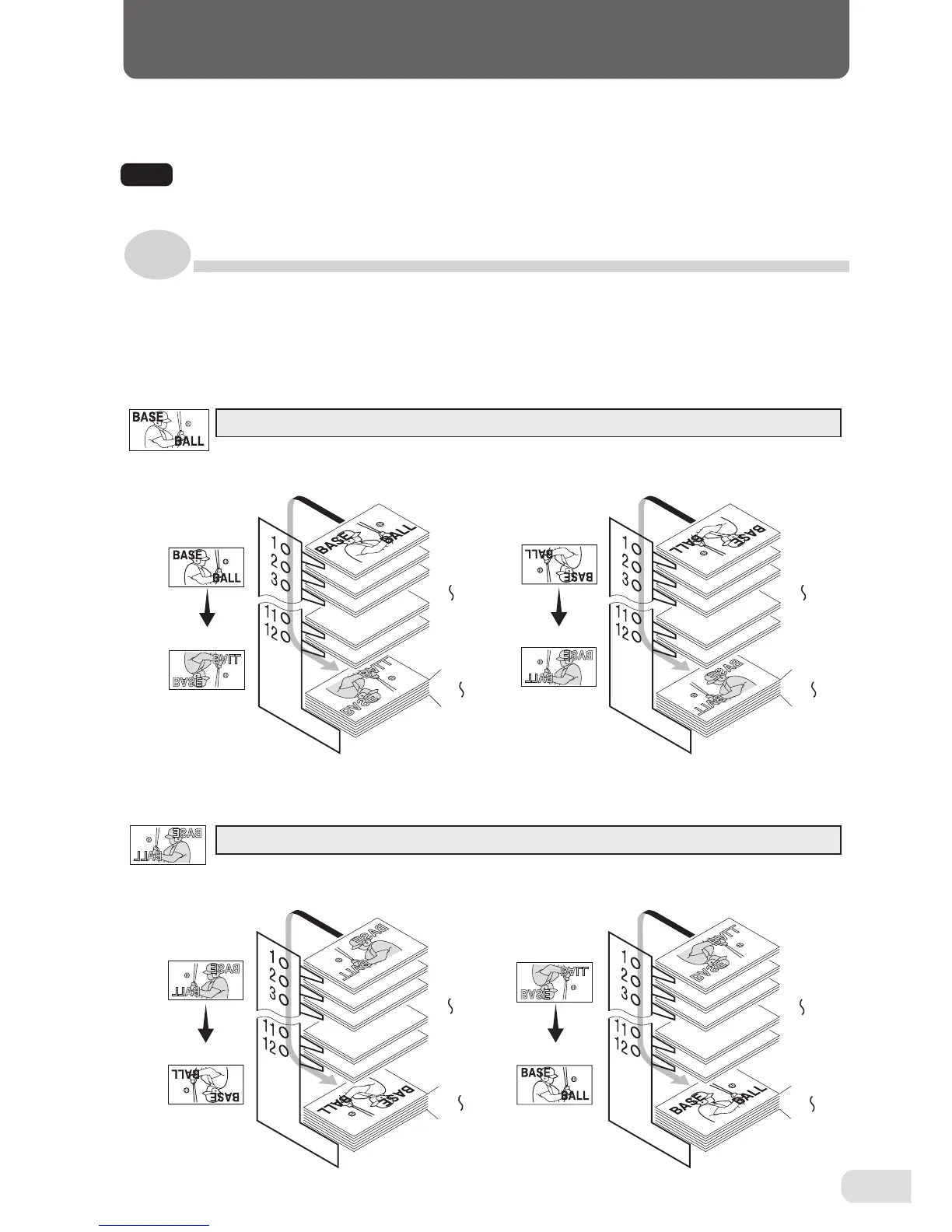

10-1. Loading paper for normal mode
Paper is fed from the top bin in order and ejected to the paper receiving table as one
set.
When paper is loaded with its printed side facing up
When paper is loaded with its printed side facing up, the printed side of the collated paper will face down.
Paper
(When loaded)
Paper
(When ejected)
Paper
(When loaded)
Paper
(When ejected)
Paper
(When loaded)
Paper
(When ejected)
Paper
(When loaded)
Paper
(When ejected)
Paper
(Non-printed side)
When paper is loaded with its printed side facing down
When paper is loaded with its printed side facing down, the printed side of the collated paper will face up.
Paper
(Printed side)
Page 12
Page 1
Page 1
Page 2
Page 3
Page 11
Page 12
Page 12
Page 1
Page 1
Page 2
Page 3
Page 11
Page 12
Page 1
Page 12
Page 12
Page 11
Page 10
Page 2
Page 1
Page 1
Page 12
Page 12
Page 11
Page 10
Page 2
Page 1
