310
c HELP Mode Function and Operation Procedures
chap.7
e
Press the STOP key. The HELP mode selection display will
reappear.
a To exit the HELP mode : Turn the power switch OFF.
a To access another HELP mode : Enter the desired mode number
using the numeric keys.
H-11
(1) Sensor/switch condition displayHELP mode
SS

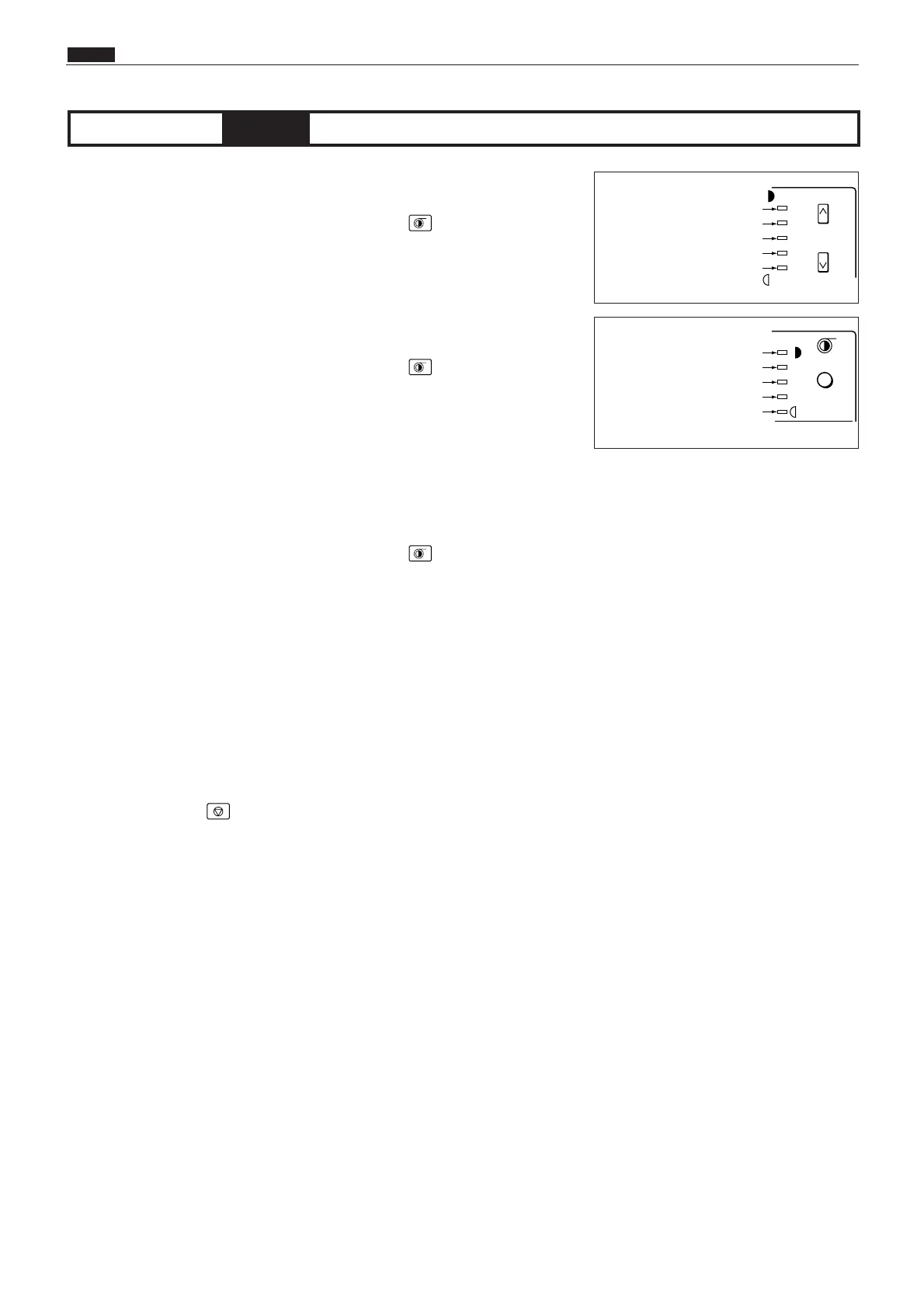

Display of document darkness (for use in factory checks)
¡ Display of darkness value for lightest part of document
a Use the PLATEMAKING DARKNESS key to select the
STANDARD item.
A value between 000 ("darkest" value) and 255 ("lightest" value)
will be displayed.
¡ Display of darkness value for darkest part of document (relative
to lightest part, above)
a Use the PLATEMAKING DARKNESS key to select the
LIGHTER1 item.
A value between 000 ("darkest" value) and 255 ("lightest" value)
will be displayed.
¡ Display of darkness value for darkest part of document in an
area 4mm to either side of the centerline, in the primary
scanning direction
a Use the PLATEMAKING DARKNESS key to select the
LIGHTER2 item.
A value between 000 ("darkest" value) and 255 ("lightest" value)
will be displayed.
Darkness of central portion in
primary scanning direction
Darkness of darkest part
Darkness of lightest part
Size in secondary scanning direction
Size in primary scanning direction
E type
Darkness of central portion in
primary scanning direction
Darkness of darkest part
Darkness of lightest part
Size in secondary scanning direction
Size in primary scanning direction
STD
S type
