Duracell DuraCharger - Electrical Connection

12
4. Electrical Connection
Note: Beforeinsertingthepowersupplycable,cutsiliconsealedloopasrequired(dependingoncableCSA)tomaintain
the IP65 rating.

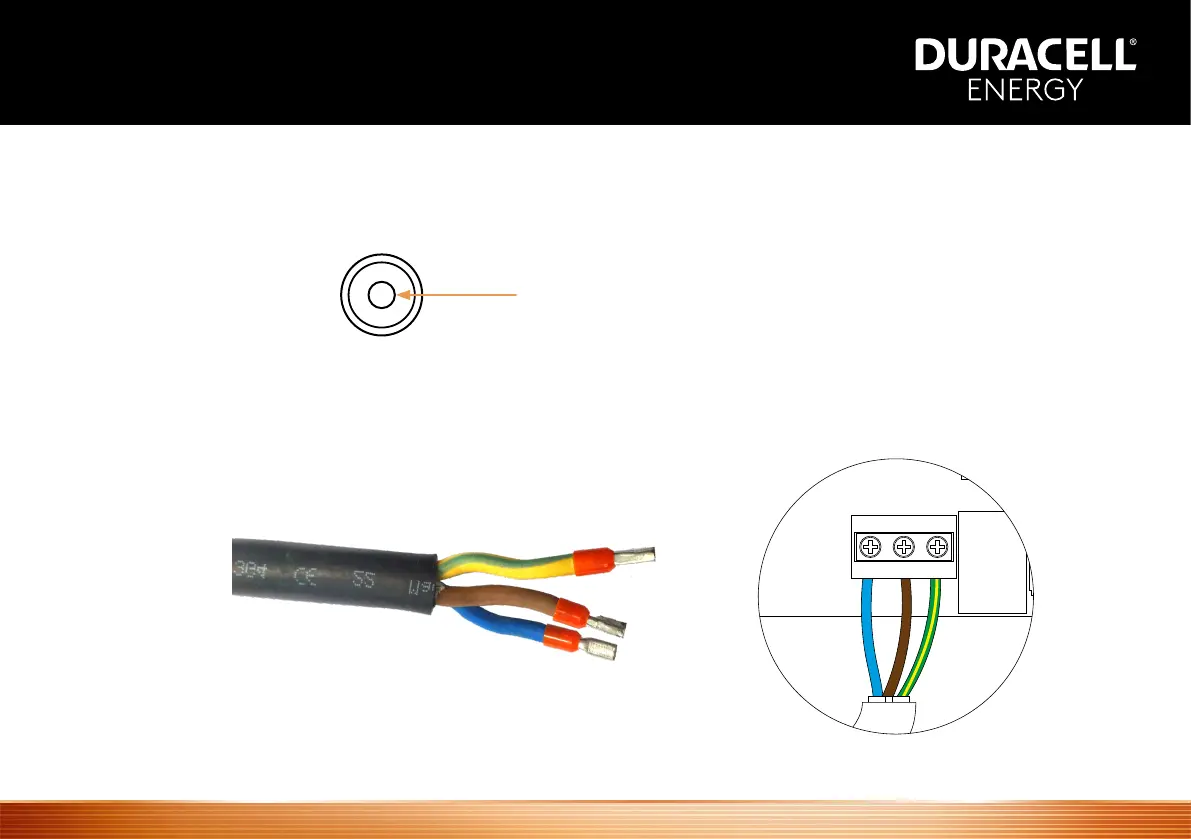

Cut along this circle
1. Removealengthof40mmoftheouterinsulationandstripthecoreinsulationtoalengthof8~15mm.
2. CrimptheterminalasshowninFigure1below.
3. TerminatetheconnectionsasshowninFigure2.
N L E
Figure 1. Single phase cable Figure 2. Single-Phase connection
