Duracell DuraCharger - Front Cover Assembly

15
5. Front Cover Assembly
1. Make sure the front cover is correctly mounted and tightened so the tamper detection switch can be activated.
2. ProtrusionofthefrontcovershouldbeintersectedtosealothebackplateasshownindetailCtomaintainIP65.

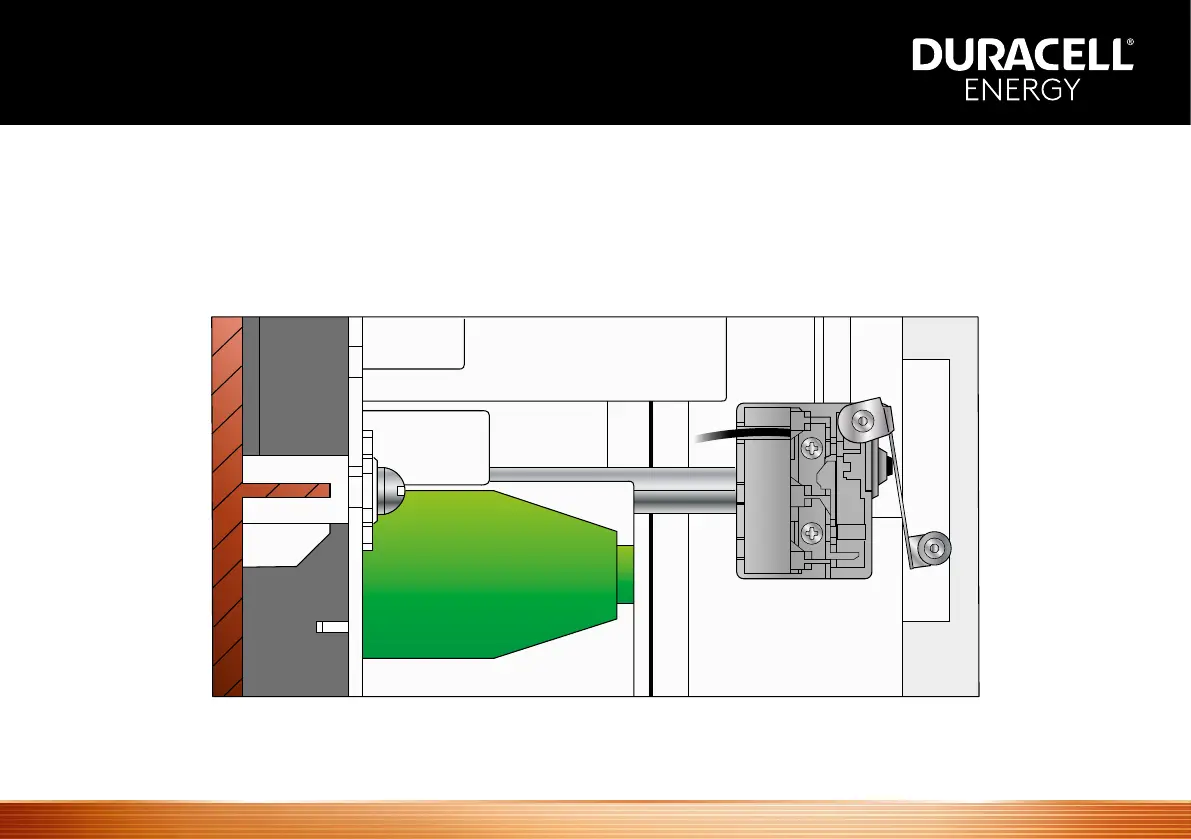

Figure 5. Tamper detection switch (from left)
