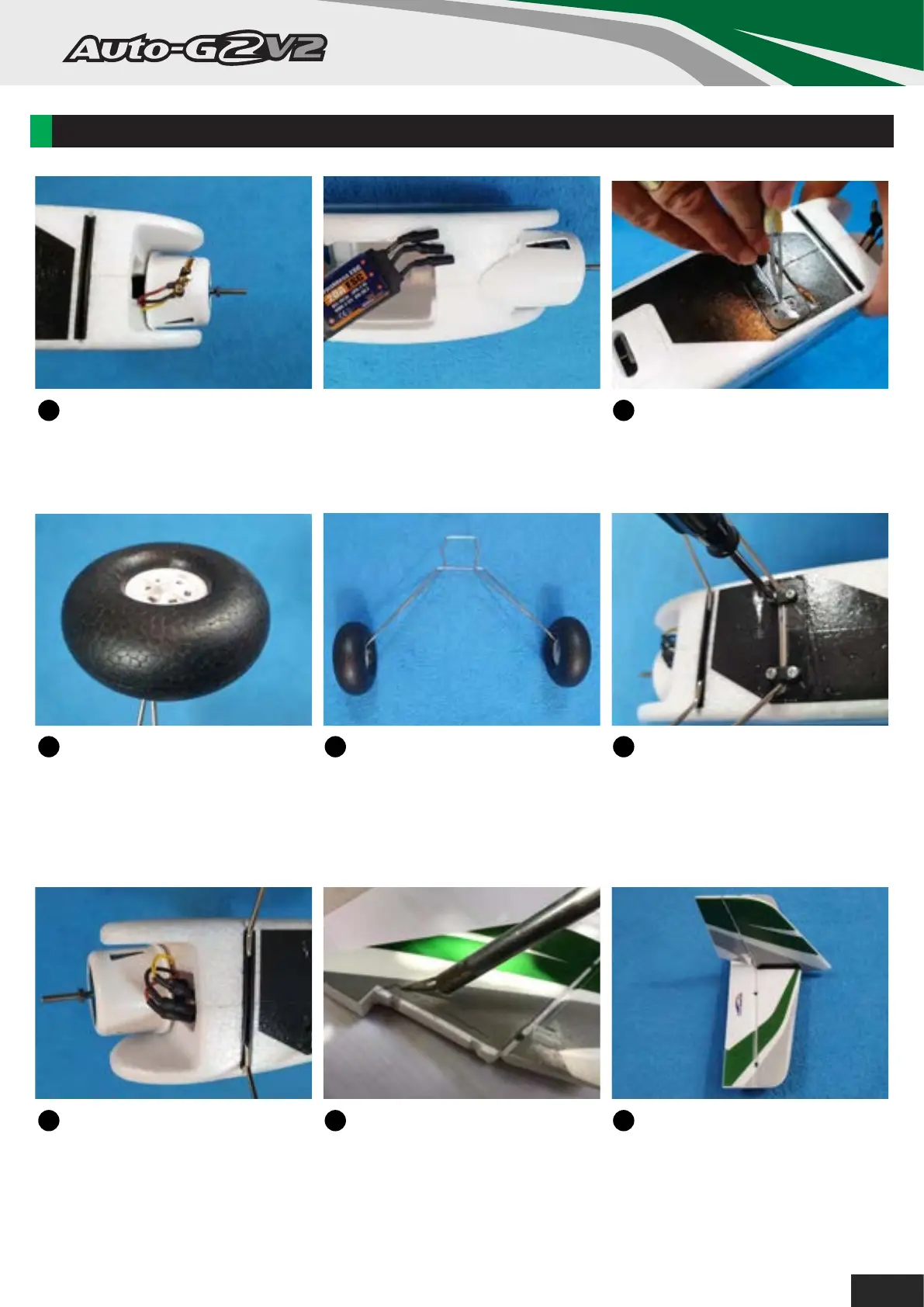

ASSEMBLY (PNF):
The first step in the assembly is to fit the landing gear, your ESC
to motor wires should be supplied disconnected. If not, then unplug
the ESC from the motor and slide the ESC wires out of the way of
the area where the landing gear is attached.
1
With a sharp knife, remove the
covering over the rear landing
gear slot as shown.
2
3 Attach the wheels to the landing
gear and retain using the white
plastic screw-on domed fittings.
3
3 Landing gear ready to be
attached. Tip: Use some silicone
grease on the axles, this will
reduce the acoustics caused by
the large wheels whilst flying.
4
Squeeze the front of the landing
gear into the front slot (this is quite
a tight fit). Retain the rear cross
brace using the black landing gear
straps and the 4 x self-tapping
screws provided.
5
3 Feed the ESC cables back
through the landing gear and plug
into the motor connectors, don't
forget to check the motor rotation
when you get to setting up your
radio.
6
3 Before gluing the vertical
stabilizer to the horizontal stabilizer,
remove the covering from the area
shown with a sharp knife.
7
Glue the vertical stabilizer to
the horizontal stabilizer.
8
3
