LOADINg ThE PRINTER
4. Loading the Printer
DuraLabel Ribbon and Vinyl Supplies have been optimized for compatibility and print
quality. Only authorized DuraLabel Supplies from Graphic Products will print correctly
in the DuraLabel PRO/PRO 300 printer.
An instructional video demonstrating how to load DuraLabel Ribbon and Supplies
can be viewed on your installation CD or at DuraLabel.com/duralabel-videos.
4.1 Printer Parts
A
B
D
F
G
H
I
C
E
A. Supply loading diagram
B. Label supply roll
C. Label roll mounts
D. Fixing tabs
E. Teflon bar (white)
F. Adjustable label guides (turquoise)
G. Media sensor/B Mark sensor
(turquoise)
H. Platen roller (black)
I. Printed label opening

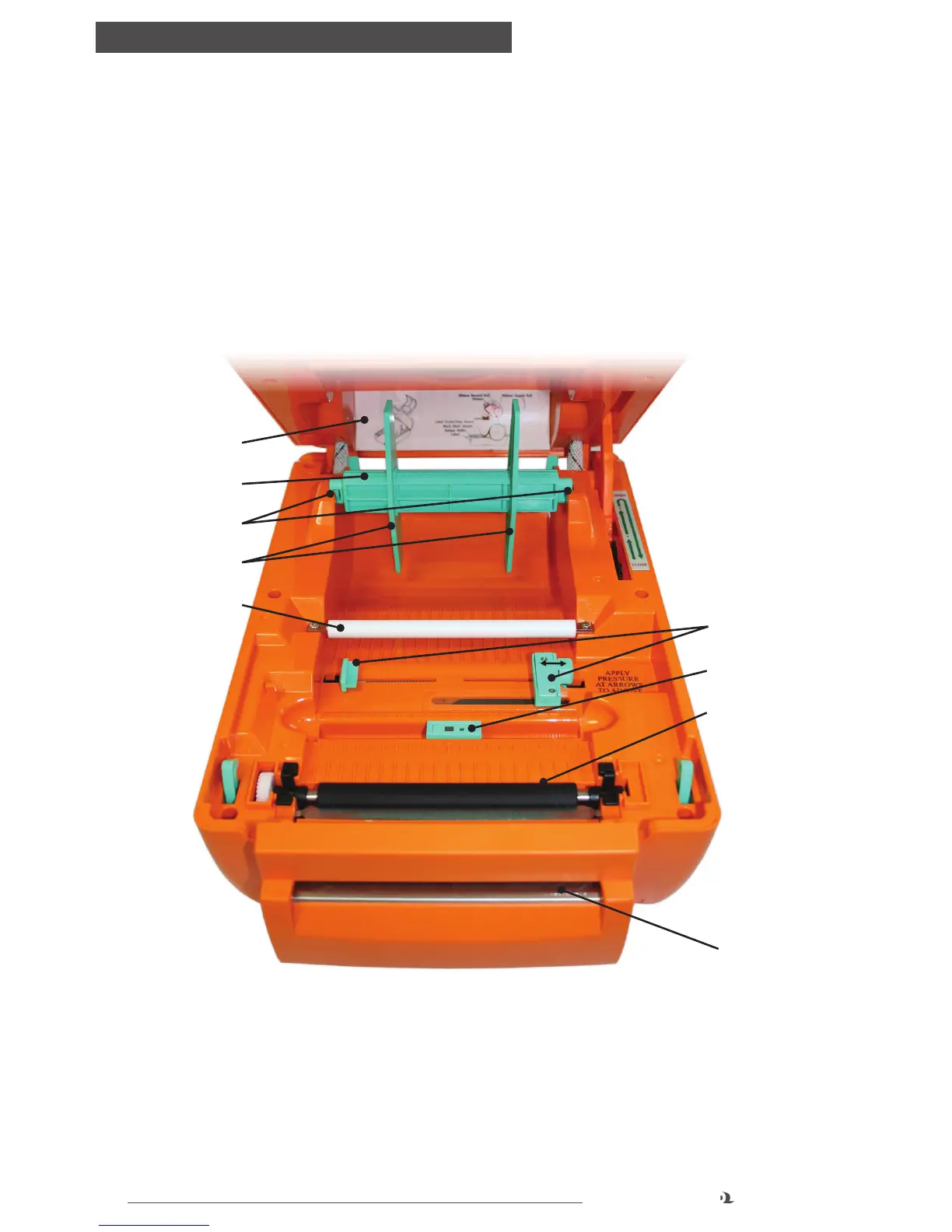

FIGURE 1 Inside of printer, with ribbon mechanism open in upright position
To Next Page
