STEP 2: HANG INDOOR UNIT

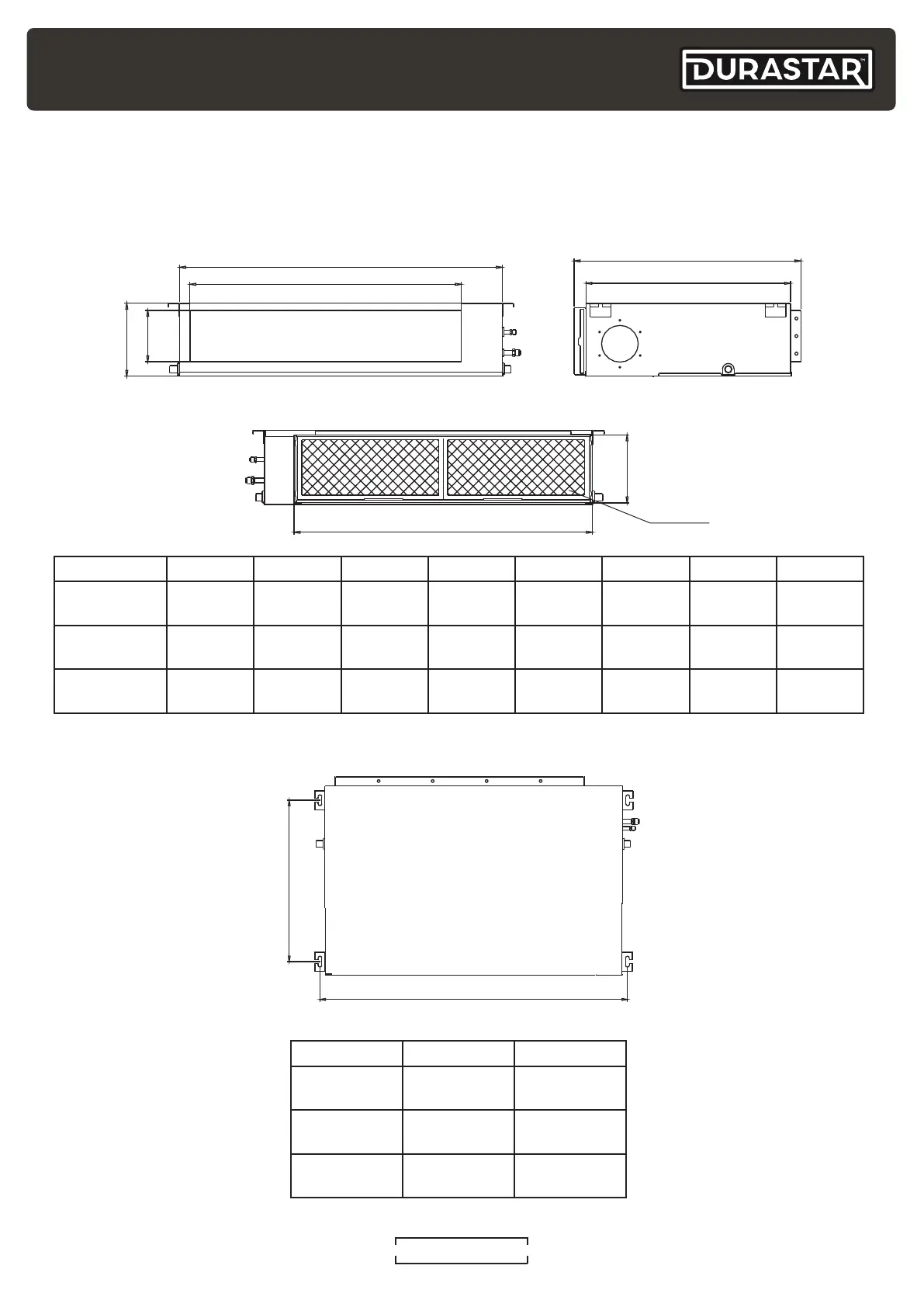

1. Refer to the following diagrams for unit dimensions and locations for the four suspension bolt
holes required to hang the indoor unit.
Unit and air outlet dimensions
Air inlet dimensions
Air filter
A
B
C
D
E
F
G
H
Mounting dimensions for ceiling bolts
I
J
Model I J
DRAD09F1A
DRAD12F1A
29 3/16"
(741mm)
14 3/16"
(360mm)
DRAD18F1A 36 1/4"
(920mm)
20"
(508mm)
DRAD24F1A 44 7/8"
(1140mm)
23 9/16"
(598mm)
Model A B C D E F G H
DRAD09F1A
DRAD12F1A
27 9/16"
(700mm)
7 7/8"
(200mm)
19 15/16"
(506mm)
17 3/4"
(450mm)
6"
(152mm)
21 1/8"
(537mm)
7 5/16"
(186mm)
23 9/16"
(599mm)
DRAD18F1A 34 5/8"
(880mm)
8 1/4"
(210mm)
26 9/16"
(674mm)
23 5/8"
(600mm)
5 3/8"
(136mm)
27 13/16"
(706mm)
7 1/2"
(190mm)
30 13/16"
(782mm)
DRAD24F1A 43 5/16"
(1100mm)
9 13/16"
(249mm)
30 1/2"
(774mm)
27 9/16"
(700mm)
6 7/8"
(175mm)
36 7/16"
(926mm)
9"
(228mm)
39 7/16"
(1001mm)
