Model
number
XP4400
I
XP4400E
Engine
oil
capacity
20
fluid oz.

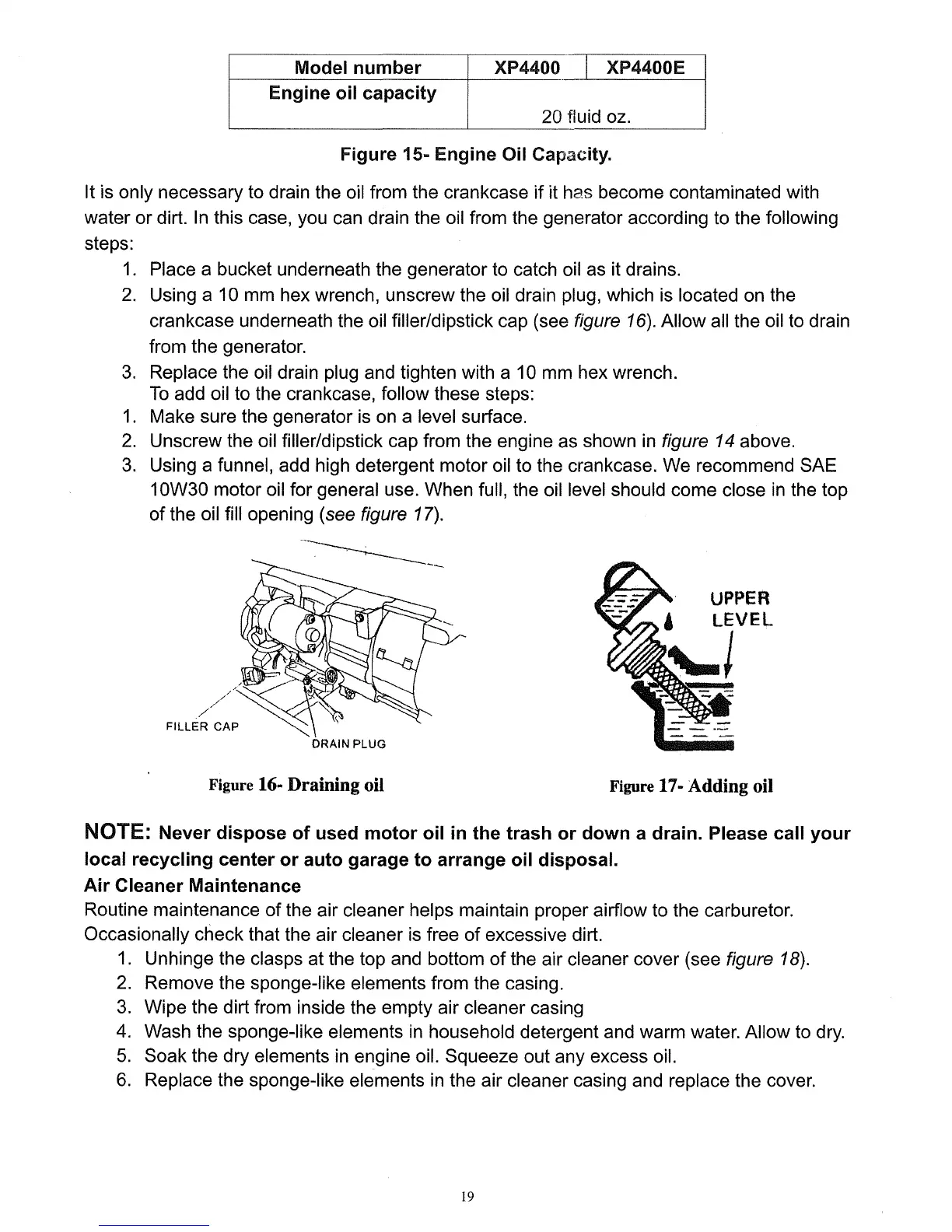

Figure 15- Engine Oil
Capacity.
It is only necessary to drain the oil from the crankcase if it has become contaminated with
water or dirt.
In
this case, you can drain the oil from the generator according to the following
steps:
1.
Place a bucket underneath the generator to catch oil
as
it drains.
2.
Using a
10
mm
hex wrench, unscrew the oil drain plug, which
is
located
on
the
crankcase underneath the oil filler/dipstick cap (see
figure
16).
Allow all the oil to drain
from the generator.
3.
Replace the oil drain plug and tighten with a
10
mm
hex wrench.
To
add oil to the crankcase, follow these steps:
1.
Make sure the generator
is
on
a level surface.
2.
Unscrew the oil filler/dipstick cap from the engine as shown
in
figure
14
above.
3.
Using a funnel, add high detergent motor oil to the crankcase. We recommend SAE
10W30 motor oil for general use. When full, the oil level should come close
in
the top
of the oil fill opening
(see figure 17).
Figure 16- Draining oil
Figure 17- Adding oil
NOTE: Never
dispose
of
used
motor
oil
in
the
trash
or
down
a drain. Please call
your
local
recycling
center
or
auto
garage
to
arrange
oil
disposal.
Air
Cleaner Maintenance
Routine maintenance of the air cleaner helps maintain proper airflow to the carburetor.
Occasionally check that the air cleaner is free of excessive dirt.
1.
Unhinge the clasps at the top and bottom of the air cleaner cover (see figure 18).
2.
Remove the sponge-like elements from the casing.
3.
Wipe the dirt from inside the empty air cleaner casing
4.
Wash the sponge-like elements
in
household detergent and warm water. Allow to
dry.
5.
Soak the dry elements
in
engine oil. Squeeze out any excess oil.
6.
Replace the sponge-like elements
in
the air cleaner casing and replace the cover.
