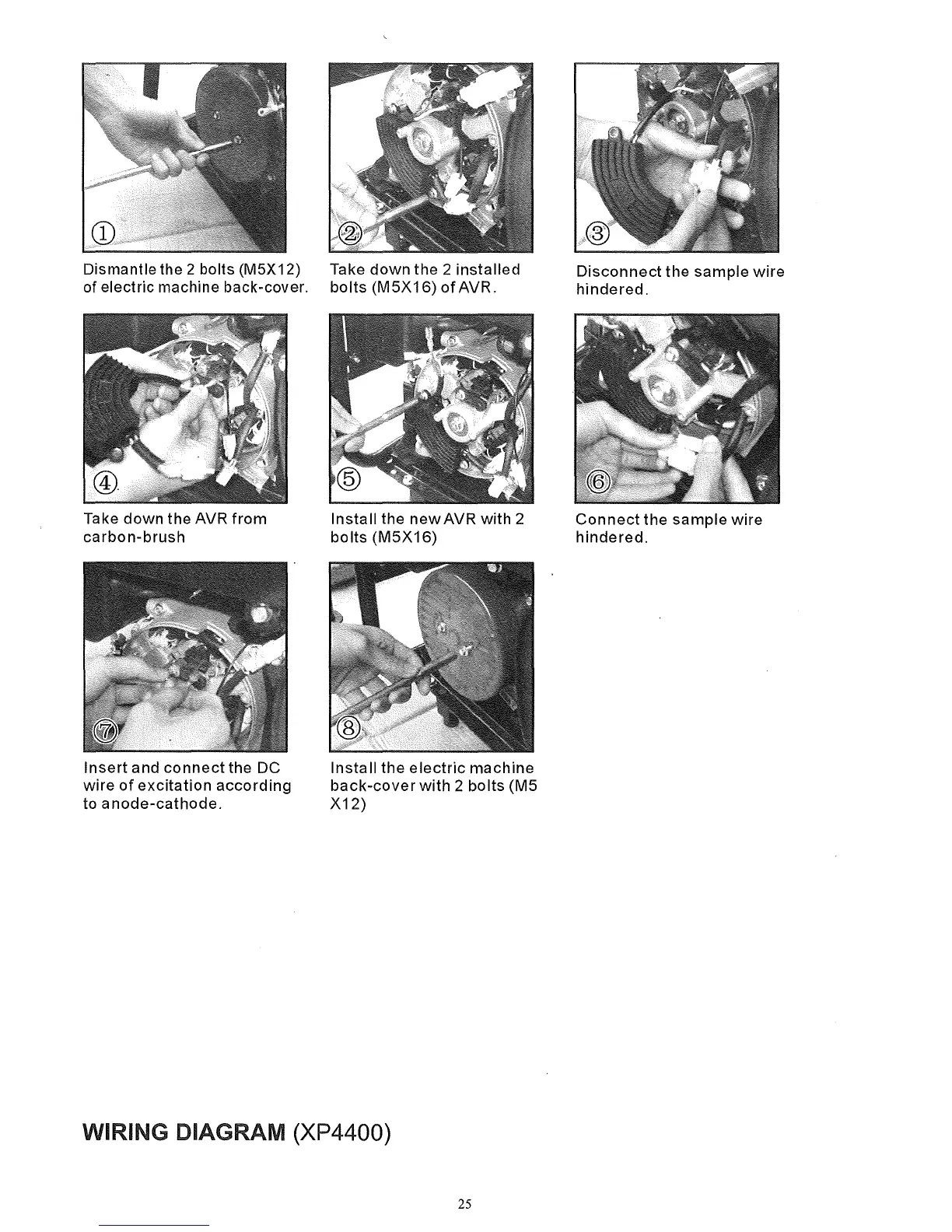

Dismantle the 2 bolts (M5X12) Take down the 2
installed
of electric machine back-cover. bolts (M5X16)
of
AVR.
Disconnect
the sample wire
hindered.
Take down the AVR
from
Install the
new
AVR with 2
carbon-brush
bolts (M5X16)
Connect
the sample wire
hindered.
Insert
and
connect
the
DC
wire
of
excitation
according
to
anode-cathode.
Install the
electric
machine
back-cover
with 2 bolts (M5
X12)
WIRING DIAGRAM (XP4400)
25
