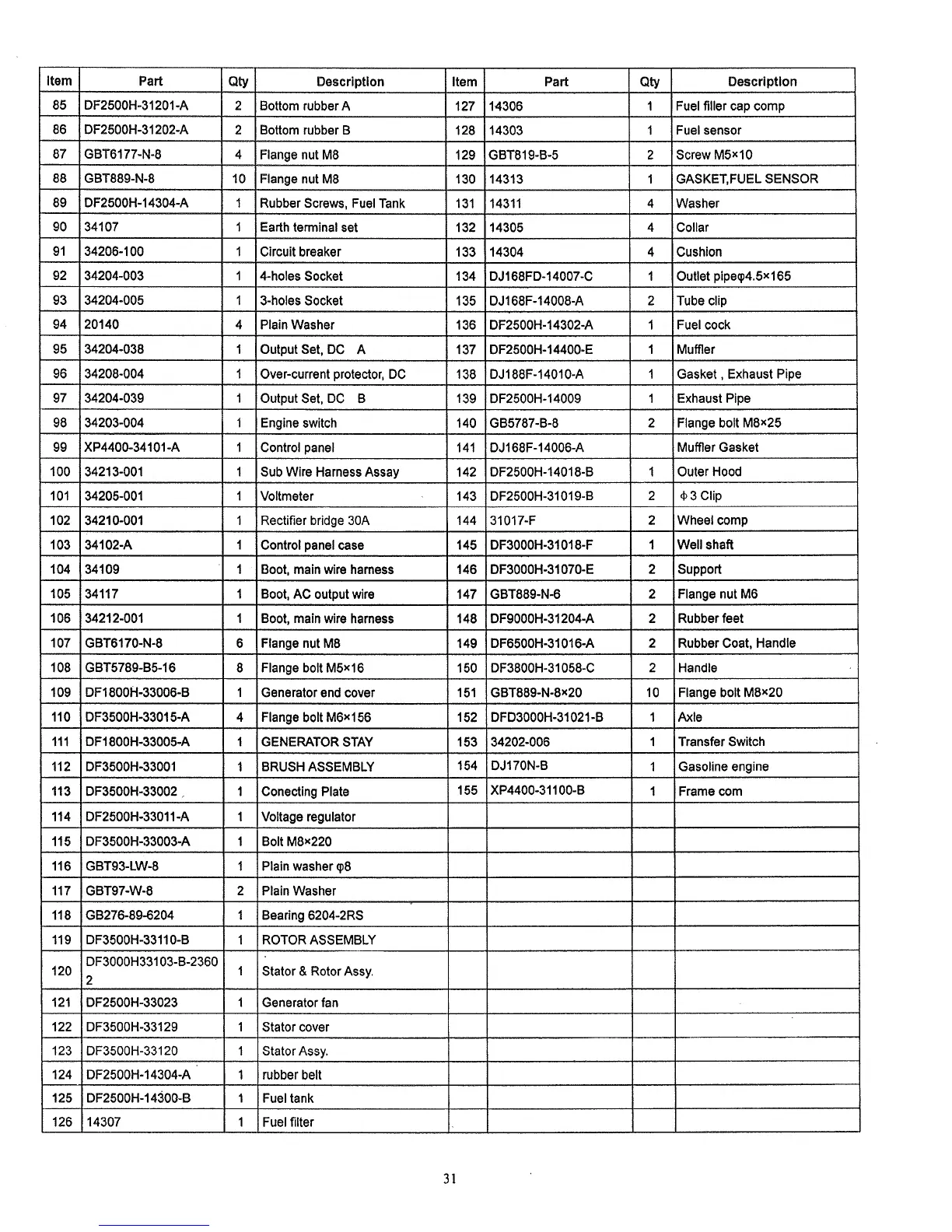

DUROMAX XP4400E - Page 31

Item
Part
Qty
Description
Item Part
Qty Description
85 DF2500H-31201-A
2
Bottom rubber A
127 14306 1
Fuel filler cap comp
86 DF2500H-31202-A
2
Bottom rubber B 128
14303 1
Fuel sensor
87 GBT6177-N-8
4
Flange nut M8
129
GBT819-B-5 2 Screw M5x10
88 GBT889-N-8
10 Flange nut M8
130 14313 1 GASKE~FUELSENSOR
89 DF2500H-14304-A
1 Rubber Screws, Fuel Tank
131 14311 4
Washer
90 34107
1 Earth terminal set
132 14305
4 Collar
91 34206-100
1 Circuit breaker
133 14304 4
Cushion
92
34204-003 1 4-holes Socket
134 OJ 168FD-14007-C 1
Outlet
pipeq>4.5
x
165
93 34204-005
1 3-holes Socket
135
OJ 168F-14008-A 2 Tube clip
94 20140
4 Plain Washer
136
DF2500H-14302-A
1
Fuel cock
95 34204-038
1 Output Set, DC
A 137
DF2500H-14400-E 1 Muffler
96 34208-004
1 Over-current protector, DC 138 DJ188F-14010-A 1 Gasket, Exhaust Pipe
97 34204-039
1 Output Set, DC
B
139 DF2500H-14009 1 Exhaust Pipe
98 34203-004 1 Engine switch
140 GB5787-B-8
2 Flange bolt M8x25
99
XP440Q-34101-A
1
Control panel
141 DJ168F-14006-A
Muffler Gasket
100 34213-001 1 Sub Wire Harness Assay
142
DF2500H-14018-B 1 Outer Hood
101 34205-001 1 Voltmeter
143
DF2500H-31019-B
2 <1>3 Clip
102 34210-001 1 Rectifier bridge 30A 144 31017-F 2
Wheelcomp
103 34102-A 1 Control panel case
145
DF3000H-31018-F 1
Well shaft
104 34109
1 Boot, main wire harness 146 DF3000H-31070-E
2 Support
105 34117 1 Boot, AC output wire
147 GBT889-N-6 2
Flange nut M6
106 34212-001 1 Boot, main wire harness
148
DF9000H-31204-A 2 Rubber feet
107 GBT6170-N-a
6 Flange nut Ma
149
DF6500H-31016-A 2
Rubber Coat, Handle
108
GBT5789-B5-16
8 Flange bolt M5x16
150
DF3800H-3105a-C 2 Handle
109
DF1aOOH-33006-B
1 Generator end cover 151 GBT8a9-N-ax20 10
Flange bolt M8x20
110
DF3500H-33015-A 4 Flange bolt M6x156 152 DFD3000H-31021-B 1 Axle
111 DF1aOOH-33005-A 1 GENERATOR STAY
153
34202-006 1
Transfer
Switch
112 DF3500H-33001
1
BRUSH ASSEMBLY
154
DJ170N-B
1
Gasoline
engine
113 DF3500H-33002 " 1 Conecting Plate
155
XP4400-31100-B
1
Frame com
114 DF2500H-33011-A 1 Voltage regulator
115
DF3500H-33003-A
1
Bolt Max220
116
GBT93-LW-8
1 Plain washer <p8
117
GBT97-W-8 2
Plain Washer
118 GB276-89-6204 1 Bearing 6204-2RS
119
DF3500H-33110-B
1 ROTOR ASSEMBLY
120
DF3000H33103-B-2360
1
Stator
& Rotor Assy.
2
121 DF2500H-33023 1
Generator
fan
122 DF3500H-33129
1 Stator cover
123 DF3500H-33120
1 Stator Assy.
124 DF2500H-14304-A
1 rubber belt
125 DF2500H-14300-B 1
Fuel tank
126 14307 1 Fuel filter
