DUROMAX XP5500X - Power Panel and Controls

16. 120/240V 4-Prong Twist Lock
10. Engine Switch
12. Multimeter – Displays voltage, hertz, and time running.
13. Power Boost – DuroMax exclusive Power Boost doubles the amperage available in “120V Only”
for heavy loads like RV air conditioners.
14. Circuit Breaker - Protects the panel from overload and short circuits.
15. 120v 3-Prong GFCI Receptacles - Use to connect electrical devices that run 120 volt, 60Hz,
single-phase, AC current (NEMA 5-20).
16. 120/240v 4-Prong Twist Lock - Use to connect electrical devices that run 120 or 240 volt, 60Hz,
single-phase, AC current (NEMA L14-30).
17. CO Alert - Shuts down the engine in the event of CO buildup.
18. Charging Light - Will light when the generator is charging the on-board battery.

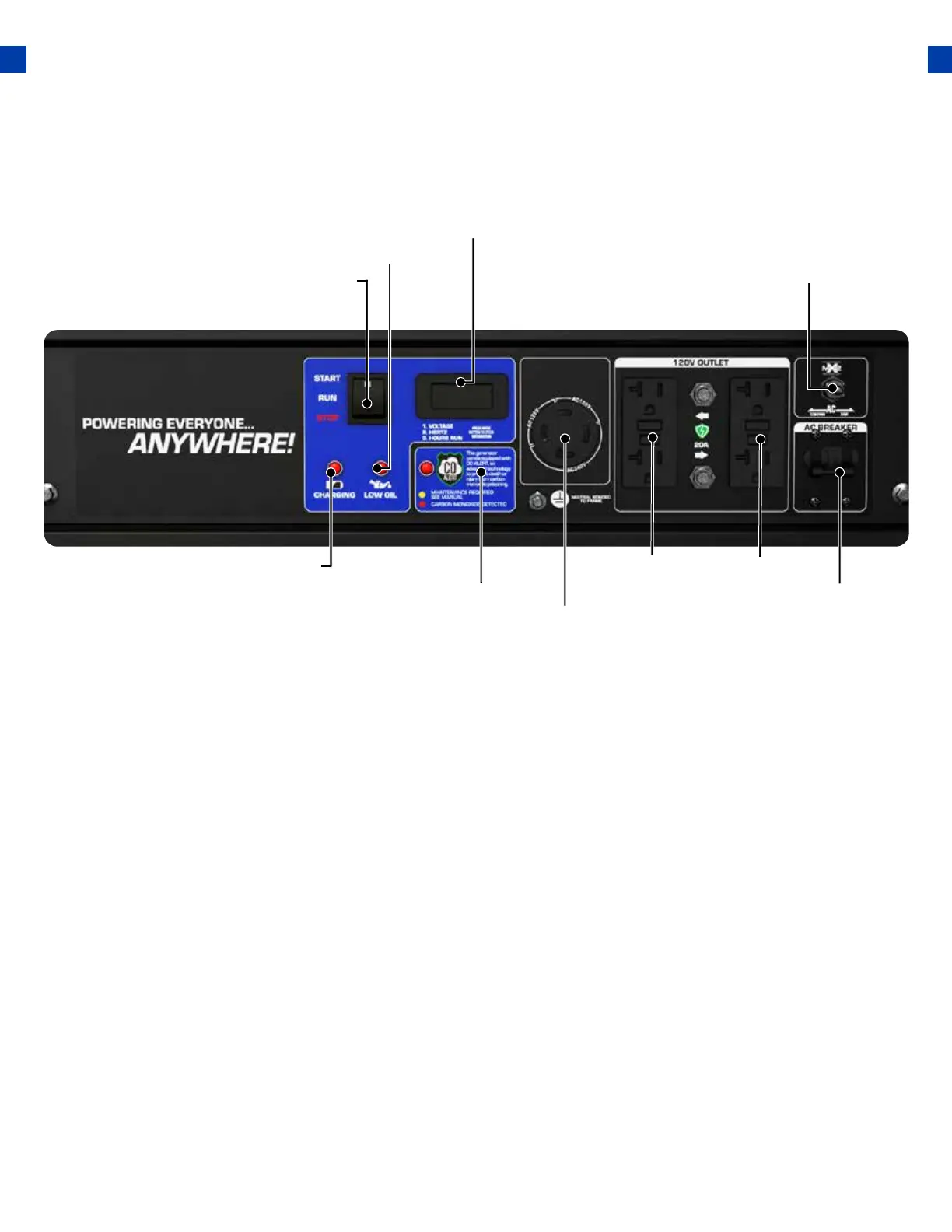

17
18. Charging Light
13. Power Boost
14. Circuit Breaker
12. Multimeter
15. GFCI 20A Receptacles
17. CO Alert
11. Low Oil Alert
