X-ray emitter
Nominal current, high-voltage generator
mA
4 - 16 (± 10%, max. 75 kV 16 mA,
max. 99 kV 10 mA)
Cooling, high-voltage generator Automatic monitoring
Shut-off at ≥ 60°C
Additional filtering at 50 kV mm Al
in Al
2.0 + 3.0 (autom. added for CBCT)
0.08 + 0.12 (autom. added for CBCT)
Integrated filtering at 50 kV mm Al
in Al
0.8
0.03
Total filtering at 50 kV mm Al
in Al
2.8 + 3.0 (autom. added for CBCT)
0.11 + 0.12 (autom. added for CBCT)
X-ray tube model Toshiba D-052SB
Focal spot size as per IEC 60336 X-ray
tube
mm
in
0.5
0.02
Anode angle ° 5
Anode heat capacity kJ 35
Pulse/break ratio 1:60 or more
Duration of radiation exposure s 0.5 - 20
Maximum current-time product per hour mAs 960 (with 75 kV/16 mA)

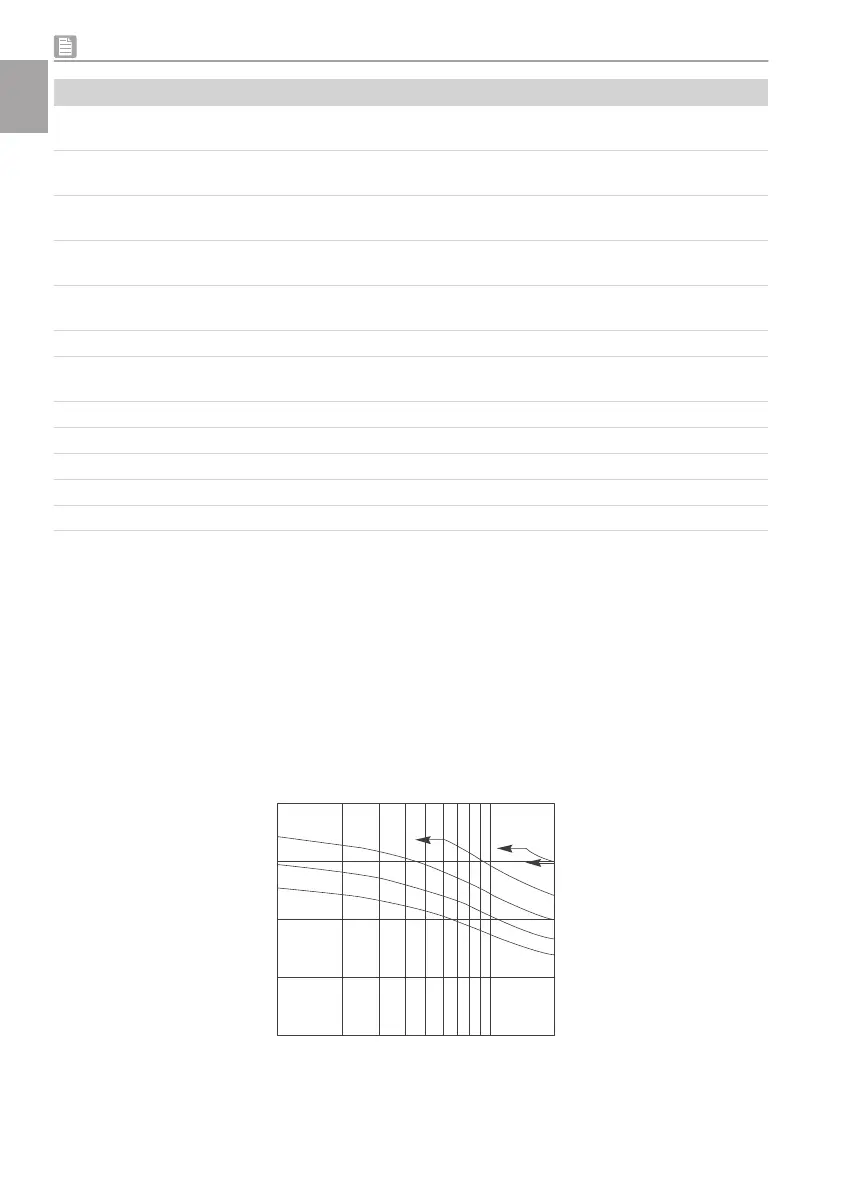

4.1 X-ray tube performance data
– Maximum deviation of the peak voltage from the displayed value ± 10%
– Maximum deviation of the tube current from the displayed value ± 20%
– Maximum deviation of the exposure time from the displayed value ± 10%
– The unit complies with the standards IEC 60601-1, IEC 60601-1-3 and IEC 60601-2-63.
– The lowest possible load factor is obtained with a combination of the settings 60 kV and 4 mA.
1235
5
710
10
20
25
15
20
EXPOSURE TIME [s]
Constant potential high-voltage generator
Nominal Focus Spot Value: 0.5
TUBE CURRENT [mA]
100kV
90kV
80kV
70kV
60kV
50kV
Maximum Rating Charts
DC (Center Grounded)
Product description
12 2210200378L02 1907V009
