Installation Manual
Do Not Use Equipment for Purposes Other Than Those Specied
• Do not use for other than increasing the temperature of the water supply, as unexpected accidents
may occur as a result.
Check Water Supply Quality
• If the water supply is hard, acidic or otherwise impure, treat the water with approved methods in
order to ensure full warranty coverage.
See water quality statement on page 33.
Frost Protection
• When installed, power to the unit must be kept switched on, otherwise the appliance should be
drained.
This prevents water freezing, and causing damage to the water heater.
WARNING
CAUTION
For NG Gas

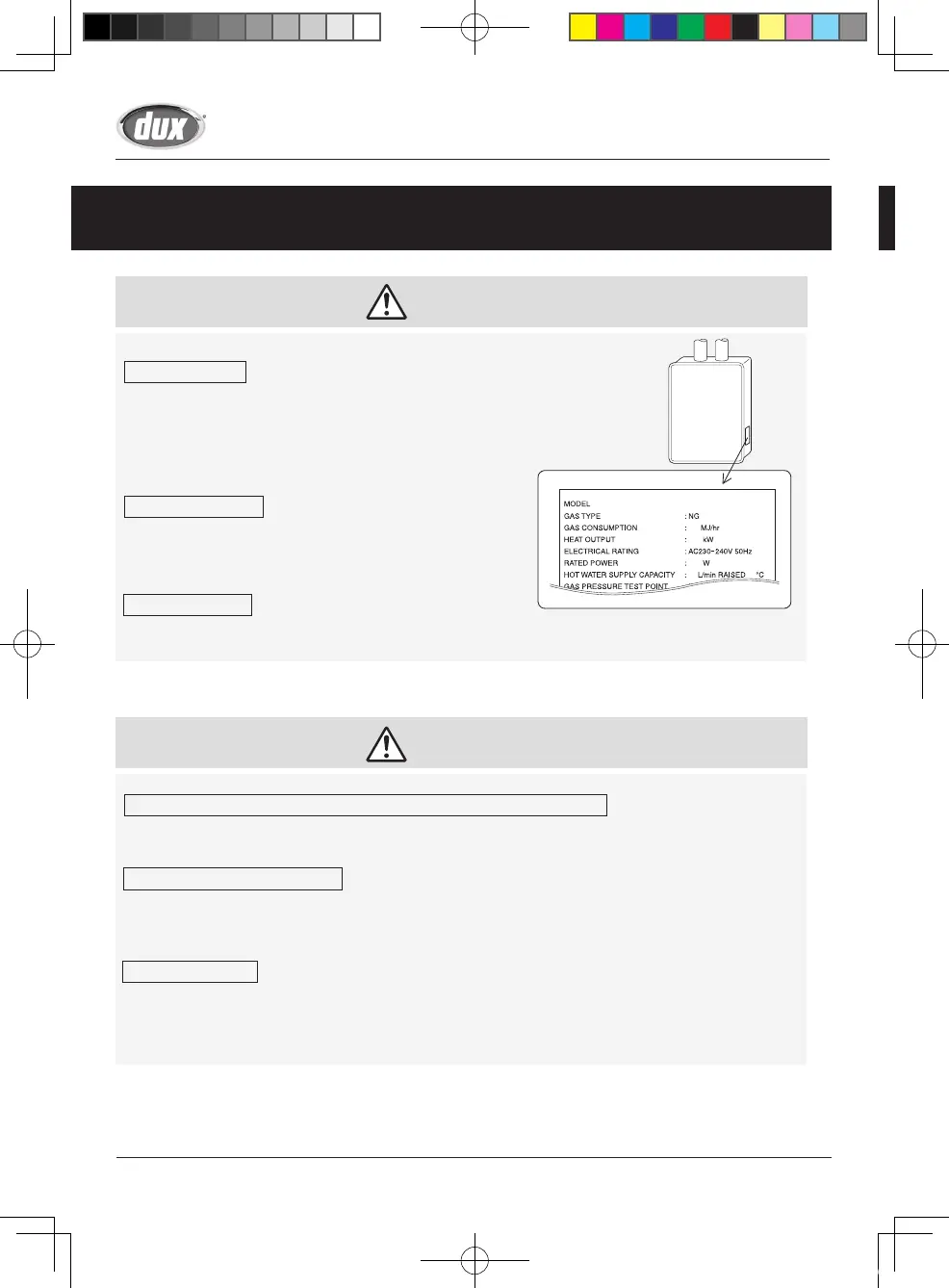

Before Installation
Check the Gas
• Check that the data label (Side of casing).
• Check that the gas supply line is sized for
32FCR6N, 32FCR6L: 217 MJ/hr, 217 MJ/hr
• DO NOT OPERATE WITH ANY OTHER GAS TYPE.
Check the Power
• The power supply required is 230 - 240VAC, at 50Hz.
Using the incorrect voltage may result in fire or
electric shock..
Warning labels
• Located on the side of the casing -PLEASE READ THESE LABELS CAREFULLY!
xx
xxxxxxxx
xx
xx xx
xx
9
Installation Manual
Specifications
Model Name 32FCR6N 32FCR6L
Approval certification number SAI-400264
Type
Installation Indoor, Wall Mounted
Air Supply/Exhaust
Power Flue
Operating Pressure 200 -1,000 kPa
Minimum Flow Rate 2.5 L/min.
Dimensions 615mm (Height) x 464mm (Width) x 240mm (Depth)
Weight 32 kg
Water Holding Capacity 2.0 L
Connection Sizes
Water Inlet R 3/4 (20mm)
Hot Water Outlet R 3/4 (20mm)
Gas Inlet R 3/4 (20mm)
Power Supply
Supply 230 - 240 VAC (50Hz)
Consumption NG/ULPG: 75.9 W/75.9 W Freeze Prevention 223W
Accessories Anchoring Screws, Drain hose (with clamp), Flue Seal
Gas
Consumption
NG 217 MJ/hr
ULPG 217 MJ/hr
Maximum Hot Water
25°C Rise 32 L/min
• These models comply to the relevant clauses in AS4552-2005.
• Specifications may be changed without prior notice.
• The capacity may differ slightly, depending on the water
pressure, water supply, piping conditions, and water temperature.
