Dux sunpro 2F136S - Collector Orientation Compass

Owner’s Manual – Dux Electric Boosted Solar
9
H3161 025248 Rev. D

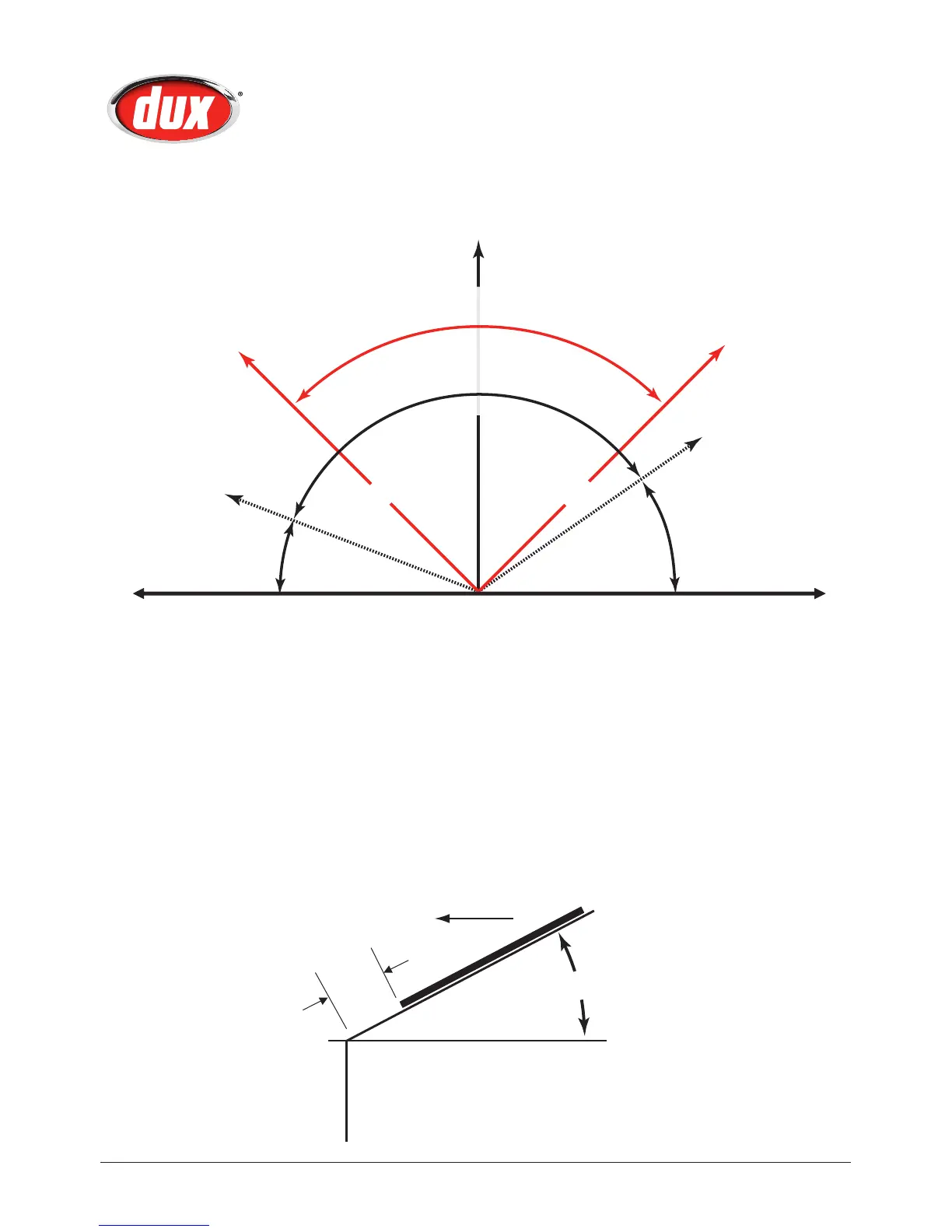

Installation of Collectors
True North
NW NE
Surface Plate
EastWest
45°
50° from
true north
70° from
true north
45°
B
Collector Orientation Compass
True North
A
A = 500mm, or greater if roof allows
B = Between 10° and 45°
B
Note: When establishing the correct Collector Orientation, please account
for the Magnetic Declination of your geographic location
Collector Inclination Guide
C
A
C
A. Dux preferred range
B. Industry accepted range
C. If orientations A or B are not practical, an additional collector can be
installed at the home owner’s discretion in range C (not required north
of Tropic of Capricorn)
