Collector Rail Kit
The Collector Rail Kit that comes
with this water heater is designed
for mounting the collectors to most
common Australian roof types.
All kits consist of specially designed
rails, clamps and bolts etc. that are used
to x the collectors to the roof structure.
With the exception of the copper tube
and roong bolts, these kits contain all
of the plumbing components required
to connect the collectors to the ground
mounted water heater.
Refer to the collector rail kit instructions
located in the rail kit box. The rail kit
instructions can also be obtained from
Dux Service on 1300 365 115.
For installations requiring three
collectors, an additional Collector
Rail Kit is required as an extension to
increase the mounting capacity from
two to three collectors.
Roof Space
It is not advisable to install collectors
on roof spaces that are smaller than
described below:
• 2 collectors: 3m wide × 3m high
• 3 collectors: 4.5m wide × 3m high
Roof areas smaller than these minimum
measurements will make installation and
later service work difcult.
Installation of Collectors

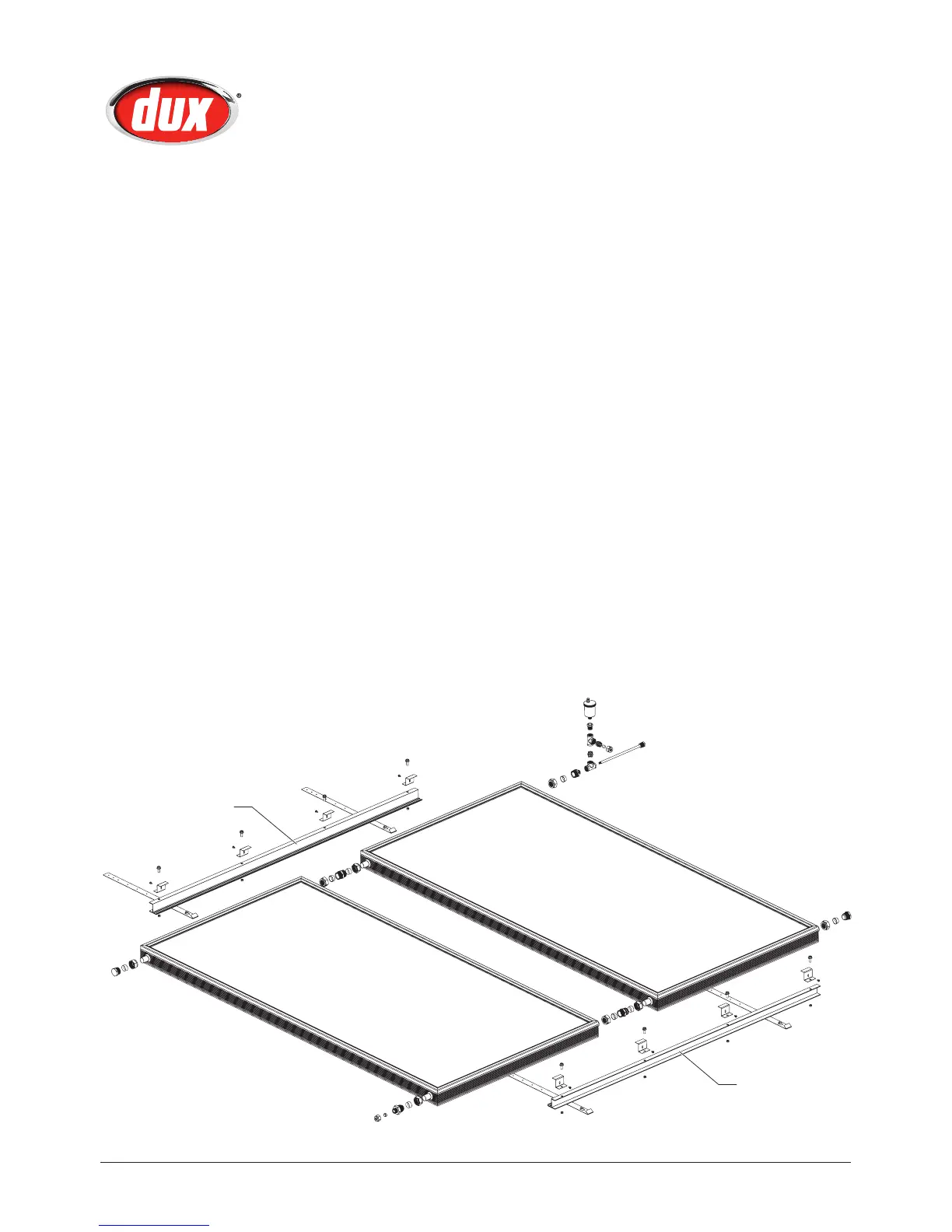

Collector mounting rail
Collector mounting rail
To Next Page
