SDIG
Feb ‘15
- 2 -
Quick Start

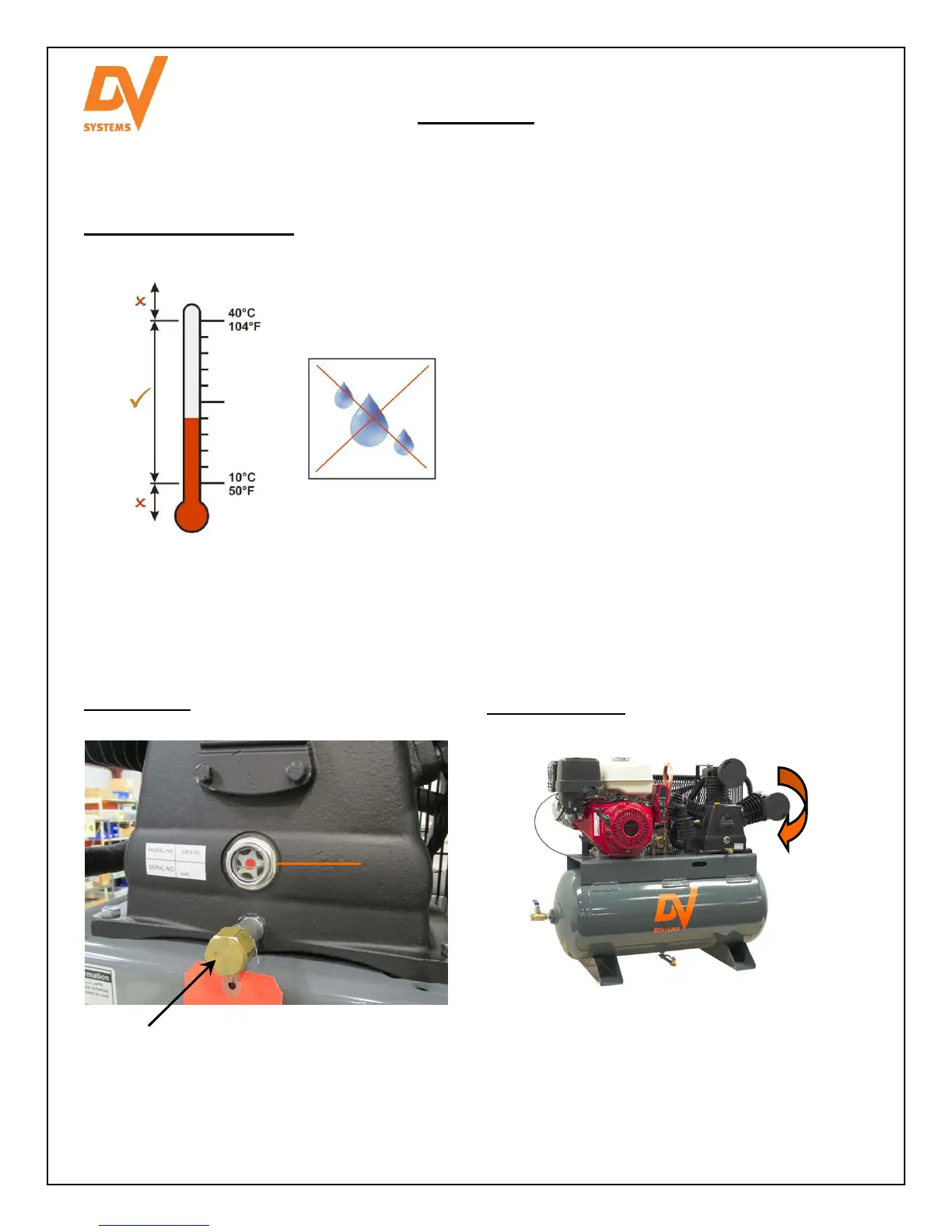

Mechanical Installation.
(Refer to Page 7)
Lubrication.
(Refer to Page 8)
These Units are used in applications where
electrical power is not readily available. The
most popular use of this type of Compressor is
on service trucks, trailers, etc.
As the airflow is from the Beltguard forward
over and around the Pump, ensure that there is
sufficient space behind the Beltguard to allow
cooling of the Unit.
The ambient temperature should be between
10°C and 40°C (50°F and 104°F).
Use of the Unit in temperatures beyond this
range may require changing to a different
grade of oil (20 weight for lower temperatures)
and draining the Tank more frequently.
Ensure that the floor under the Unit is capable
of bearing the weight of the Compressor.
The arrow to the right of
the Pump indicates the
correct rotation of the
Flywheel.
Pump Rotation.
The Unit is shipped with ‘PR-31’ 30
Weight Compressor Oil in the Pump.
Verify the proper level as indicated
above before starting.
Oil Drain
Level
To Next Page
