Compressor Parts

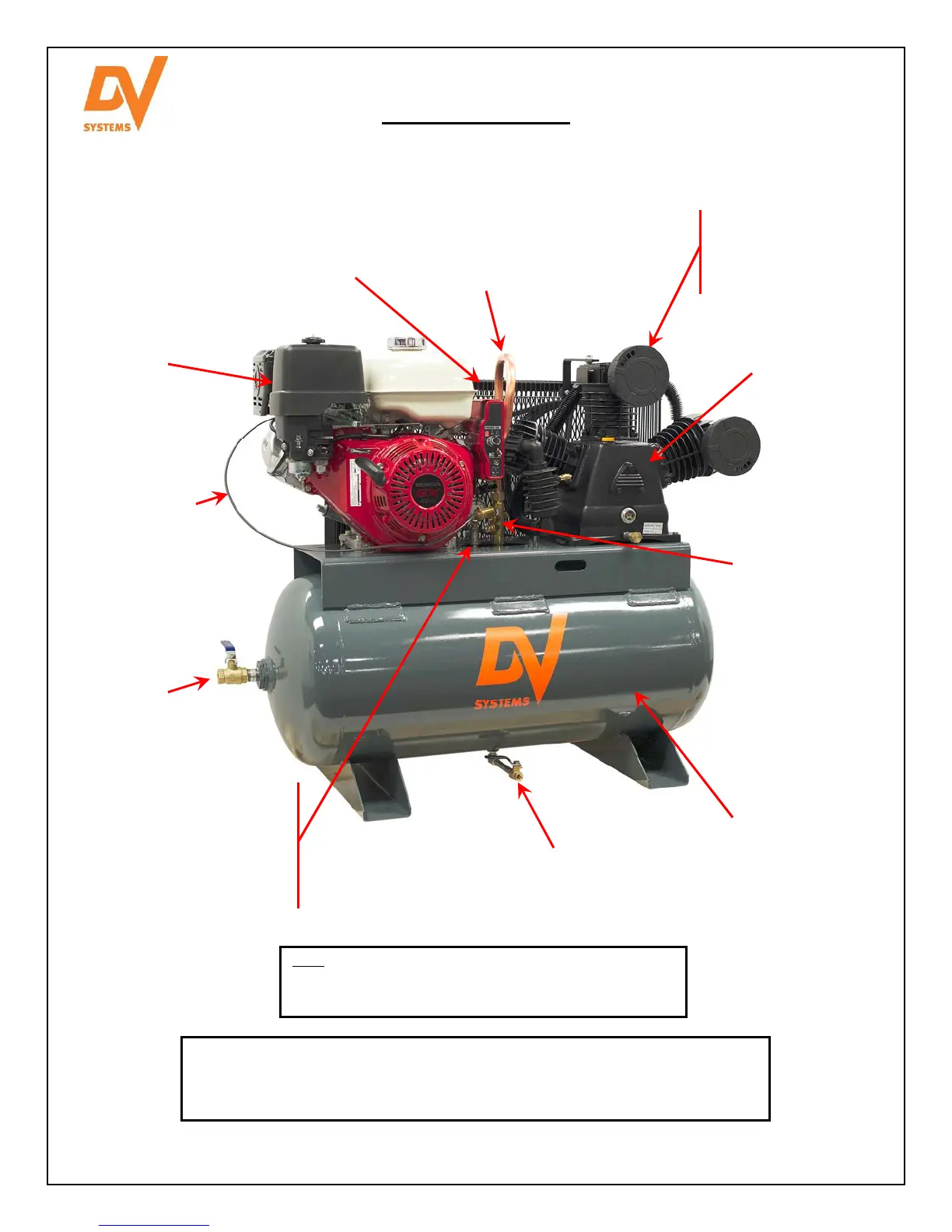

Please refer to the picture below, as it identifies the major components of the ‘IS13-5530’ style Air Compressor
Unit and their function. (Base mounted Units do not have a Tank.)
Compressor Pump
Compresses the air.
Beltguard
Protects personnel from the
moving parts of the Flywheel,
Pulley, and Belts.
Aftercooler Tube
Allows the compressed air
to cool as it transfers from
the Pump to the Tank.
Honda Gas
Engine
Provides power
to turn Pump.
Pressure Gauge
Shows Tank pressure.
TIA-5200
Safety Valve
Protects the Tank if
pressure is too high.
Check Valve / Unloader
1) Allows the compressed air
to enter the Tank, but
prevents it from flowing
back out.
2) Regulates the running of
the Honda Engine.
3) Unloads pressurized air
while Unit is idling.
Air Receiver (Tank)
Stores the compressed air.
Allows the Customer to
drain moisture from the
Tank.
Ball Valve
Discharge/outlet from
Tank.
Pump Components
Please refer to the Compressor Pump Service Bulletin provided with your Unit to
identify the part numbers, location, and quantities for your particular Pump model.
Air Filter Assembly
PB-21177010
Air Filter Element
Throttle Control
Assembly
Regulates running
and idling of
Honda Engine.
Not indicated on the picture above are the following items:
BT-99 Belt
PU-9262 Engine Pulley
To Next Page
