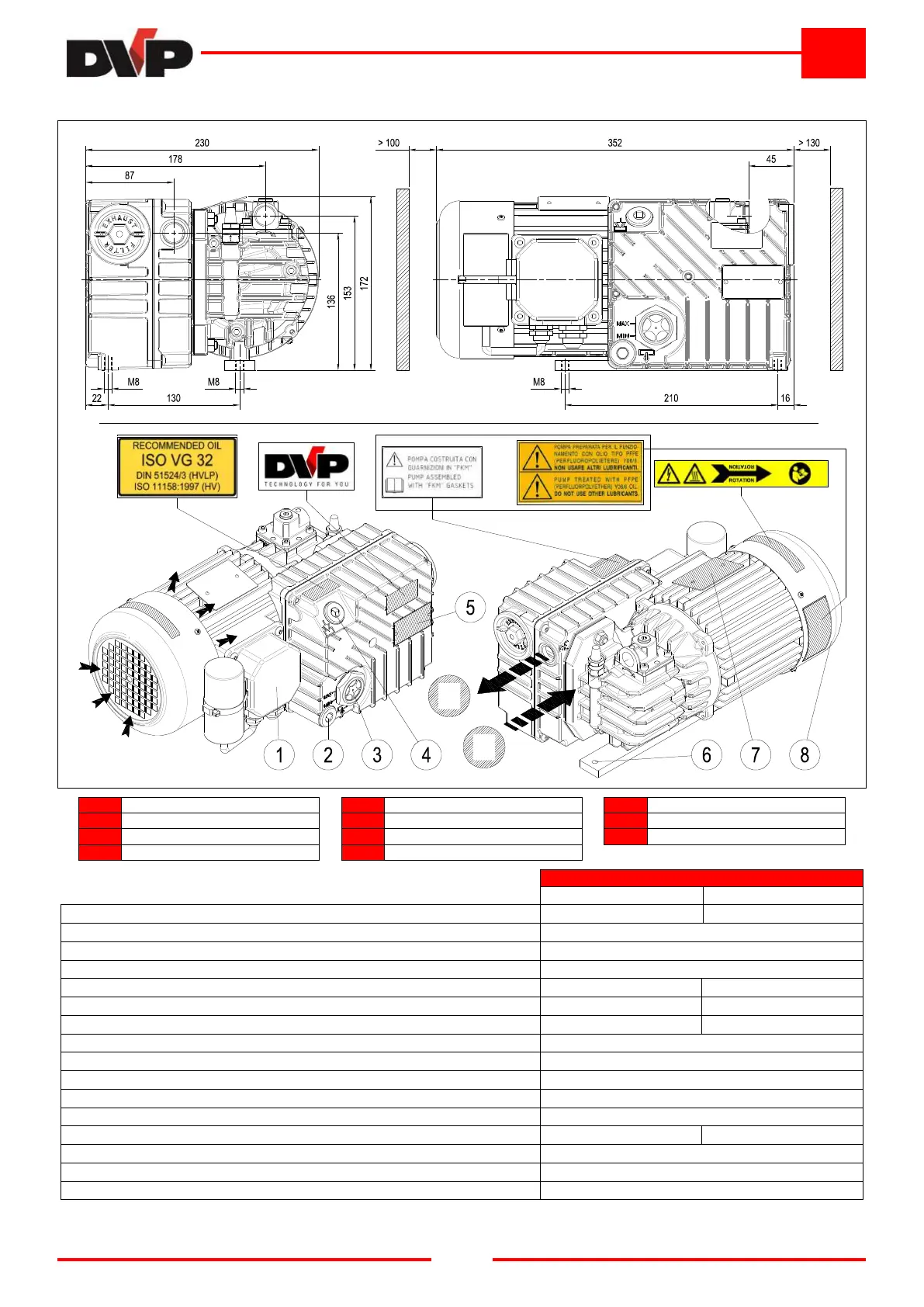

3.3.5 Model: LC.20

B
A
A
Intake
3
Oil sight glass
7
Motor rating plate
B
Air outlet
4
Oil filler plug
8
Motor fun guard
1
Terminal board
5
Information plate

Only present on special versions
2
Oil drain plug
6
Attachment point
TECHNICAL SPECIFICATIONS
LC.20
50 Hz 60 Hz
Inlet capacity m³/h 20 24
Final pressure (Abs.) mbar - hPa 2
Max inlet pressure for water vapour mbar - hPa 15
Max water vapour pumping rate kg/h 0,25
Motor power
kW (1~ / 3~)
0,75 / 0,75 0,90 / 0,90
Nominal r.p.m. n/min 2800 3300
Noise level (UNI EN ISO 2151) (K 3dB) dB(A) 64 67
Weight
kg (1~ / 3~)
19,0 / 17,0
Type of oil cod. DVP BV32 (SW40)
Oil quantity Min÷Max dm³ 0,45 ÷ 0,50
Pump Intake / Outlet “G 1/2
Continuous-duty working renge (Abs.) mbar - hPa 400 ÷ 2
Operating temperature (room temp. 20°C) °C 60 ÷ 65 65 ÷ 70
Required room temp. for place of installation °C 12 ÷ 40
Ambient temperature for storage/transport °C -20 ÷ 50
MAX humidity / altitude 80% / 1000m a.s.l. *
(*) Please contact the Manufacturer if environmental conditions are different from those prescribed.
