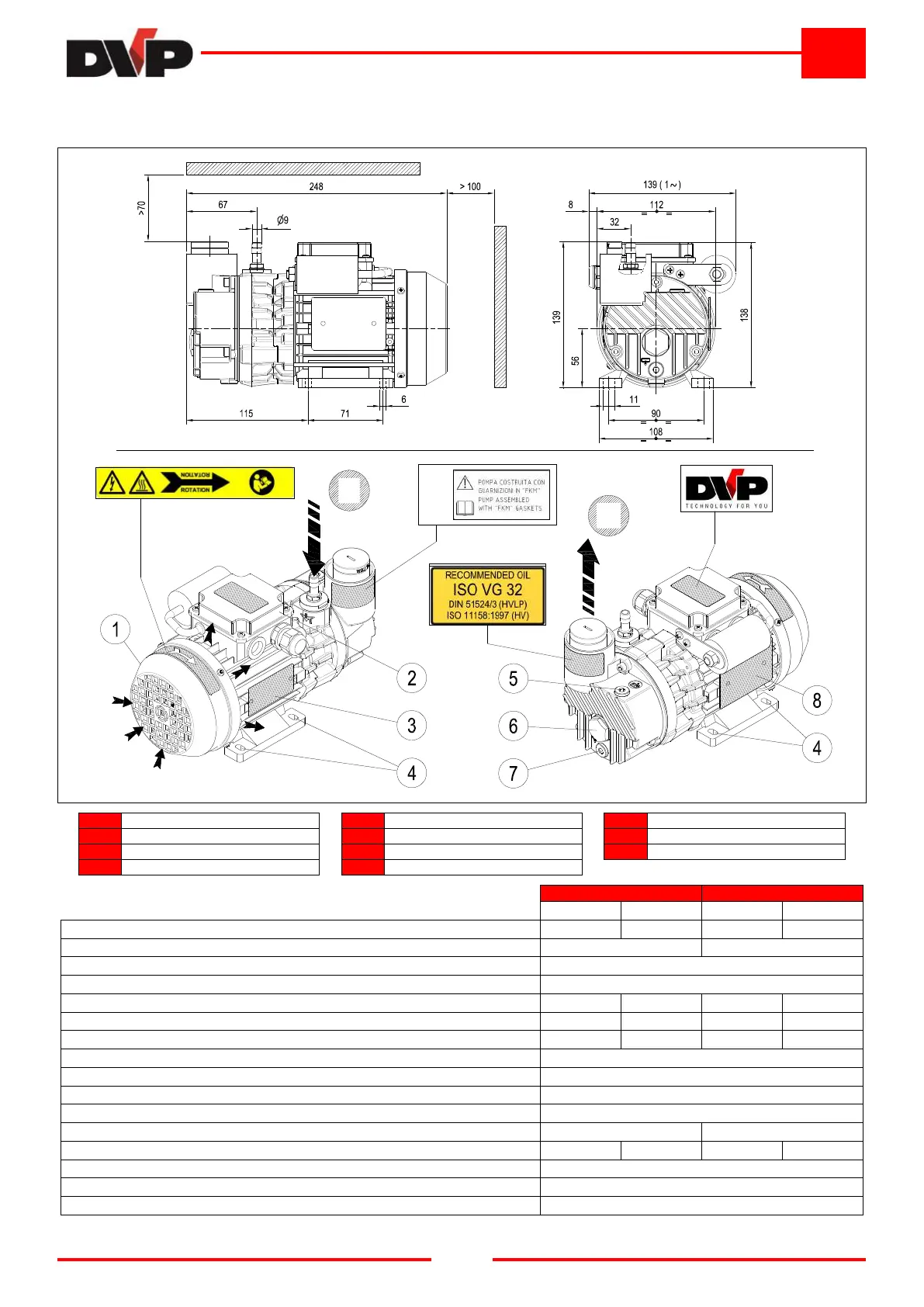

3.3 DIMENSIONS AND CHARACTERISTICS
3.3.1 Model: LC.2 – LC.4
B
A

A
Intake
3
Information plate
7
Oil drain plug
B
Air outlet
4
Attachment point
8
Motor rating plate
1
Motor fun guard
5
Oil filler plug

Only present on special versions
2
Terminal board
6
Oil sight glass
TECHNICAL SPECIFICATIONS
LC.2 LC.4
50 Hz 60 Hz 50 Hz 60 Hz
Inlet capacity m³/h 2 2,5 4 4,8
Final pressure (Abs.) mbar - hPa 10 2
Max inlet pressure for water vapour mbar - hPa - - - -
Max water vapour pumping rate kg/h - - - -
Motor power
kW (1~ / 3~)
0,12 / 0,12 0,15 / 0,15 0,12 / 0,12 0,15 / 0,15
Nominal r.p.m. n/min 2800 3300 2800 3300
Noise level (UNI EN ISO 2151) (K 3dB) dB(A) 48 52 48 52
Weight
kg (1~ / 3~)
5,4 / 5,4
Type of oil cod. DVP BV32 (SW40)
Oil quantity dm³ 0,065
Pump Intake / Outlet Ø9mm (1/8″G) / - - -
Continuous-duty working renge (Abs.) mbar - hPa 500 ÷ 10 - - - -
Operating temperature (room temp. 20°C) °C 50 ÷ 55 55 ÷ 60 50 ÷ 55 55 ÷ 60
Required room temp. for place of installation °C 12 ÷ 40
Ambient temperature for storage/transport °C -20 ÷ 50
MAX humidity / altitude 80% / 1000m a.s.l. *
(*) Please contact the Manufacturer if environmental conditions are different from those prescribed.
