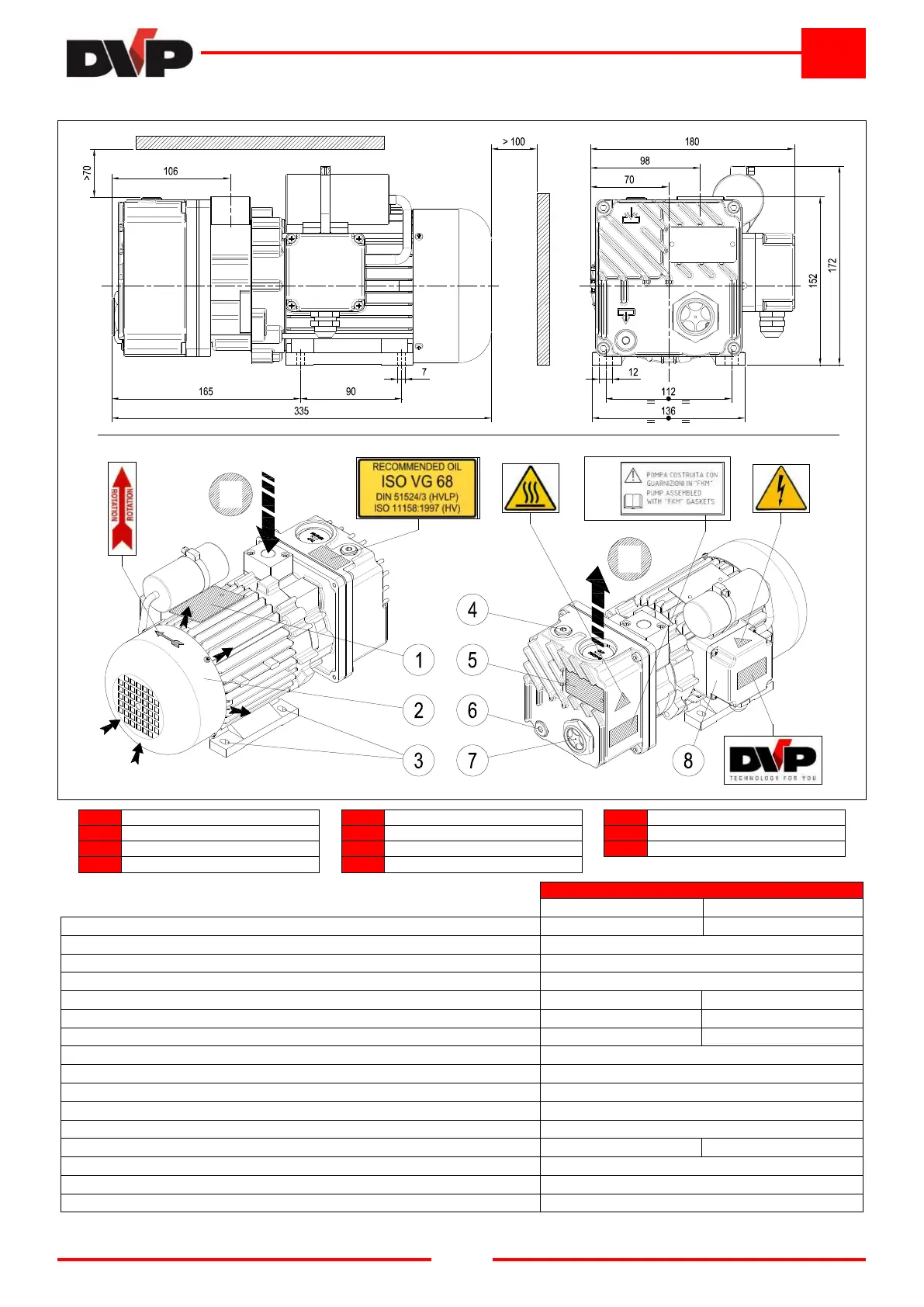

3.3.2 Model: LB.5
B

A
A
Intake
3
Attachment point
7
Oil sight glass
B
Air outlet
4
Oil filler plug
8
Terminal board
1
Motor rating plate
5
Information plate

Only present on special versions
2
Motor fun guard
6
Oil drain plug
TECHNICAL SPECIFICATIONS
LB.5
50 Hz 60 Hz
Inlet capacity m³/h 5 6
Final pressure (Abs.) mbar - hPa 10
Max inlet pressure for water vapour mbar - hPa 30
Max water vapour pumping rate kg/h 0,11
Motor power
kW (1~ / 3~)
0,25 / 0,37 0,25 / 0,45
Nominal r.p.m. n/min 1400 1700
Noise level (UNI EN ISO 2151) (K 3dB) dB(A) 58 60
Weight
kg (1~ / 3~)
13,0 / 11,5
Type of oil cod. DVP BV68 (SW60)
Oil quantity dm³ 0,20
Pump Intake / Outlet “G 3/8
Continuous-duty working renge (Abs.) mbar - hPa 400 ÷ 10
Operating temperature (room temp. 20°C) °C 65 ÷ 70 70 ÷ 75
Required room temp. for place of installation °C 12 ÷ 40
Ambient temperature for storage/transport °C -20 ÷ 50
MAX humidity / altitude 80% / 1000m a.s.l. *
(*) Please contact the Manufacturer if environmental conditions are different from those prescribed.
