Control wiring is as shown.
The wiring terminals for the 32A are compres-
sion type. To open the wiring terminal, turn the
screw for that terminal counterclockwise. Slide
the wire into the terminal space. While holding
the wire in place, turn the screw clockwise to
tighten. Maximum torque is 0.424 N•m (3.75 in
lb). Do not overtighten. The wire should be held
snugly in place.

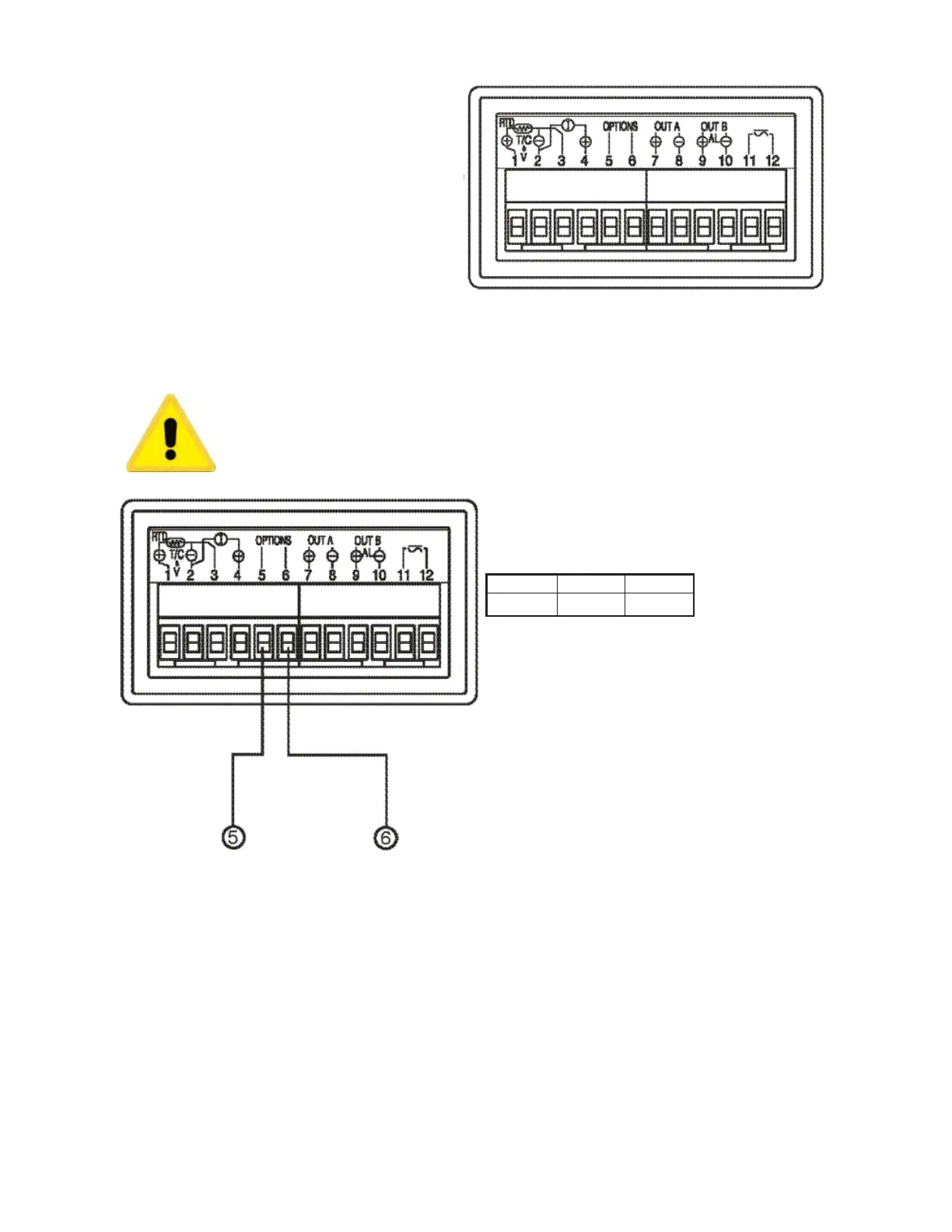

Wiring for Optional Inputs and Outputs
Wire power and outputs as shown on page 5 and 6. Wiring for options is shown below. All wiring shown
below is Class 2. Shielded twisted pair is required for Option 992.
DO NOT RUN SIGNAL WIRING IN THE SAME CONDUIT OR CHASE AS THE
POWER WIRING. ERRATIC OPERATION OR DAMAGE TO THE CONTROL CIR-
CUITRY WILL RESULT.
Note 1: Terminal 5 is line A (-). Terminal 6 is line
B (+). Last control in chain must have 120 ohms
±1% resistor across 5 and 6.
OPTION
992
Term. 5
Note 1
Page 6
Term. 6
Note 1
To Next Page
