Assembly of the 5-BTV Antenna Vertical Sections

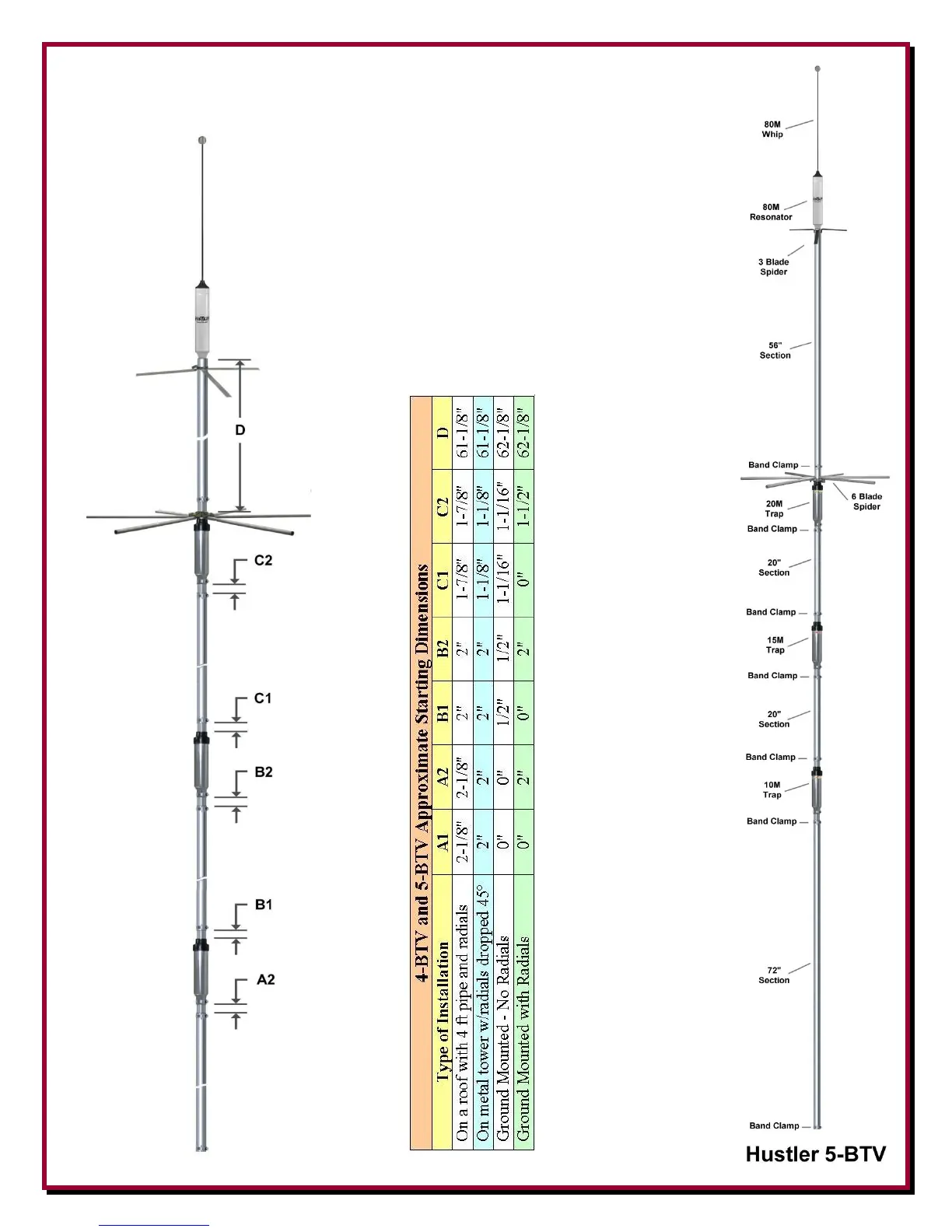

Assemble the 5-BTV as shown in these two pictures.
The dimensions between the aluminum sections
and the traps are shown in the chart below.
The six bladed spider is mounted just above
the 20 Meter trap.
The three blade spider is mounted just below
the 80 Meter resonator.
When completed, go to Page 27.
