Chapter 6 - DX Engineering Enhanced Antenna Systems
Special Hustler
®
BTV Packages Available from DX Engineering
31
Radial Plate to Mounting Pipe
33
Attaching Ground Radial Wires to the Radial Plate
34
DXE-TB-3P Tilt Base Mounting Plate to the Ground Mounting Pipe
35
BTV Antenna Base Section to the DXE-TB-3P Tilt Base
35
Testing the DXE-TB-3P Tilt Base
36
DXE-OMNITILT-1P OMNI-TILT™ Tilt Base
37
Mounting the OMNI-TILT™ Tilt Base to the Ground Mounting Pipe
38
Mounting the Hustler BTV Base to the OMNI-TILT™ Tilt Base
39
Alternate Feedpoint Connections
40
The DXE-VFCC-H05-A Vertical Feedline Current Choke
41
Special Hustler
®
BTV Packages Available from DX Engineering
Hustler
®
4-BTV Package - High Performance HF Vertical System - DXE-HSR-4BTV-P1
For a high performance HF ground mounted vertical system, the DX Engineering Hustler
®
4-BTV
Package provides 40/20/15/10 meter band coverage.
Hustler
®
5-BTV Package - High Performance HF Vertical System - DXE-HSR-5BTV-P1
For a high performance HF ground mounted vertical system, the DX Engineering Hustler
®
5-BTV
Package provides 80-75/40/20/15/10 meter band coverage.
Hustler
®
6-BTV Package - High Performance HF Vertical System - DXE-HSR-6BTV-P1
For a high performance HF ground mounted vertical system, the DX Engineering Hustler
®
6-BTV
Package provides 80-75/40/30/20/15/10 meter band coverage.
Dramatically improved transmit and receive signals
o Best pattern and excellent RF connections
o Safe and easy tuning using our patented Tilt Base so one
person can walk the antenna up or down
o Performance boosting, organized radial wire attachment system
o Easy handling 14 gauge insulated radial wire, ring terminal
crimp lugs and lawn staples

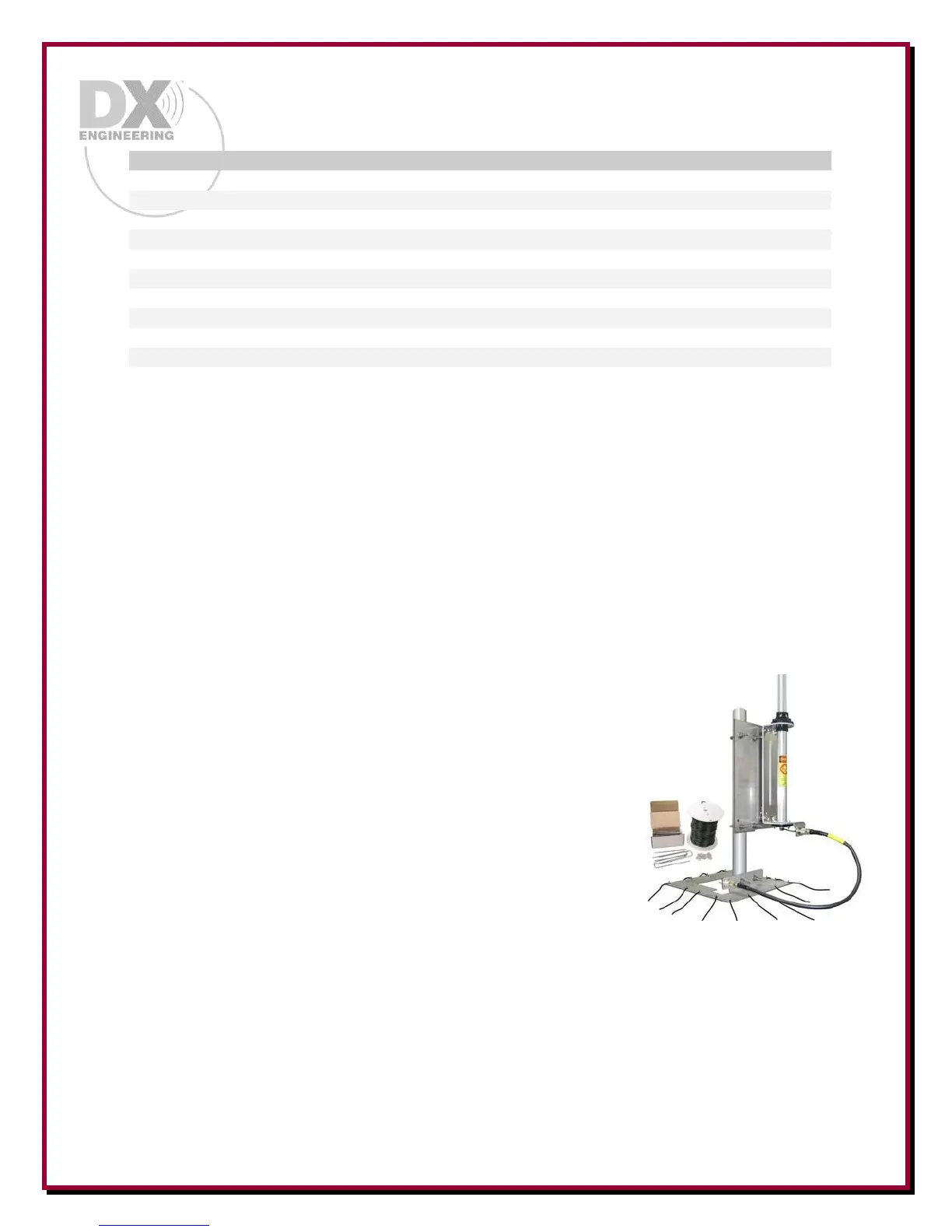

The DX Engineering Hustler
®
BTV Package includes the essentials of
a high performance antenna system:
 (1) HSR-BTV – Hustler
®
Multi-Band Trap Vertical Antenna
 (1) DXE-TB-3P - Patented Tilt Base for Hustler
®
BTV
Antennas
 (1) DXE-RADP-3 - Patented Radial Plate, Stainless Steel & 20 Sets of SS Attachment
Hardware
 (1) DXE-AOK-DCF - Direct Coax Feed (DFC) SO-239 for Hustler
®
BTV Verticals
 (1) DXE-8UDU002 - Low Loss RG-8/U Coax Cable PL-259s, 2 ft., DCF to Bulkhead
 (1) DXE-UHF-FDFB-KIT - SecureMount
™
Bulkhead Fitting, SO-239 Socket, Silver
Plating, PTFE Insulation, includes stainless steel mounting hardware
 (1) DXE-RADW-500K - Bulk Radial Wire Kit, 500 ft. Wire, 20 Ring Terminals (DXE-
225RT-20) and 100 Lawn Staples (DXE-STPL-100)
 (3) DXE-SSVC-2P – Stainless Steel V-Clamp, 1 to 2 inch OD for Radial Plate and Tilt Base
