Alternate Optional Feedpoint Connections
The DXE-AOK-DCF Direct Coax Feed assembly by DX Engineering for the Hustler® BTV
series antennas allows direct connection from a coaxial cable with a PL-259 connector.
Features
Laser Cut Stainless Steel Bracket and Stainless Steel Hardware
High Quality SO-239, PTFE insulation, 14 gage copper insulated
wire link with weather sealed connections pre-installed
Provides a positive coaxial connection to the antenna system,
rated at 1500+ watts
Can be positioned in three configurations
Custom Manufactured for the Hustler
®
BTV series antennas
Allows easy removal of coaxial cable for maintenance

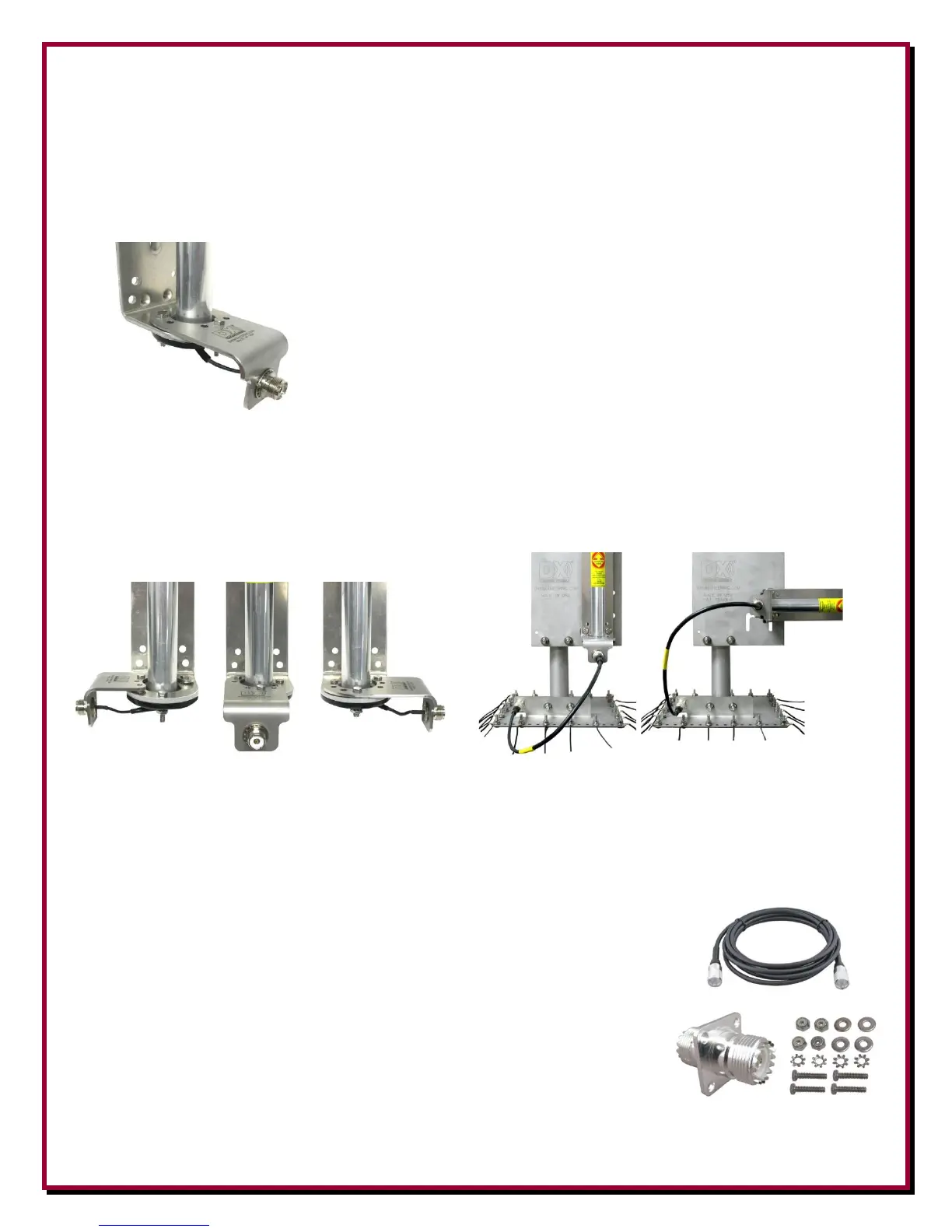

Depending on your antenna configuration, you may install the DXE-AOK-DCF in one of three
ways. The direction of the SO-239 will depend on your particular installation set up. Ensure the
direction chosen allows the coaxial cable to be properly connected. When the DXE-TB-3P Tilt
Base for Hustler
®
BTV Antennas is being used, allow clearance for the coaxial cable when tilting.
Upright Position Tilted Position
Three Mounting Possibilities Suggested orientation using Tilt Plate & Radial Plate
Radial Plate, Tilt Base & Coaxial Cable are optional
The instructions included with the DXE-AOK-DCF SO-239 Add On Kit contains detailed
installation instructions.
You will also need the DXE-8UDU002 24 Inch RG-8 Foam Coax Cable or
Assembly or DXE-8XDU002 24 Inch RG-8X Foam Coax Cable
Assembly and a DXE-UHF-FDFB-KIT SecureMount™ Bulkhead
Fitting, SO-239 Socket, Silver Plating, PTFE Insulation to connect to the
Radial Plate.
