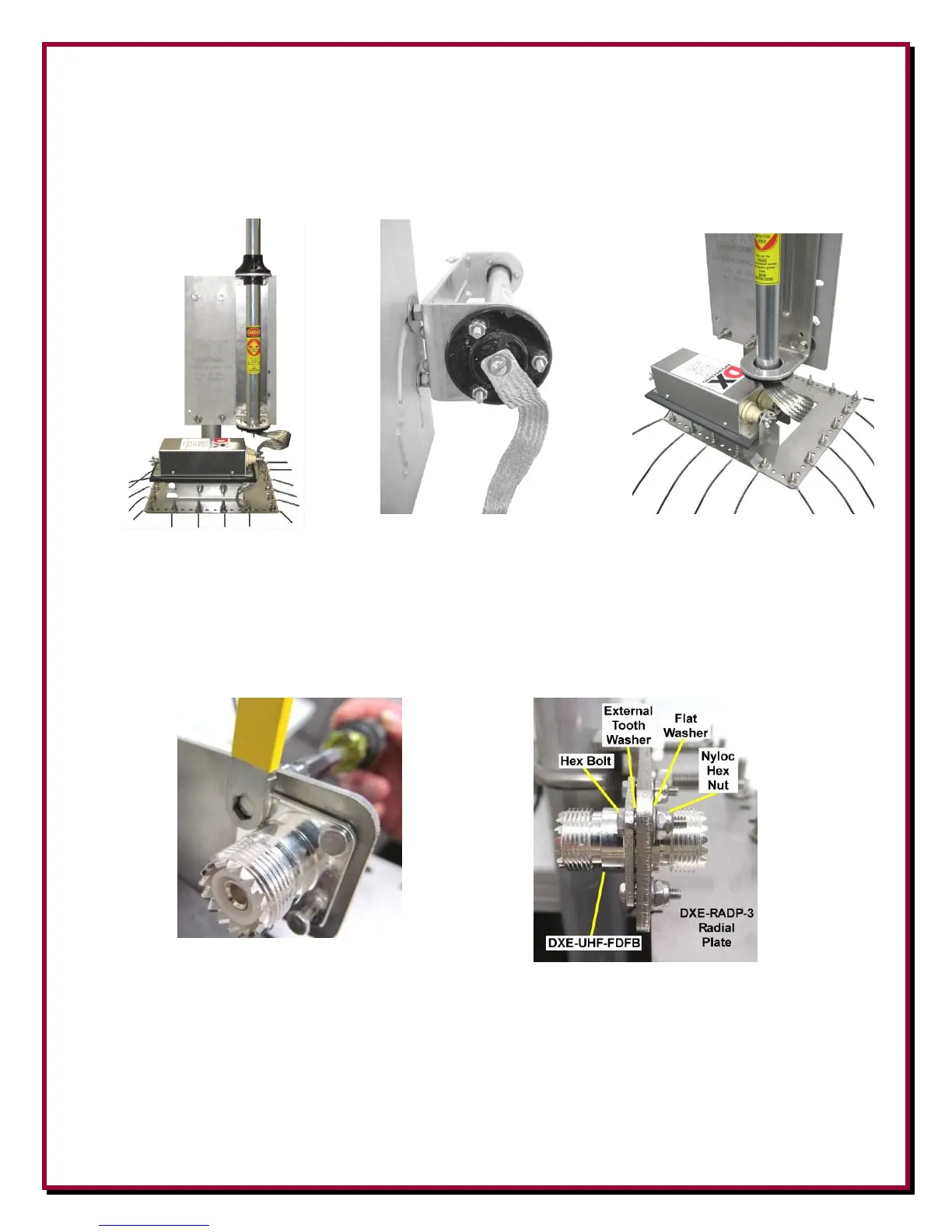

Using the two tinned copper braids supplied with the optional DXE-VFCC-H05-A Vertical
Feedline Choke, connect them as shown in the VFCC manual as well as being shown below to the
Radial Plate and the antenna feedpoint. Make sure the proper braid is connected to the feedpoint
(refer to the VFCC manual for details). Ensure the tinned copper braid is not shorting out and the tilt
action works correctly.
The optional DXE-UHF-FDFB-KIT can be used to make the connection through the optional
DXE-RADP-3 Radial Plate. Seal all of the coaxial cable connections with 3M Temflex
™
(TES-
2155) covered with Scotch
®
33+ (TES-06132) tape weatherproofing supplies to ensure no moisture
can enter the coaxial cable.
