Dymax ECE Series UV Flood-Lamp Systems User Guide

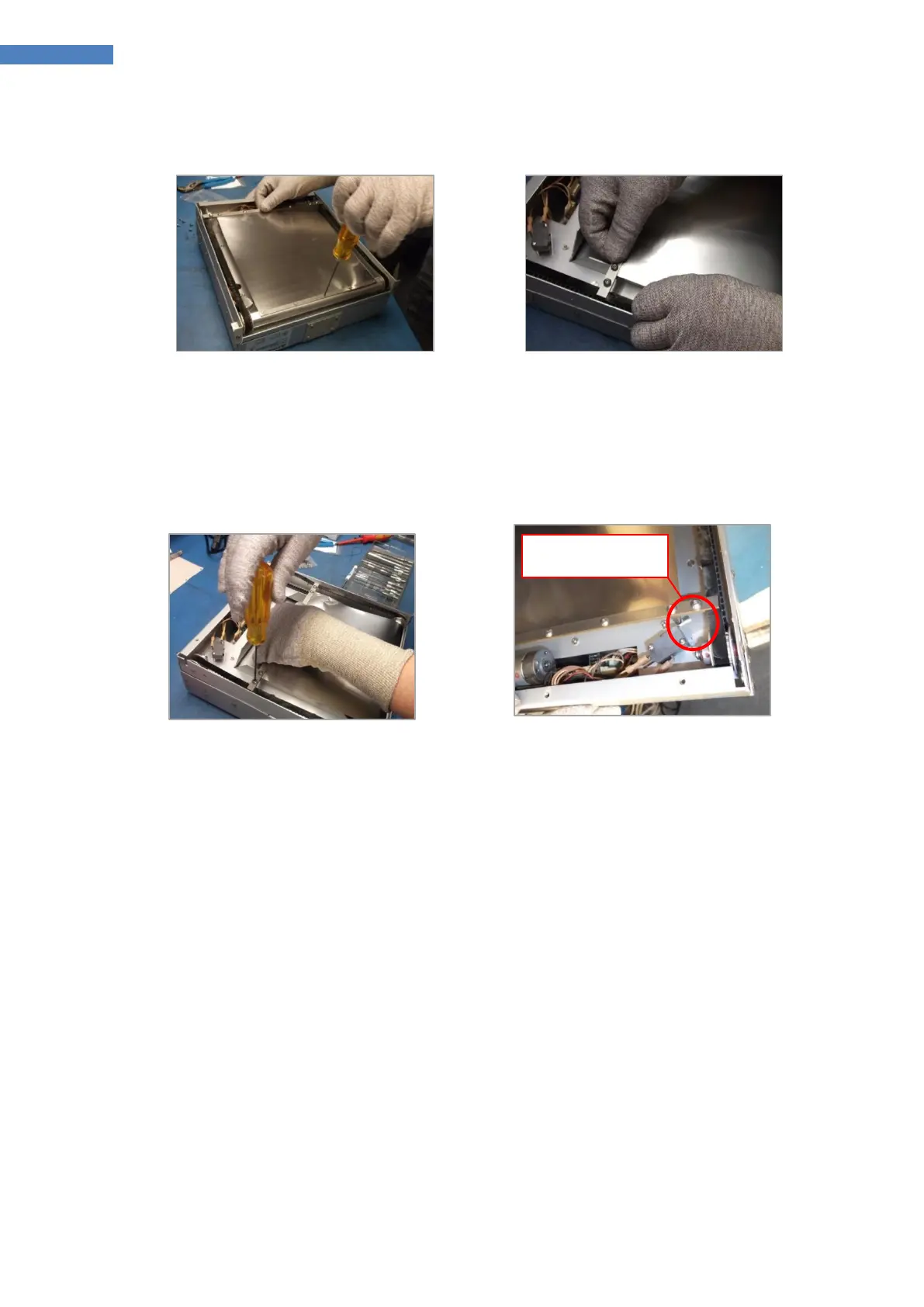

Figure 28. Install Curtain to Roller Bar
with five Retaining Screws
Figure 29. Slide the Clamp Bar onto the
Belt
8. Tighten the both M4 x 6 mm End Screws (Figure 30).
9. Manually roll-up the Curtain until it reaches the Rear Limit Switch (Figure 31). If the Clamp Bar bows,
loosen the screws and allow the Clamp Bar to find its natural straightness and retighten.
Figure 30. Tighten the M4 x 6 mm End
Screws
Figure 31. Rear Limit Switch
10. If changing a Kevlar Curtain to a Stainless Steel Curtain, the following steps are needed to install the
wear strips. If you are changing out a Stainless Steel Curtain, proceed to step 17. The Wear Strips
should already be installed.
11. Locate the roller-end of the Bottom Housing Plate. It contains the square notch and two location
holes (Figure 32).
Place the Protective Wear Strip onto the Bottom Housing Plate (Figure 33). Use a marker to mark the
location of the two holes.
NOTE: Slots located on Black Protective Wear Strip.
Coupling Nut reaches
the Limit Switch
