9
ASSEMBLY INSTRUCTIONS

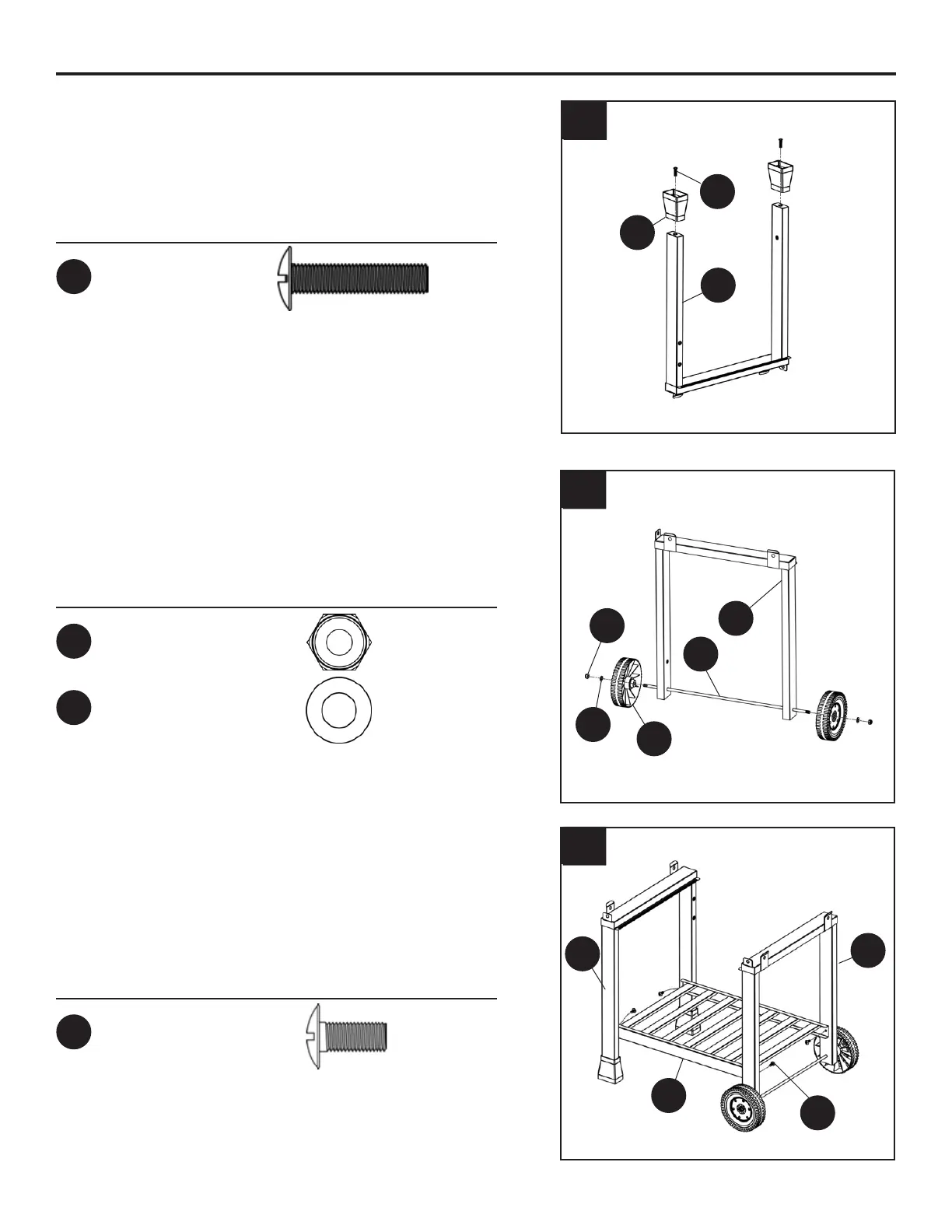

11. Insert axle (P) into right leg assembly (T).
Attach one wheel (Q) to each side of axle (P)
using one M8 washer (FF), and one M8 nut (DD).
Hardware Used
M8 Washer
M8 Nut
x 2
x 2
FF
DD
10. Attach two leg base (S) to left leg assembly (R)
using two M6x30 screw (CC).
Hardware Used
M6x30 Screw
x 2
CC
12. Attach cart base (U) to left leg assembly (R) and
right leg assembly (T) using two M6x15 screw (AA)
on each side.
CC
FF
S
T
DD
R
AA
U
T
Q
P
12
11
10
R
Hardware Used
M6x15 Screw
x 4
AA
To Next Page
