ASSEMBLY INSTRUCTIONS

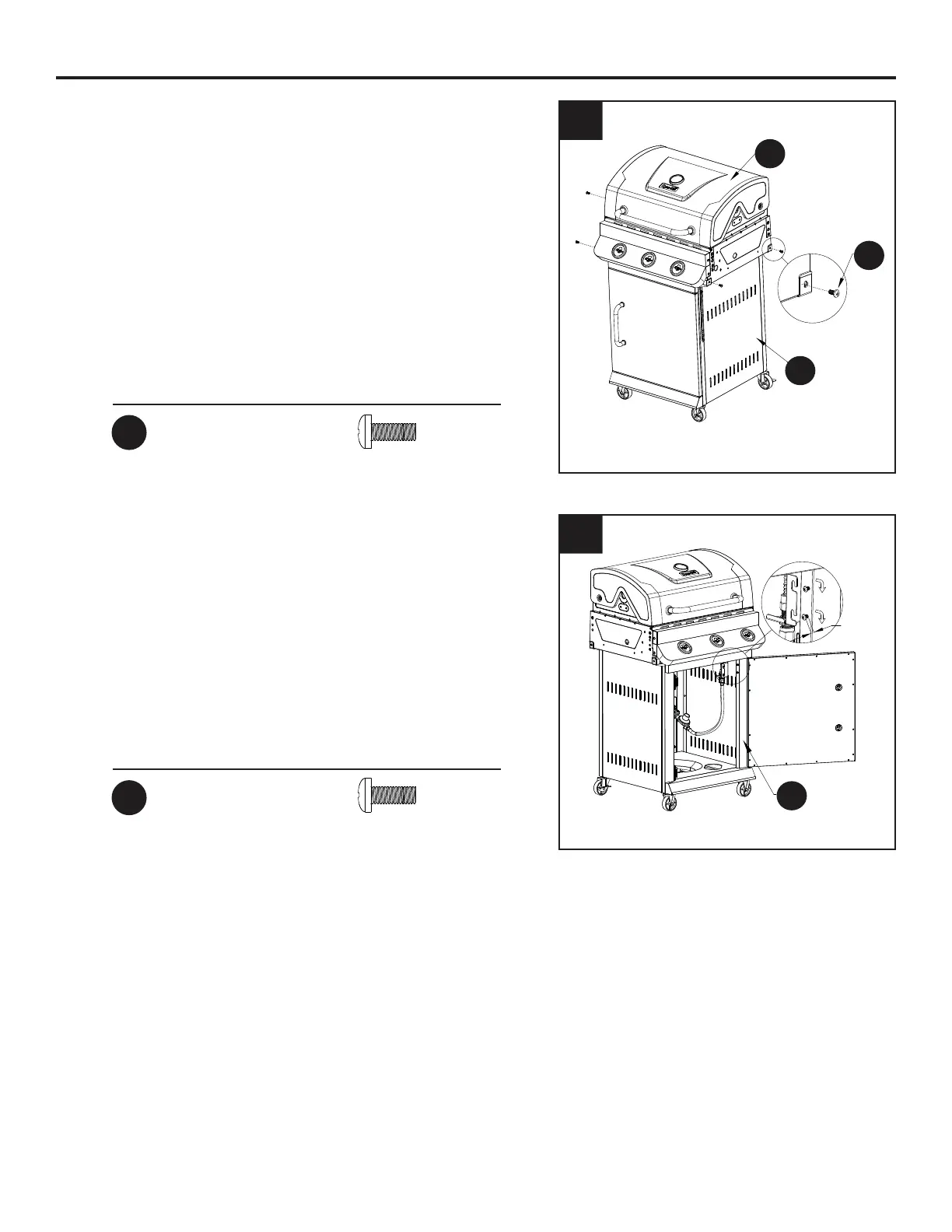

11. Carefully place the grill body (C) onto cart left
side panel assembly (L) and cart right side
panel assembly (G). Adjust the grill body (C) so
that the holes in the grill body (C) are aligned
with holes in the tabs of cart left side panel as-
sembly (L) and cart right side panel assembly
(G).
Note: Make sure the gas hose/regulator
assembly is inside the cart. Secure the grill
body (C) with four M6X16 bolts (AA).
11
12. Pre-assemble two M6x16 bolts (AA) onto the
cart right side panel assembly (G) and do not
tighten them. Make sure to leave a 5mm gap
between the bolt and the panel. Then hang the
regulator assembly bracket onto the bolts and
tighten the two bolts.
12
Hardware Used
Hardware Used
AA
AA
M6x16 Bolt
M6x16 Bolt
x 4
x 2
AA
C
G
G
