Page 10 of 12
4. Black wire from the green-black pair to the ground lug of the white RCA jack.
If you’d like, you can now fold the wire ends over, converting the L-shape to a U-shape.
Either way, it’s time to solder the 4 connections to the jacks.

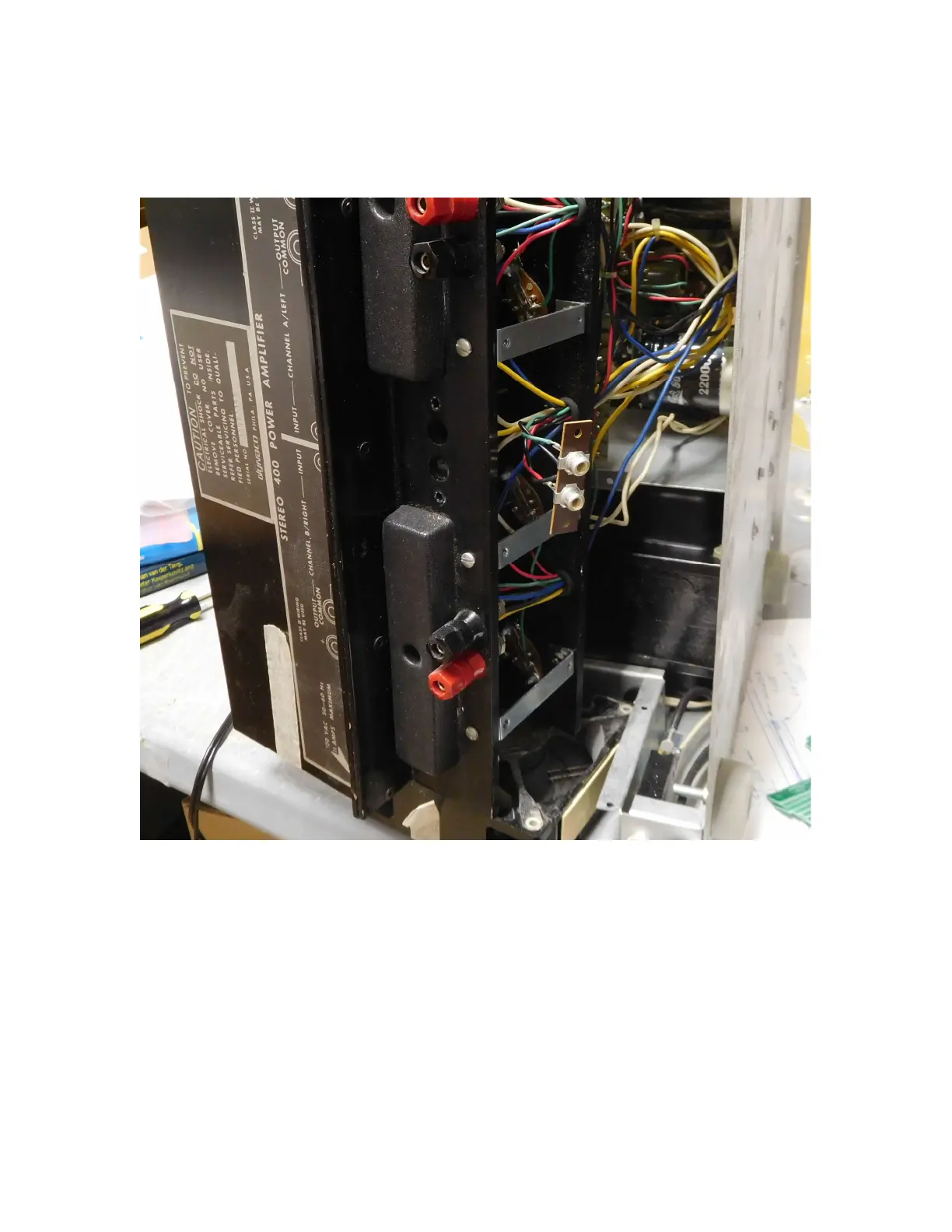

Figure 9-Back is rotated away from the chassis
Figure 9-Back is rotated away from the chassis
