8. PARAMETERS
Depending on its configuration and operation mode, the DSP 244 offers a selection of more or less different
parameters. The parameters are assigned to the input channels IN1, IN2, IN1+2 and to the 4 output
channels OUT1, OUT2, OUT3, OUT4. The channel number is indicated in the top left corner of the display
while the function block (MASTER EQ, MASTER DELAY, CHANNEL EQ, etc.) is shown next to the
channel number.
The corresponding parameters appear in the second and third line of the display. A typical “parameter

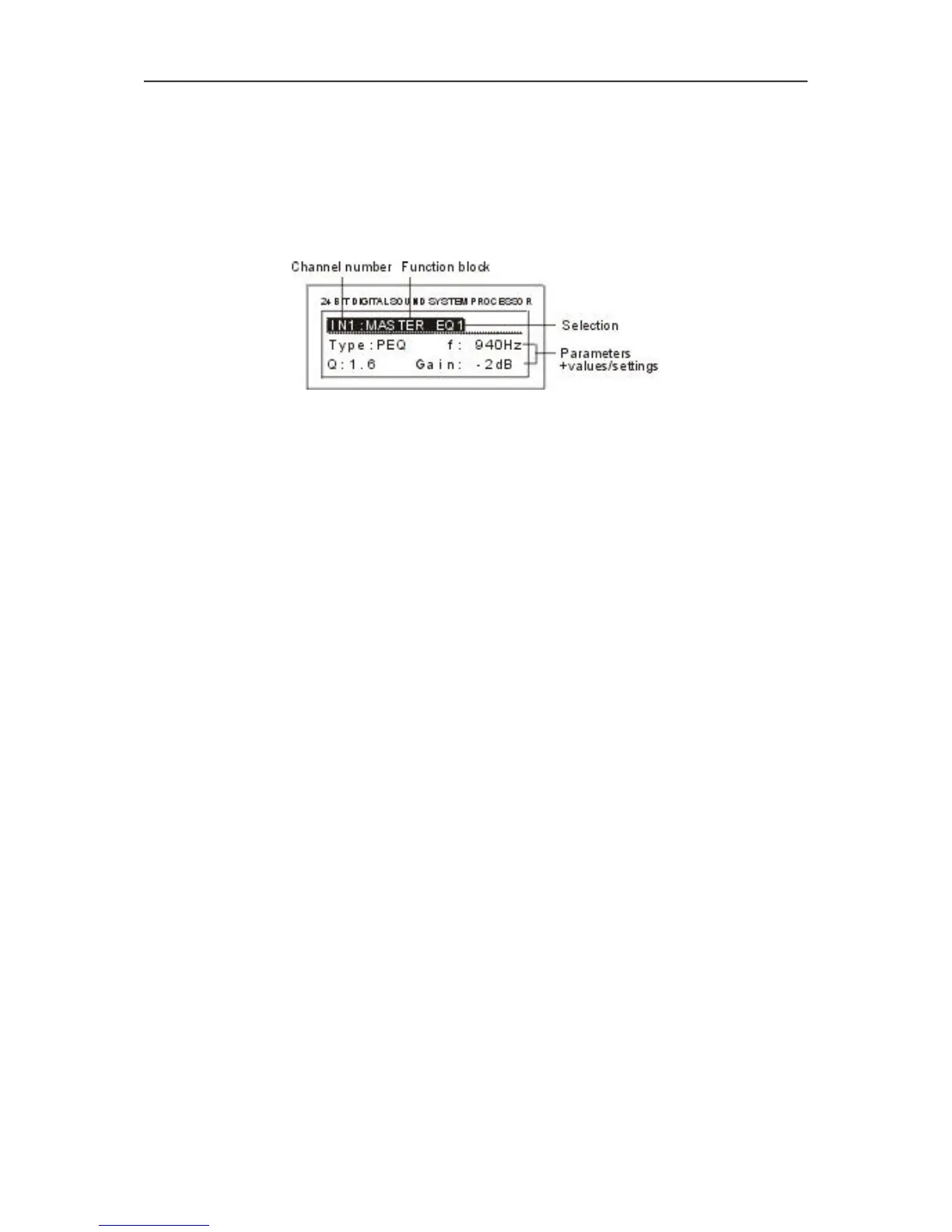

display” looks like this:
The function blocks are arranged in the following sequence:
All parameters, their adjustment ranges, and all additional information about use and effect of the different
functions are explained in detail in the following chapters.
IN1: MASTER EQ1
IN1: MASTER EQ2
IN1: MASTER EQ3
IN1: MASTER EQ4
IN1: MASTER EQ5
IN1: MASTER DELAY
IN2: MASTER EQ1
IN2: MASTER EQ2
IN2: MASTER EQ3
IN2: MASTER EQ4
IN2: MASTER EQ5
IN2: MASTER DELAY
IN1+2: MASTER DELAY
OUT1: ROUTING
OUT1: CHANNEL EQ1
OUT1: CHANNEL EQ2
OUT1: CHANNEL EQ3
OUT1: CHANNEL EQ4
OUT1: HIPASS XOVER
OUT1: LOPASS XOVER
OUT1: CHANNEL DELAY
OUT1: COMPRESSOR
OUT1: LIMITER
OUT1: LEVEL
OUT3: ROUTING
OUT3: CHANNEL EQ1
OUT3: CHANNEL EQ2
OUT3: CHANNEL EQ3
OUT3: CHANNEL EQ4
OUT3: HIPASS XOVER
OUT3: LOPASS XOVER
OUT3: CHANNEL DELAY
OUT3: COMPRESSOR
OUT3: LIMITER
OUT3: LEVEL
OUT2: ROUTING
OUT2: CHANNEL EQ1
OUT2: CHANNEL EQ2
OUT2: CHANNEL EQ3
OUT2: CHANNEL EQ4
OUT2: HIPASS XOVER
OUT2: LOPASS XOVER
OUT2: CHANNEL DELAY
OUT2: COMPRESSOR
OUT2: LIMITER
OUT2: LEVEL
OUT4: ROUTING
OUT4: CHANNEL EQ1
OUT4: CHANNEL EQ2
OUT4: CHANNEL EQ3
OUT4: CHANNEL EQ4
OUT4: HIPASS XOVER
OUT4: LOPASS XOVER
OUT4: CHANNEL DELAY
OUT4: COMPRESSOR
OUT4: LIMITER
OUT4: LEVEL
PARAMETERS
8-1
